Yamaha F100A - Lower Unit Exploded Diagram

6-1
E
LOWR

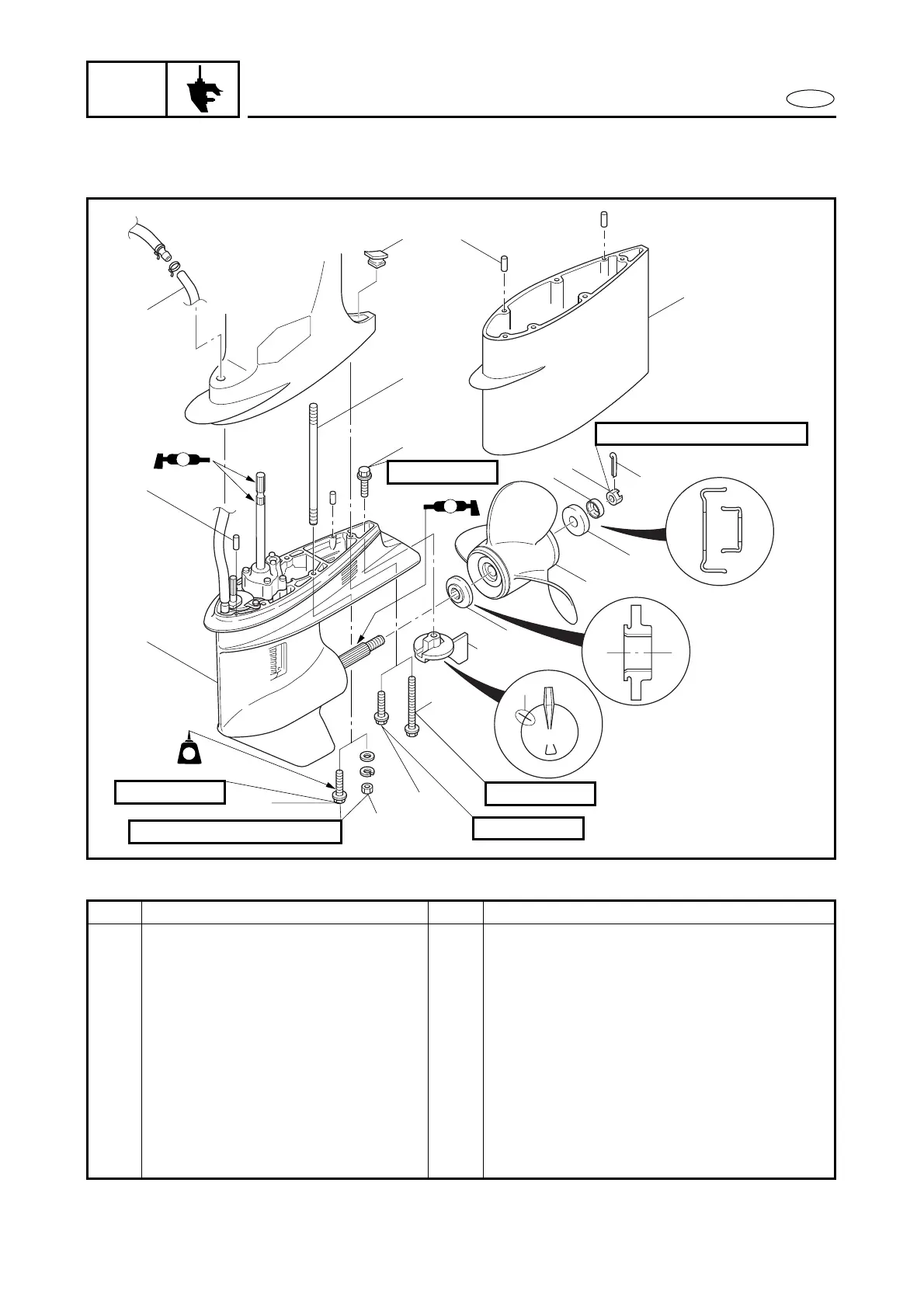

LOWER UNIT
EXPLODED DIAGRAM
1
2
3
4
5
6
7
8
9
10 Ò
10 ≈
Ò 11
11 ≈
12
15
13
14 ≈
16 ≈
15 ≈
8 × 60 mm
8 × 190 mm
8 × 60 mm
40 Nm (4.0 m
•
kg, 29 ft
•
Ib)
35 Nm (3.5 m
•
kg, 25 ft
•
Ib)
A
A
10 × 40 mm
LT
LT
572
a
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
LOWER UNIT REMOVAL Follow the left “Step” for removal.
1 Cotter pin 1
2 Propeller nut 1
3 Spacer 1
4 Washer 1
5 Propeller 1
6 Thrust washer 1
7 Cap 1
8 Bolt 1
9 Trim tab 1 Mark the original position a for proper
installation.
LOWER UNIT
