Yamaha F100A - Ignition Coils and Starter Motor Exploded Diagram; Removal and Installation Chart

5-15
E
POWR

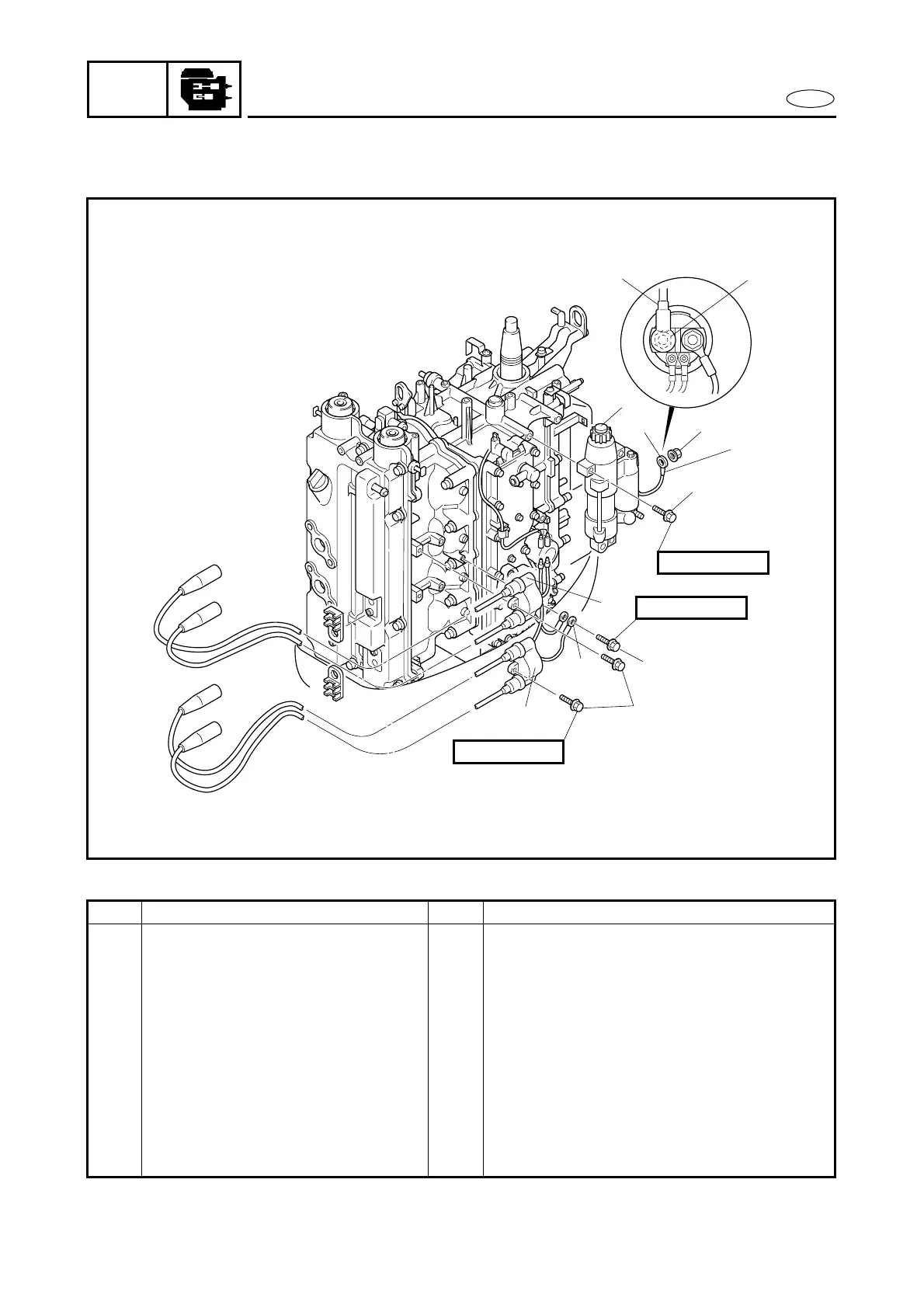

IGNITION COILS AND STARTER MOTOR
IGNITION COILS AND STARTER MOTOR
EXPLODED DIAGRAM
B/W
1
3
7
B/W
5
8
5
6
6
4
2
4
6 × 30 mm
6 × 20 mm
8 × 45 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
IGNITION COILS AND STARTER
MOTOR REMOVAL
Follow the left “Step” for removal.
1 Bolt 1
2 Ground lead 2
3 Bolt 4
4 Ignition coil 2
5 Nut 1
6 Relay (magnetic switch) lead 1
7 Bolt 3
8 Starter motor 1
Reverse the removal steps for installation.
