Yamaha F100A - Removal and Installation Chart; Shift Rod Exploded Diagram

6-7
E
LOWR

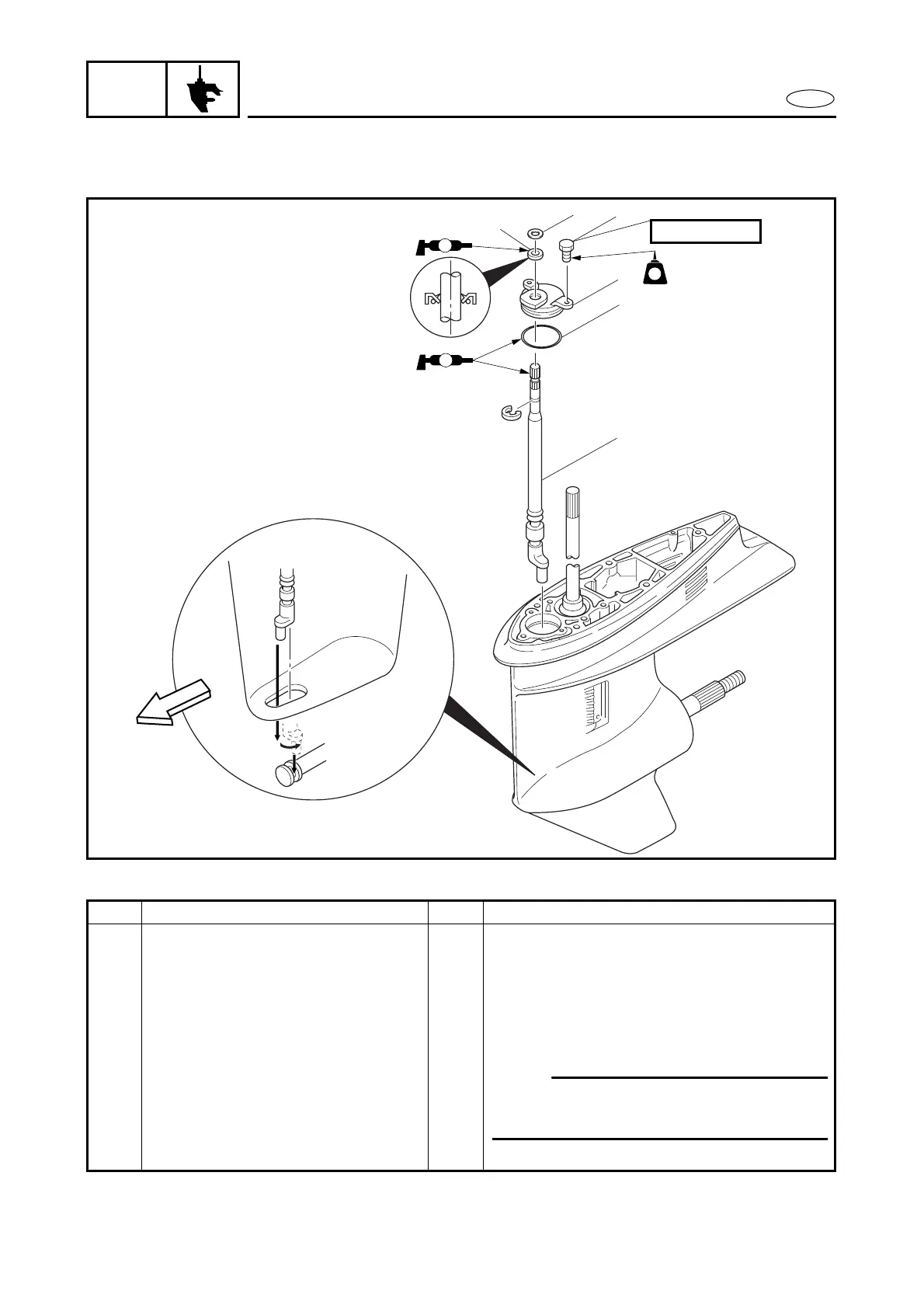

SHIFT ROD
SHIFT ROD
EXPLODED DIAGRAM
FWD
1
2
6
3
5
A
A
6 × 16 mm
LT
LT
572
4
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
SHIFT ROD REMOVAL Follow the left “Step” for removal.
1 O-ring 1
2 Bolt 2
3 Plate 1
4 Oil seal 1
5 O-ring 1
6 Shift rod 1
Reverse the removal steps for installation.
NOTE:
Install the shift rod when the shift slide is
in the neutral position.
