Yamaha F100A - Cylinder End Screw Inspection; Tilt Rod Assy. and Inner Cylinder Removal

7-27
E
BRKT
TILT ROD ASSY.
SERVICE POINTS
WARNING
● To prevent the PTT fluid from spurting
out due to internal pressure, the outboard
should be kept fully tilted up (the tilt rod
at full length).
● After removing the tilt motor or oil reser-
voir, do not push the tilt rod down. This
may cause hydraulic fluid to spurt out
from the port.
CAUTION:
Do not wipe hydraulic system components
with rags, paper, tissues, etc., because
their fibers may enter the hydraulic system
and cause malfunctions.

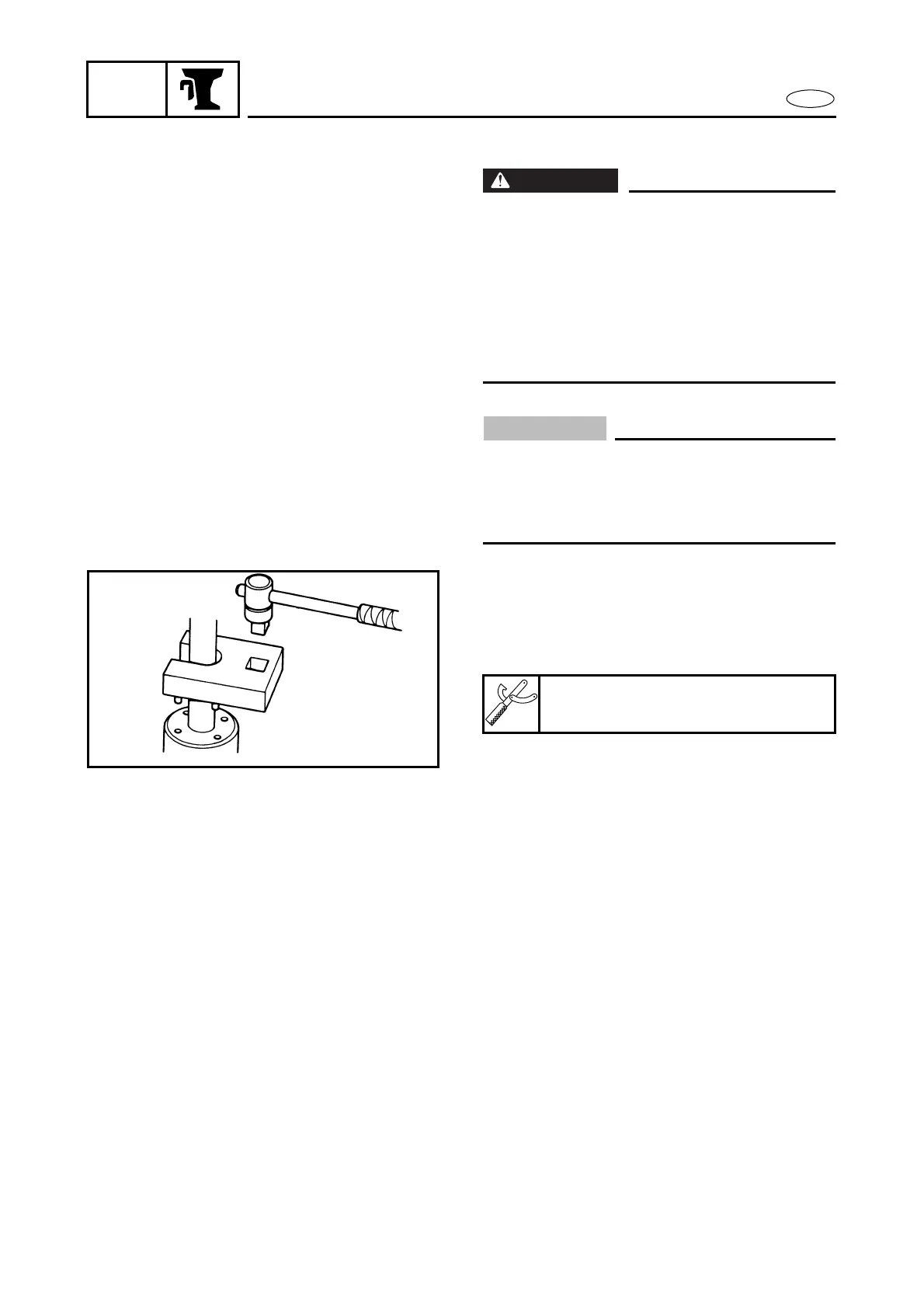

Tilt rod assy. and inner cylinder removal
1. Remove:
● Outer cylinder end screw
● Inner cylinder end screw
Tilt cylinder wrench:
YB-06175-2B/90890-06544
Cylinder end screw inspection
1. Inspection:
● Cylinder end screw
● O-ring
● Backup ring
● Dust seal
Damage → Replace.
