Yamaha F100A - Wire Harness

8-5
–+
ELEC
E

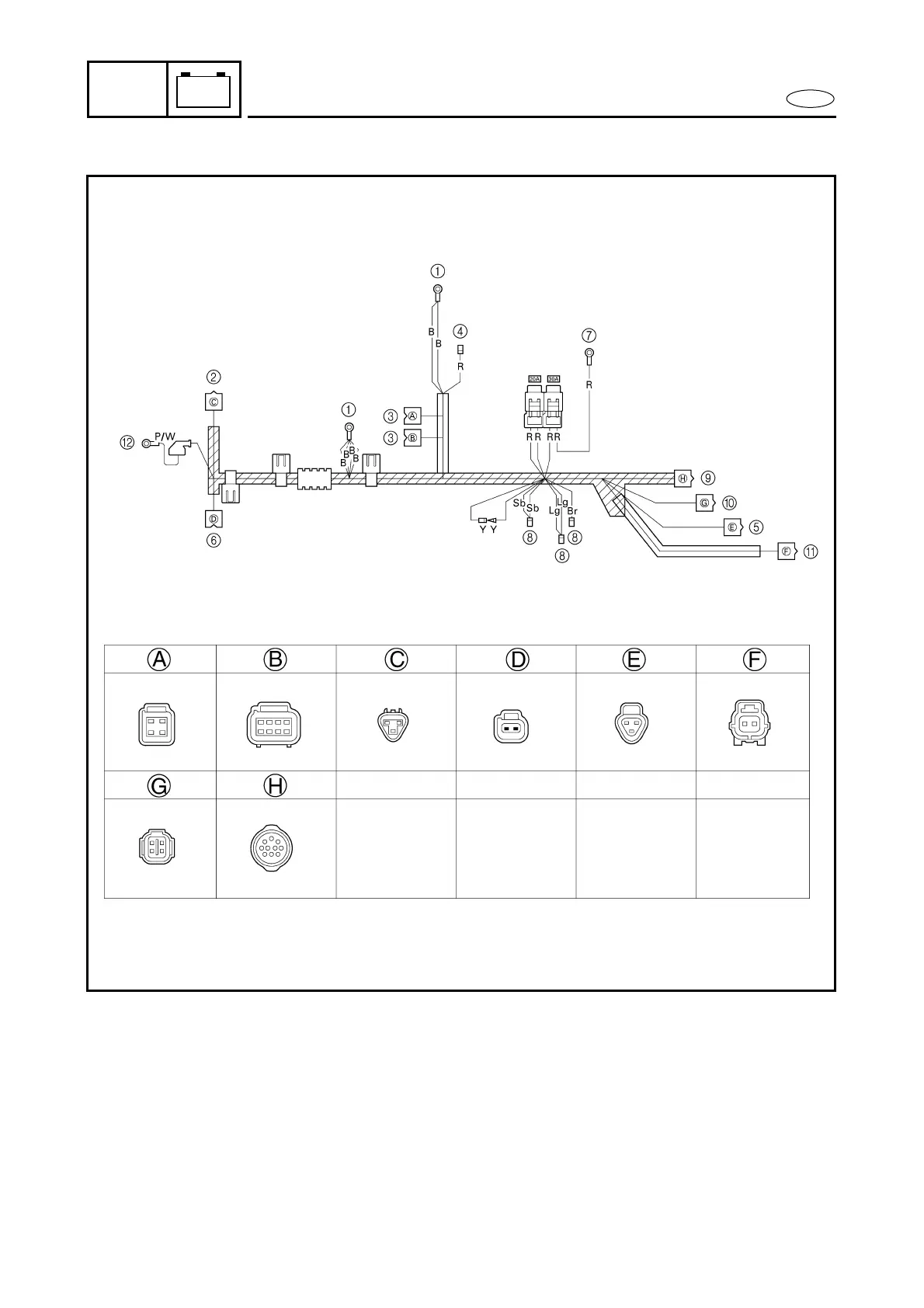

WIRE HARNESS
WIRE HARNESS
Connect to:
1 Ground lead
2 Throttle position sensor
(TPS)
3 CDI unit
4 Rectifier/regulator
5 Trailer switch
6 Choke solenoid
7 Starter relay
8 PTT relays
9 Remote control
0 Warning lamp
A Engine temperature sensor
B Oil pressure switch
B : Black
Br : Brown
Lg : Light green
O : Orange
P : Pink
R : Red
Sb : Sky blue
Y : Yellow
P/W : Pink/White
