Yamaha F100A - Special Tools; Measuring

1-5
GEN
INFO
E
SPECIAL TOOLS
A80000-0*
SPECIAL TOOLS
Using the correct special tools, recom-
mended by Yamaha, will aid the work and
enable accurate assembly and tune-up.
Improvising and using improper tools can
damage the equipment.
NOTE:
●
For U.S.A. and Canada, use part numbers
that start with ”J-”, “YB-”, ”YM-”, “YU-”
or “YW-”.
●
For other countries, use part numbers that
start with “90890-”.

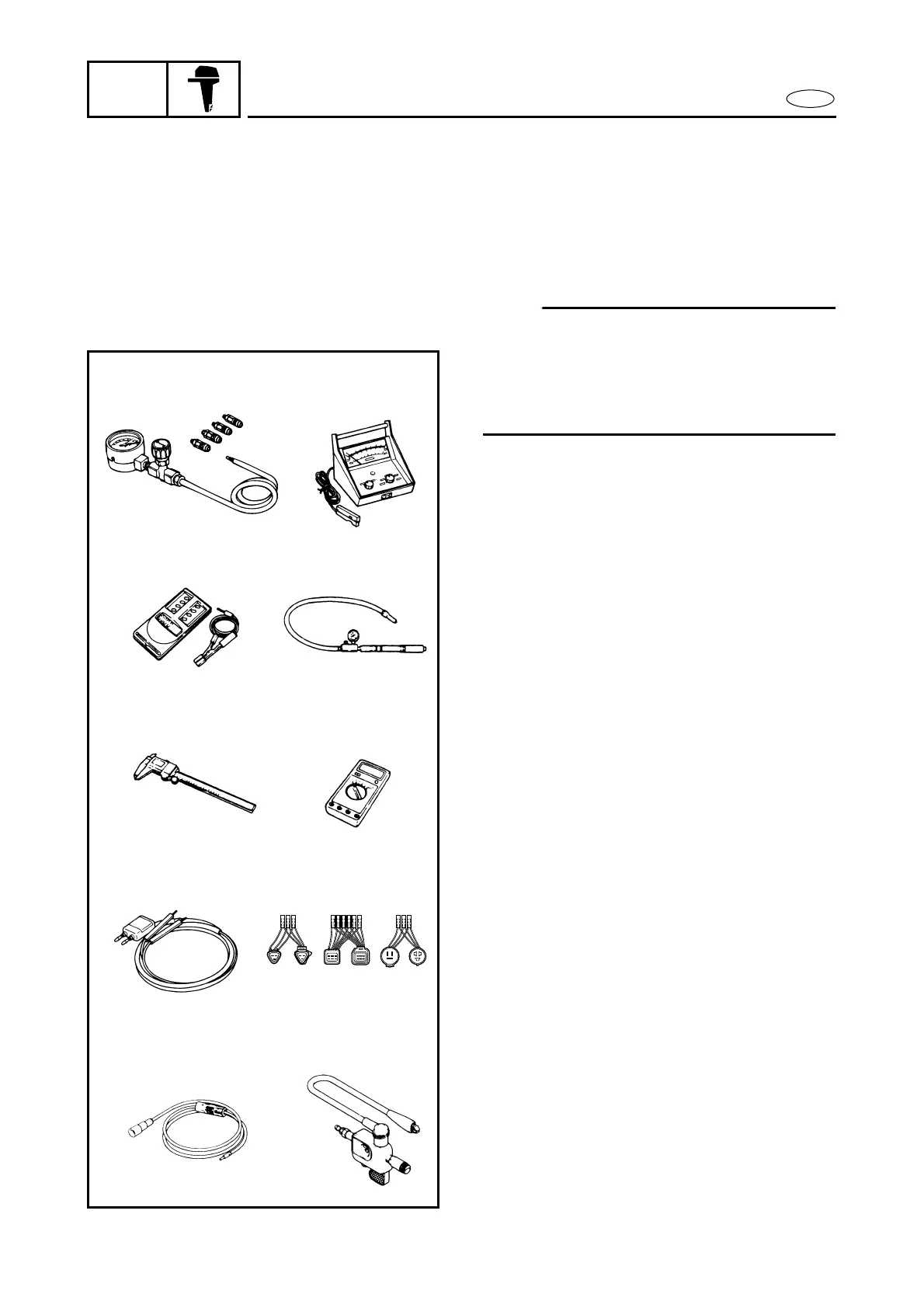

MEASURING
1. Vacuum gauge
P/N. YU-08030
90890-03159
2. Tachometer
P/N. YU-08036-A ............................ a
90890-06760 ........................... b
3. Pressure tester
P/N. YB-35956
90890-06762
4. Digital caliper
P/N. 90890-06704
5. Digital circuit tester
P/N. J-39299
90890-06752
6. Peak voltage adaptor
P/N. YU-39991
90890-03169
7. Peak voltage test harness
P/N. YB-06443, YB-38832, YB-06770
90890-06757, 90890-06772,
90890-06770
8. Spark gap tester
P/N. YM-34487 ............................... a
90890-06754 ........................... b
