Yamaha F100A - Starter Motor Exploded Diagram

8-18
–+
ELEC
E

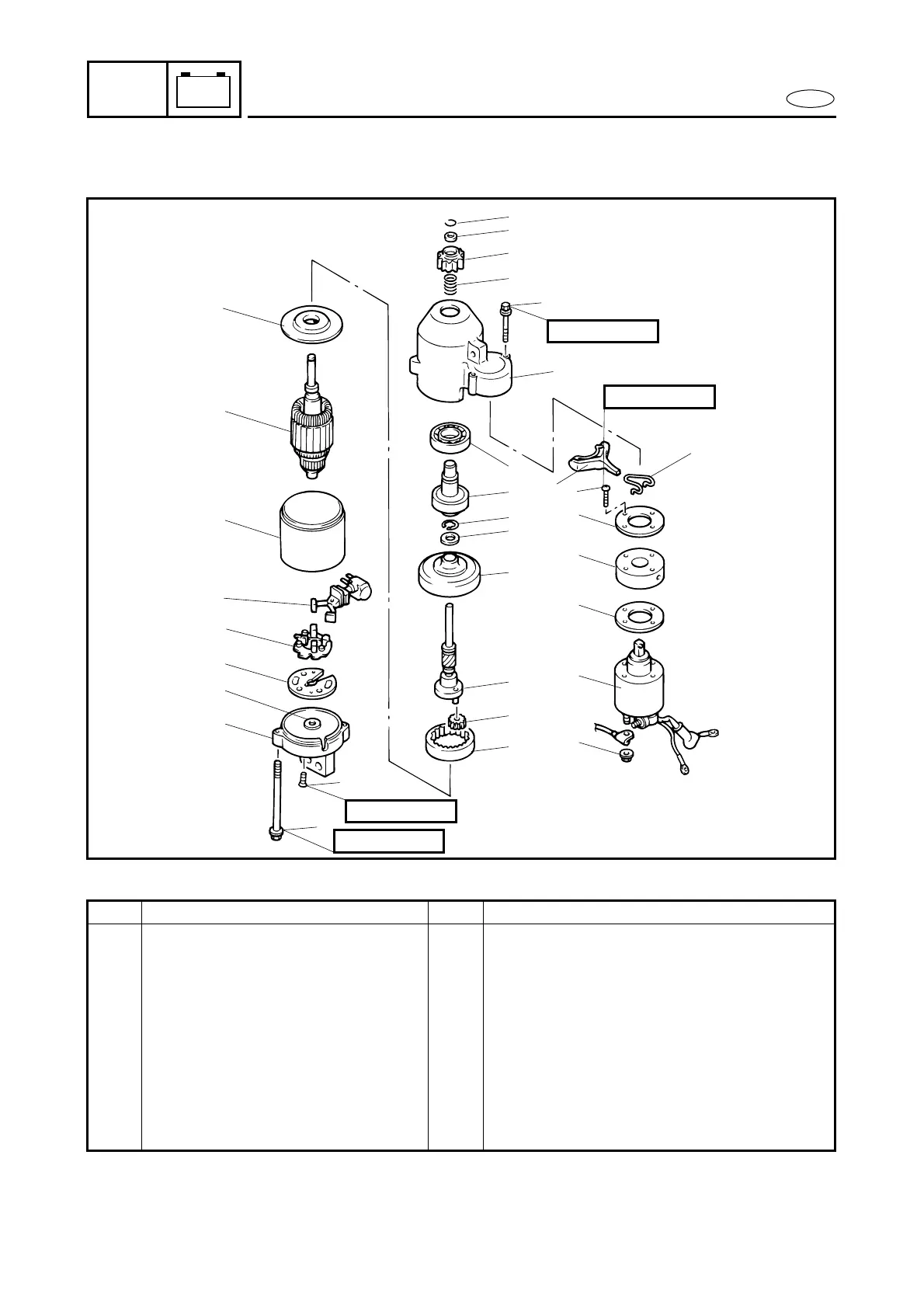

STARTER MOTOR
STARTER MOTOR
EXPLODED DIAGRAM
18
17
11
16
14
12
10
9
19
21
20
24
23
22
29
30
28
27
26
25
2
3
31
4
5
6
7
8
32
1
6 × 120 mm
4 × 14 mm
6 × 52 mm
4 × 20 mm
13
15
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STARTER MOTOR
DISASSEMBLY
Follow the left “Step” for removal.
Starter motor Refer to “IGNITION COILS AND STARTER
MOTOR” in chapter 5.
1 Nut 1
2 Bolt 2
3 Spring 1
4 Screw 1
5 Dust seal 1
6 Dust seal cover 1
