5-1

POWR

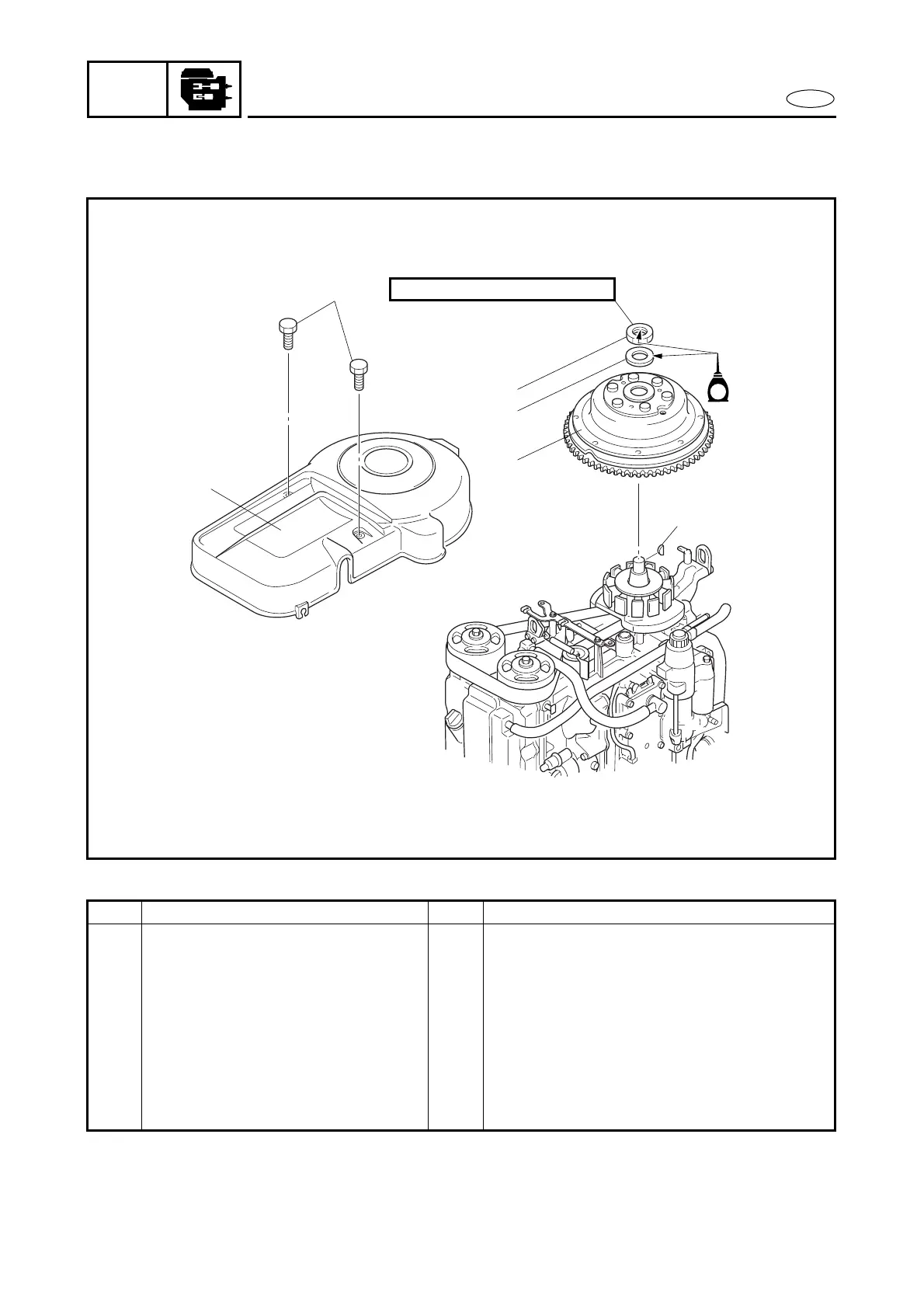

FLYWHEEL MAGNETO

EXPLODED DIAGRAM

190 Nm (19 m

•

kg, 137 ft

•

Ib)

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

FLYWHEEL MAGNETO

REMOVAL

Follow the left “Step” for removal.

1 Bolt 2

2 Flywheel cover 1

3 Flywheel magneto nut 1

4 Washer 1

5 Flywheel magneto 1

6 Woodruff key 1

Reverse the removal steps for installation.
