6-14

LOWR

PROPELLER SHAFT ASSY.

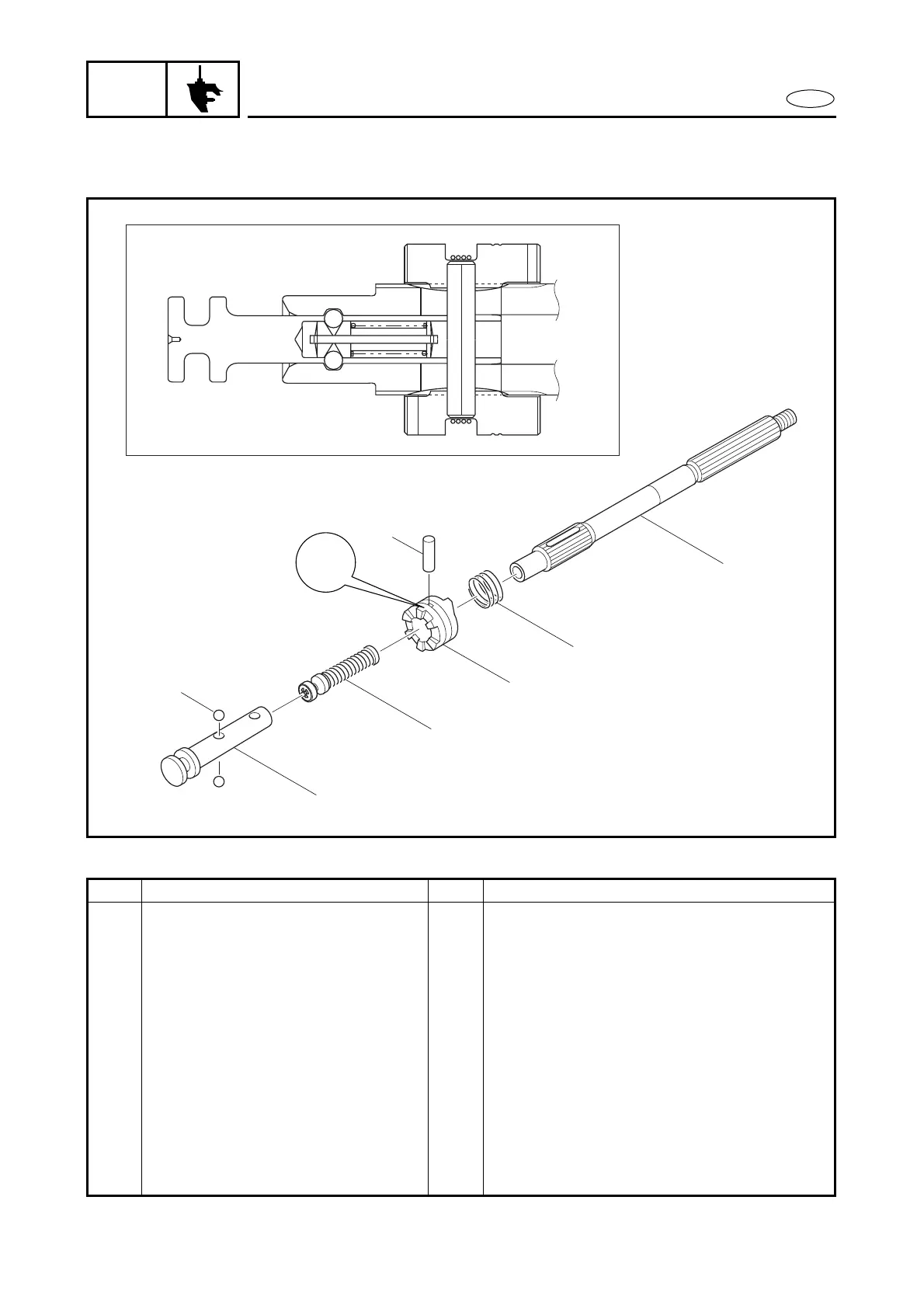

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

PROPELLER SHAFT ASSY.

DISASSEMBLY

Follow the left “Step” for removal.

Propeller shaft assy. Refer to “PROPELLER SHAFT HOUSING

ASSY.”.

1 Cross pin ring 1

2 Cross pin 1

3 Dog clutch 1 Face the “F” mark forward.

4 Shift slider 1

5 Ball 2

6 Shift plunger assy. 1

7 Propeller shaft 1

Reverse the disassembly steps for

installation.
