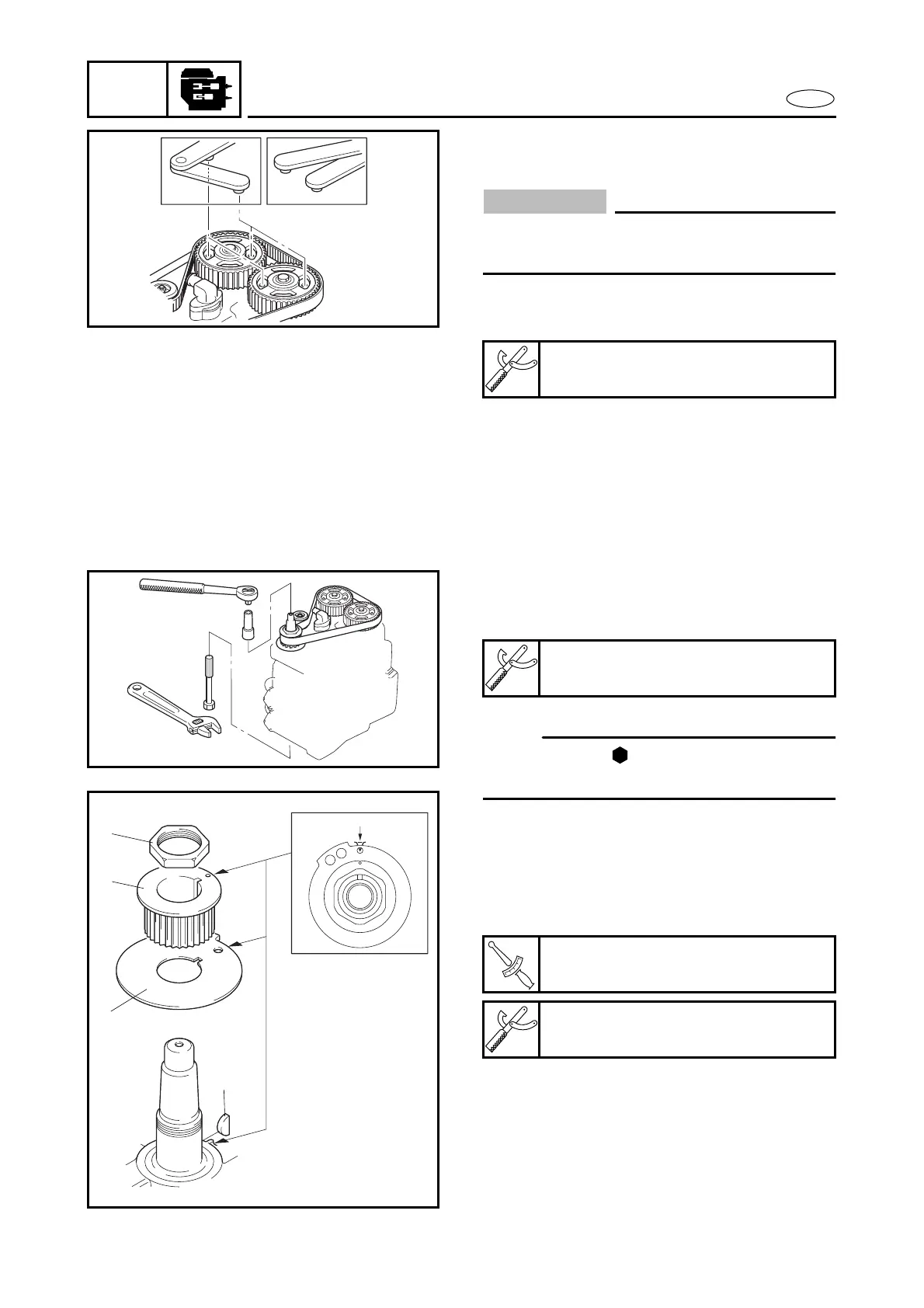

Yamaha F100A - Drive Sprocket Removal;Installation; Driven Sprocket Removal; Service Points

5-13
POWR
E
TIMING BELT
SERVICE POINTS
Driven sprocket removal
CAUTION:
Make sure cylinder #1’s position is at TDC
before removal.
1. Remove:
●
Bolt
Å For USA and CANADA
ı For worldwide
Flywheel holder:
YB-06139/90890-06522
Åı
Drive sprocket removal/installation
1. Remove:
●
Nut
NOTE:
A deep socket ( : 46 mm, 76 mm deep) is
required for this service.
2. Install:
●
Woodruff key 1
●
Pick-up coil rotor 2
●
Drive sprocket 3
●
Drive sprocket nut 4
Crankshaft holder:
YB-06552/90890-06552
T
R
.
.
Drive sprocket nut:
265 Nm (27.0 m • kg, 192 ft • lb)
Crankshaft holder:
YB-06552/90890-06552
4
3
2
1
