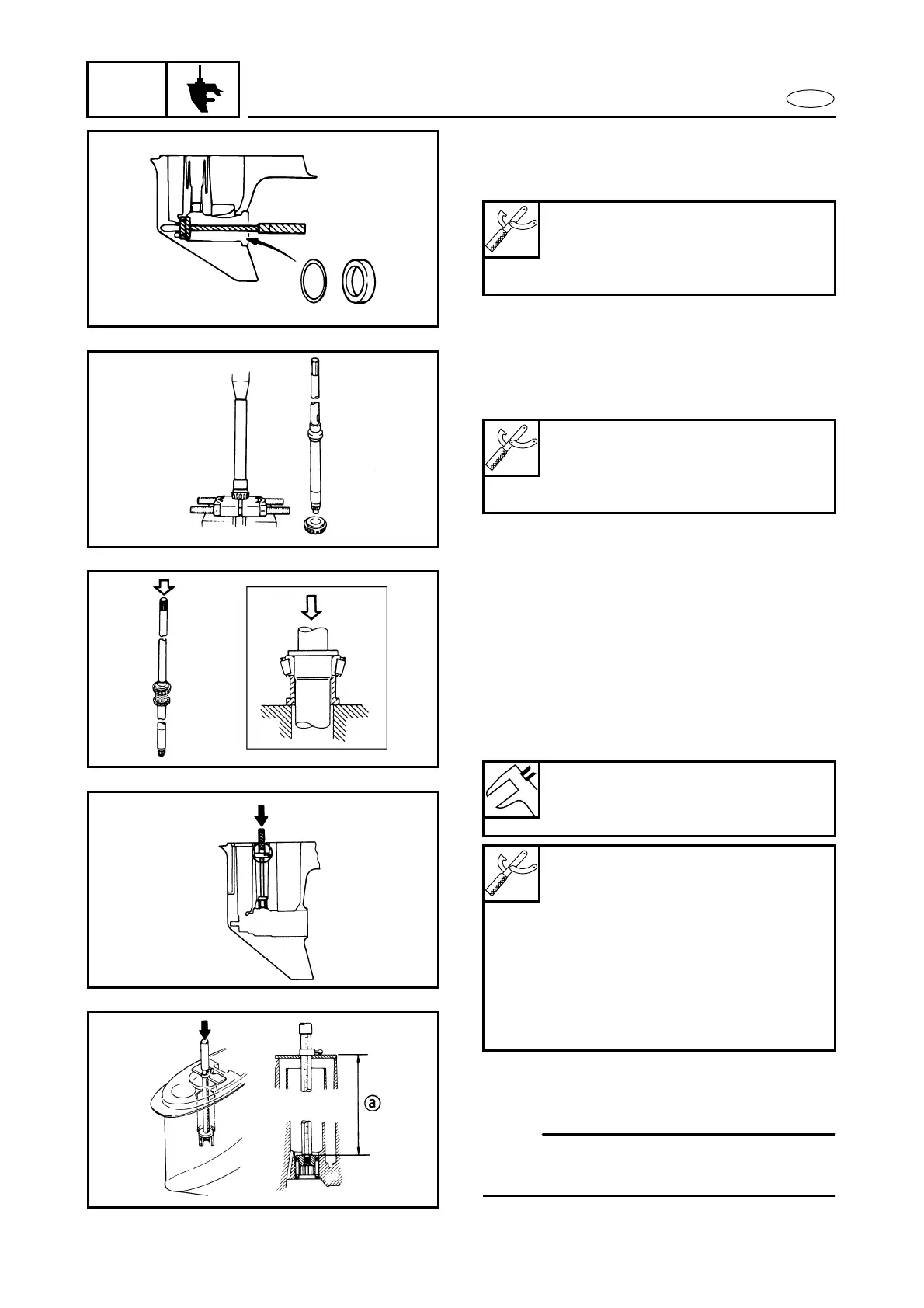

Yamaha F100A - Drive Shaft Bearing Installation

6-20
E
LOWR
LOWER CASE
2. Install:
● Forward gear shim(s)
● Tapered roller bearing outer race
Driver rod:
YB-06071/90890-06605
Bearing outer race attachment:
YB-06276-B/90890-06621
Drive shaft bearing installation
1. Install:
● Drive shaft bearing
Å For USA and CANADA
ı For worldwide
2. Install:
● Needle bearing
Å For USA and CANADA
ı For worldwide
NOTE:
Install the drive shaft needle bearing with
the manufacturer’s marks facing up.
Bearing separator:
YB-06219
Bearing inner race installer:
90890-06643
Needle bearing position a:
187.6 ~ 188.6 mm
(7.385 ~ 7.425 in)
Driver rod:
YB-06071
Driver rod-S:
90890-06602
Needle bearing plate:
YB-34474
Needle bearing attachment:
YB-06155/90890-06611
Bearing depth plate:
90890-06603
Å
ı
Å
ı
