Yamaha F100A - Bottom Cowling Exploded Diagram

7-3
E
BRKT
BOTTOM COWLING
BOTTOM COWLING

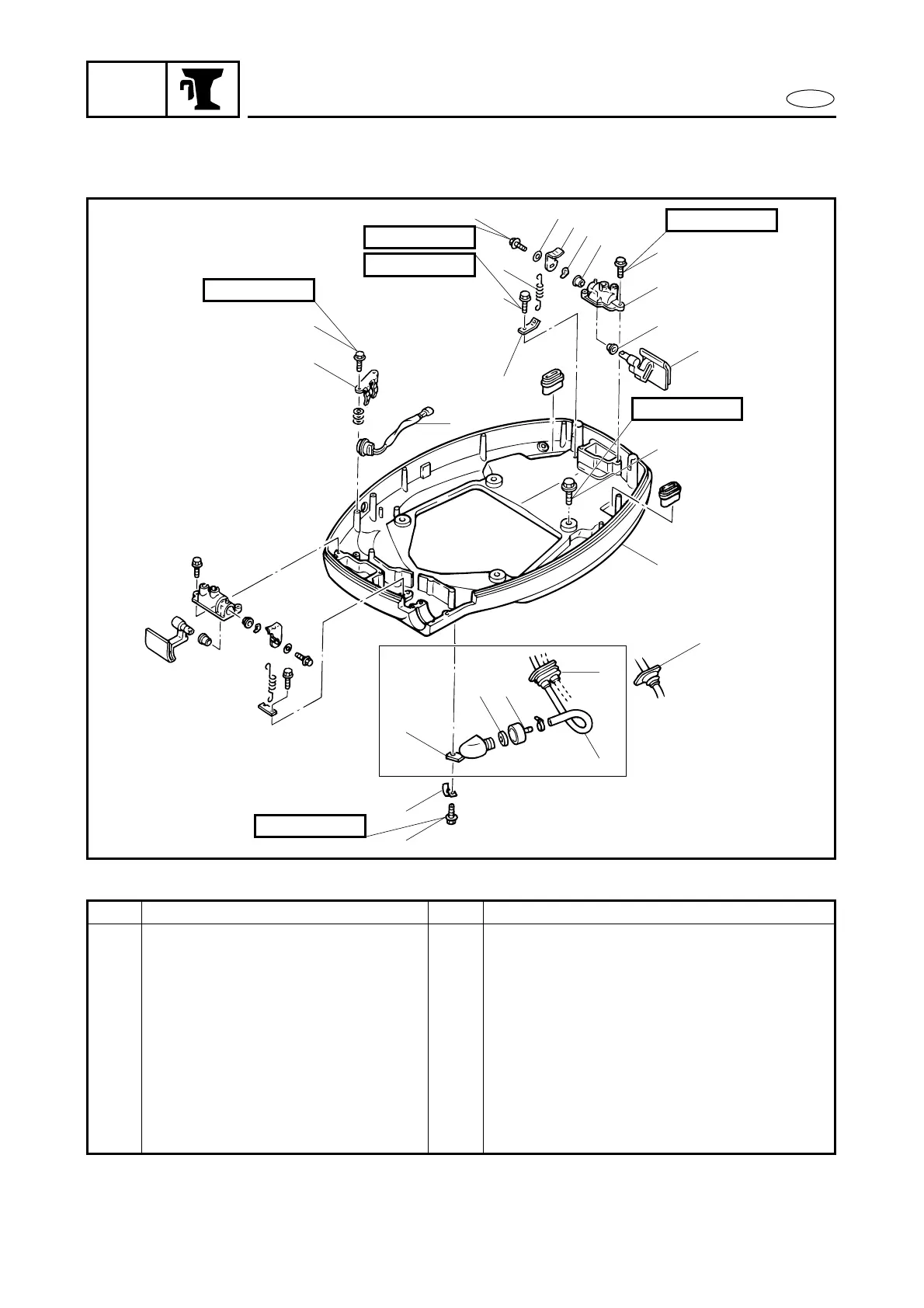

EXPLODED DIAGRAM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
22
15
16
17
18 19
20
21
23
20
6 × 30 mm
6 × 20 mm
6 × 12 mm
6 × 25 mm
8 × 35 mm
6 × 25 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
BOTTOM COWLING
DISASSEMBLY
Follow the left “Step” for removal.
Power unit Refer to “POWER UNIT” in chapter 5.
1 Bolt 4
2 Bolt 2
3 Spring hook 2
4 Spring 2
5 Bolt 2
6 Washer 2
7 Clamp lever 2
