Yamaha F100A - Drive Shaft Installation

6-21
E
LOWR
LOWER CASE

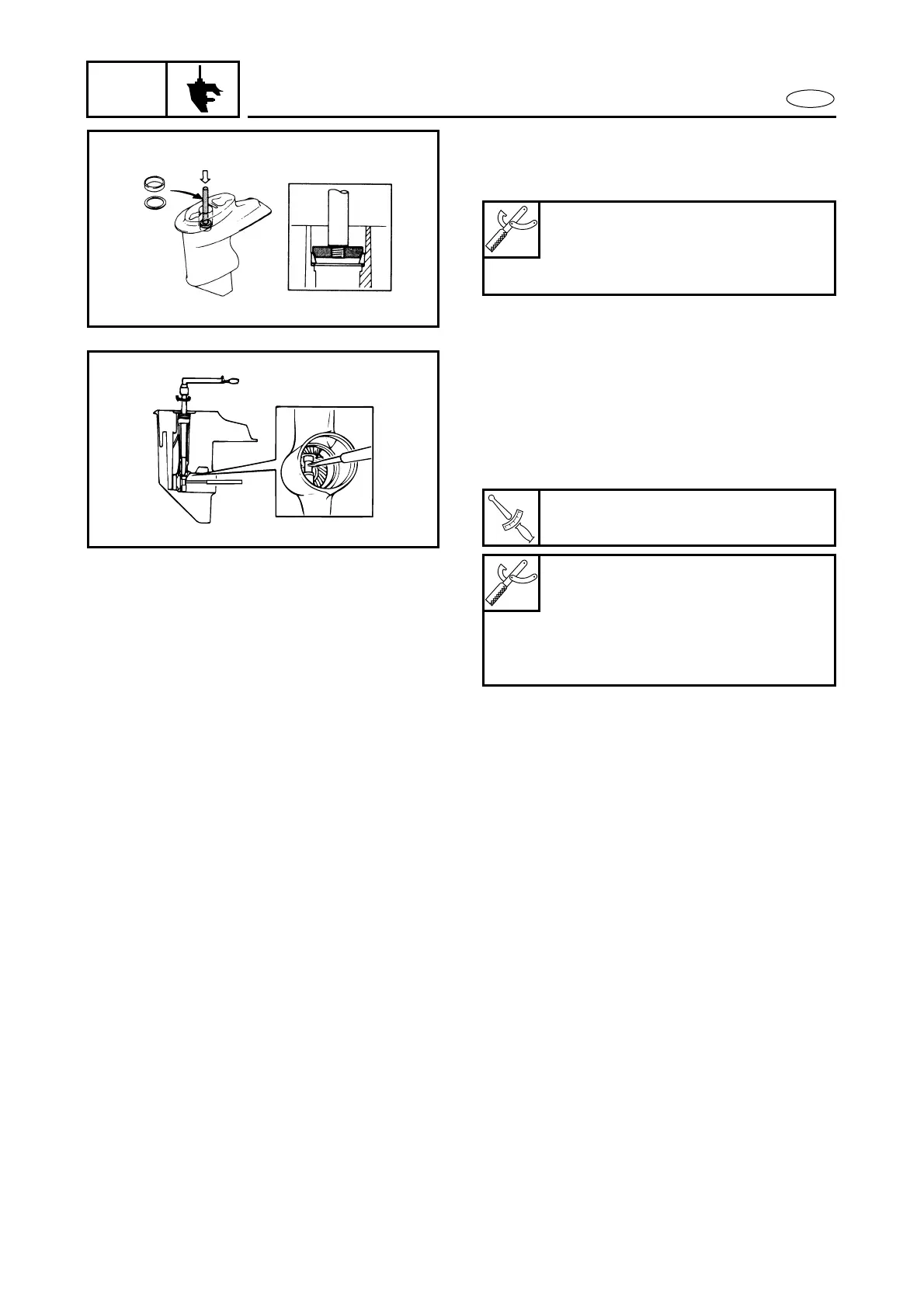

3. Install:
● Pinion gear shim(s)
● Drive shaft bearing outer race
Driver rod:
YB-06071/90890-06606
Bearing outer race installer:
YB-06156/90890-06626
Drive shaft installation
1. Install:
● Forward gear assy.
● Pinion gear
● Drive shaft assy.
● Pinion gear nut
T
R
.
.
Pinion gear nut:
95 Nm (9.5 m • kg, 68 ft • lb)
Pinion nut holder:
90890-06505
Adapter:
90890-06507
Drive shaft holder:
YB-06151/90890-06519
