Yamaha F100A - Fuel Pumps Exploded Diagram

4-3
E
FUEL
FUEL PUMPS
FUEL PUMPS

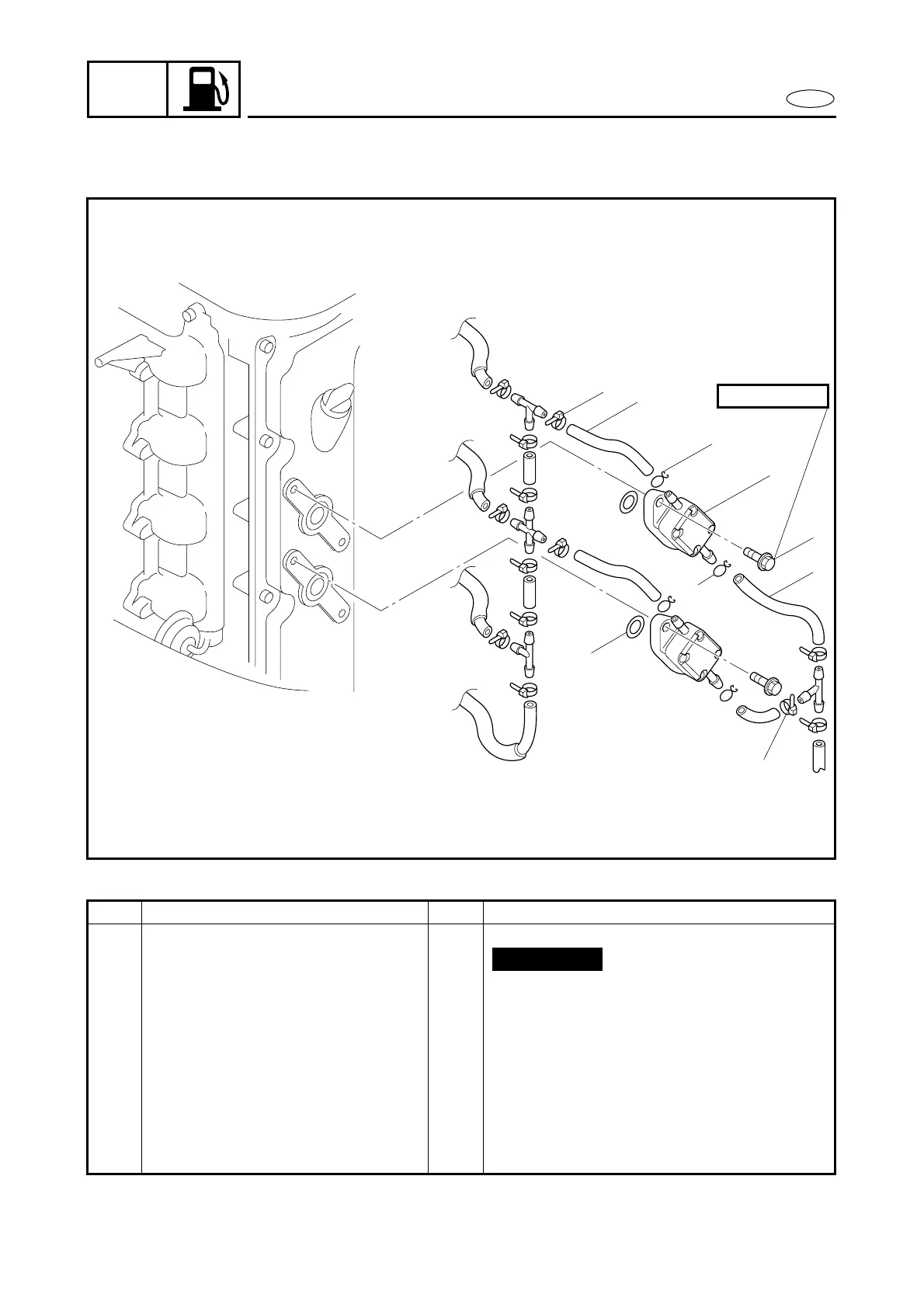

EXPLODED DIAGRAM
2
6
7
6 × 30 mm
1
3
5
4
2
1
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
FUEL PUMP REMOVAL Follow the left “Step” for removal.
1 Plastic locking tie 4
2 Clip 4
3 Fuel hose
(fuel pump-to-fuel hose joint)
2
4 Fuel hose
(fuel hose joint-to-fuel pump)
2
5 Bolt 4
6 Fuel pump 2
7 O-ring 2
Reverse the removal steps for installation.
Not reusable
