PROPELLER SHAFT HOUSING ASSY.
PROPELLER SHAFT HOUSING ASSY.

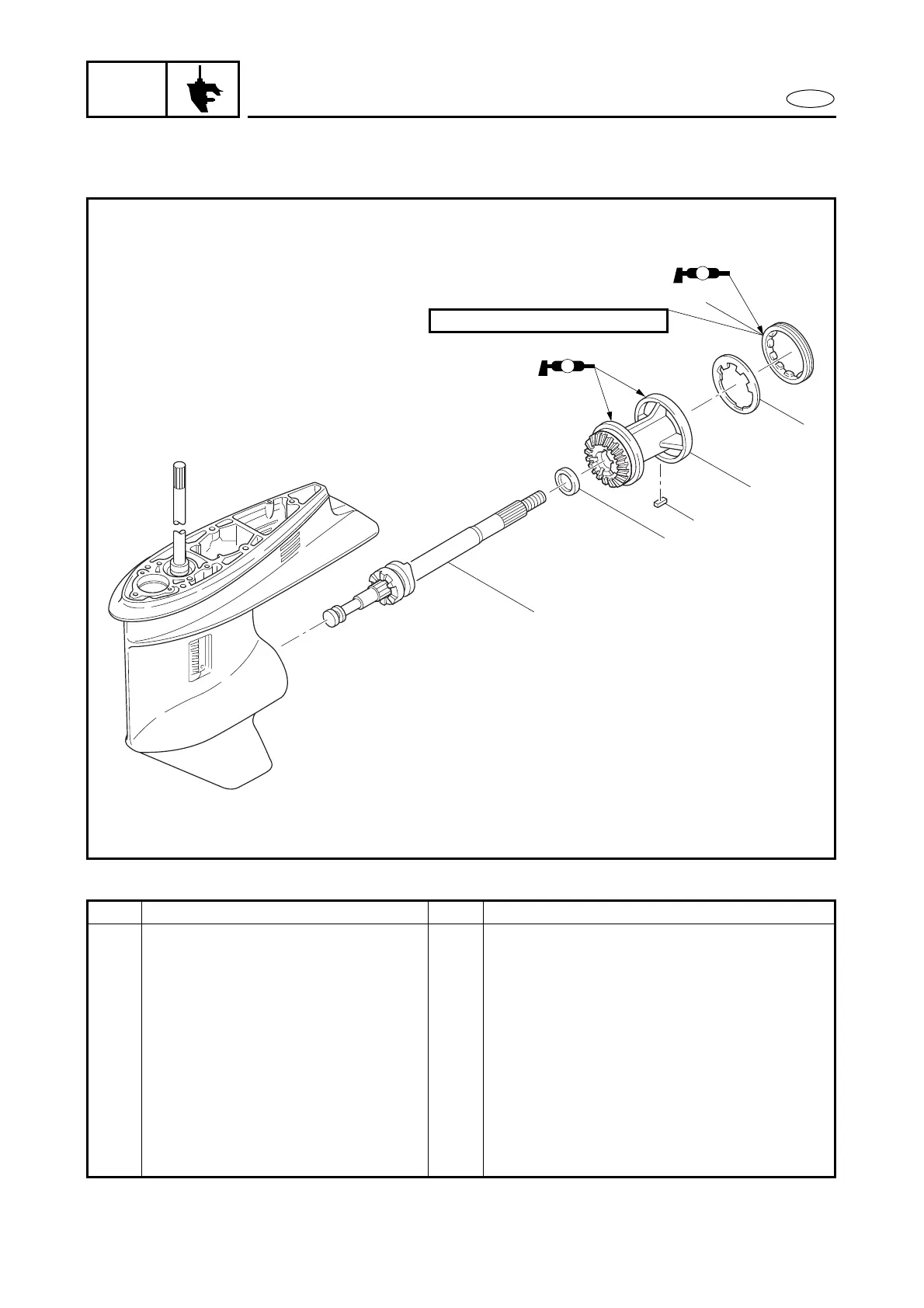

EXPLODED DIAGRAM
1
2
3
4
5
6
A
A
105 Nm (10.5 m
•
kg, 76 ft
•
Ib)
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PROPELLER SHAFT HOUSING
ASSY. REMOVAL
Follow the left “Step” for removal.
Gear oil Refer to “Gear oil” in chapter 3.
Shift rod Refer to “SHIFT ROD”.
1 Ring nut 1
2 Claw washer 1
3 Propeller shaft housing assy. 1
4 Straight key 1
5 Washer 1
6 Propeller shaft assy. 1
Reverse the removal steps for installation.
