Yamaha F100A - Page 134

4-14
E
FUEL
CARBURETOR

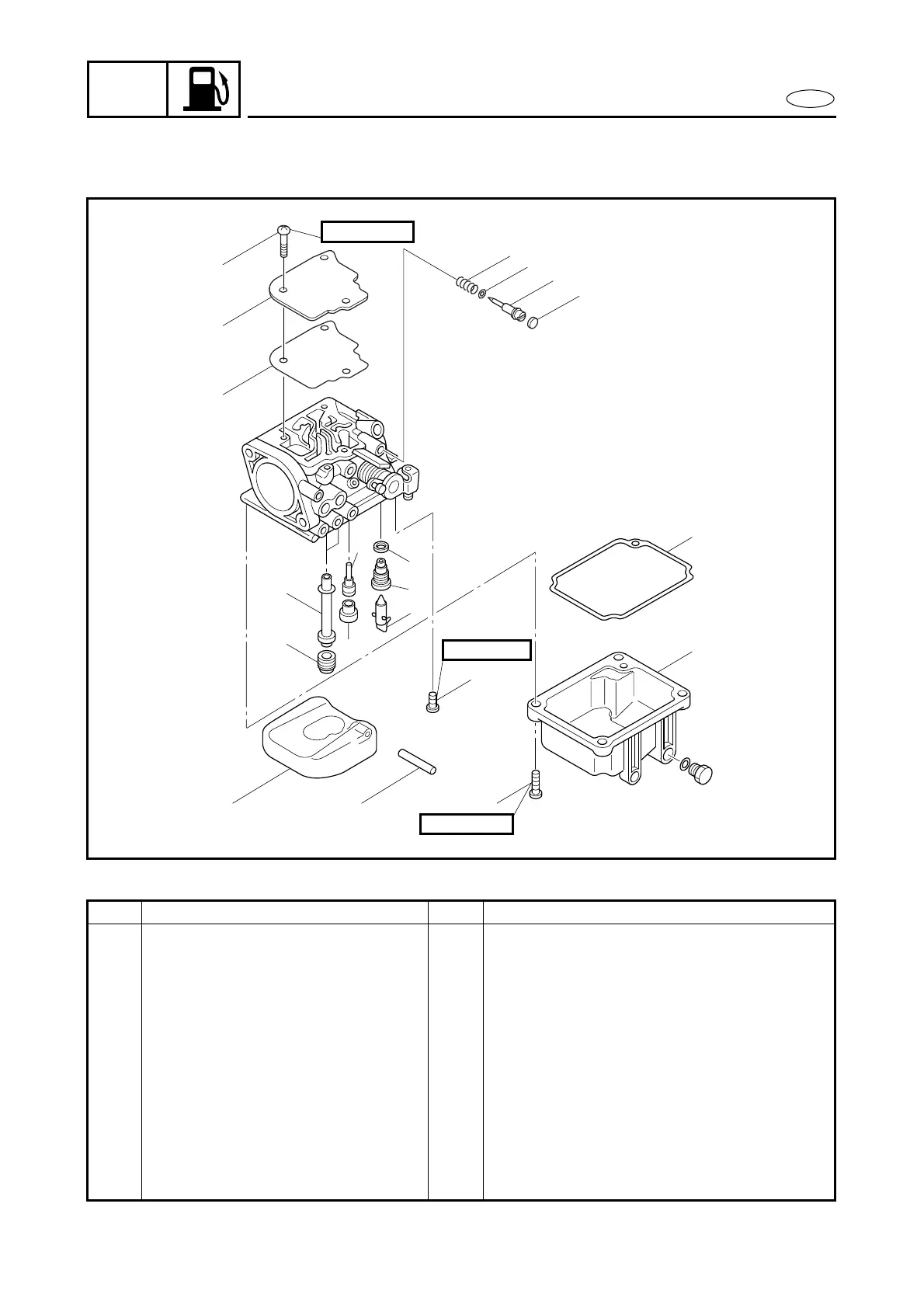

EXPLODED DIAGRAM
8
9
10
11
12
13
14
15
16
17
18
19
20
4 × 14 mm
4 × 8 mm
1
2
3
4
5
6
7
4 × 10 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CARBURETOR DISASSEMBLY Follow the left “Step” for removal.
1 Screw 3
2 Carburetor top cover 1
3 Gasket 1
4 Blind plug 1
5 Pilot screw 1 Refer to “CONTROL SYSTEM” in
chapter 3.
6 Spring 1
7 O-ring 1
8 Screw 4
9 Float chamber 1
10 Rubber gasket 1
