Yamaha F100A - Page 136

4-15
E
FUEL
CARBURETOR

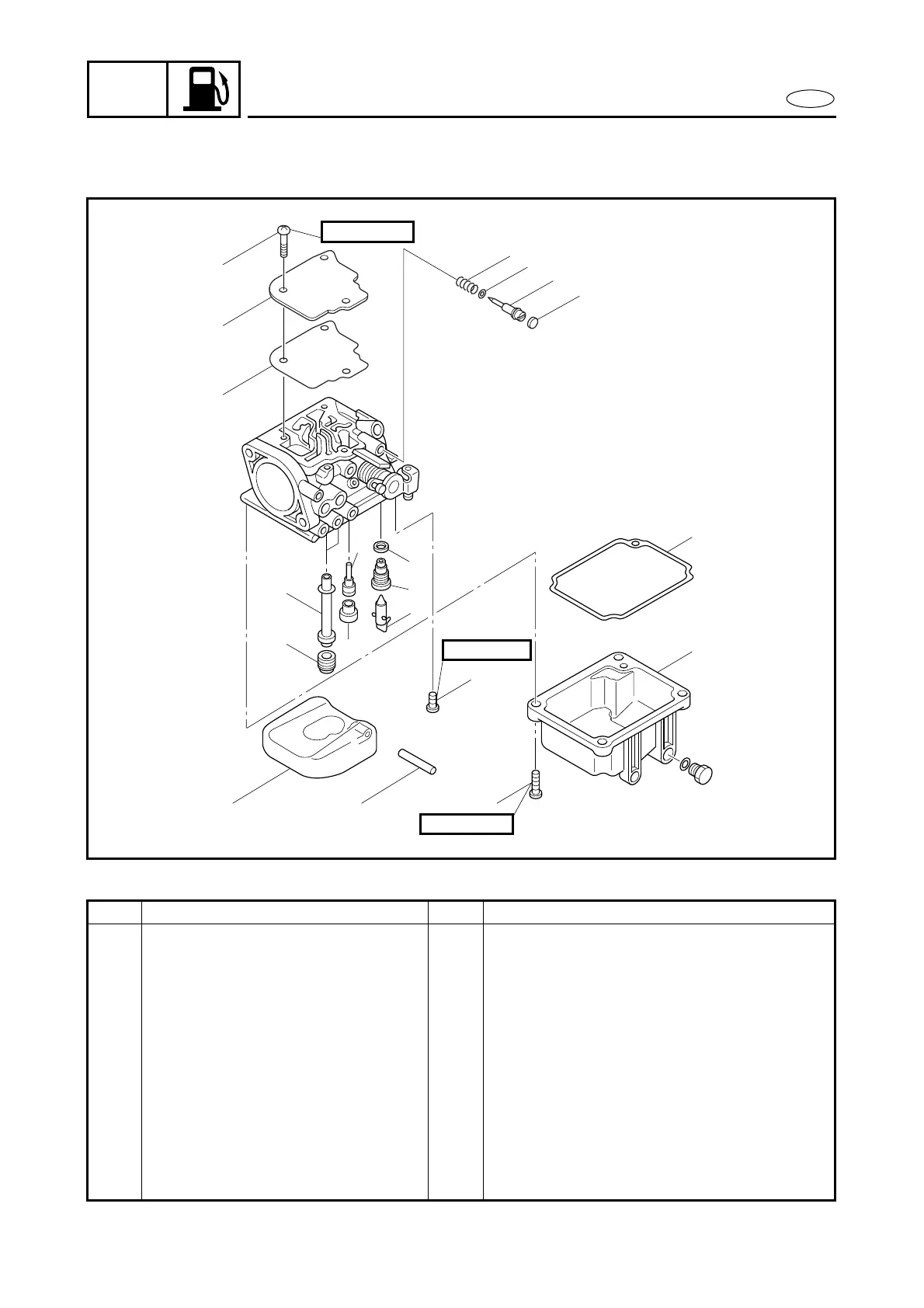

EXPLODED DIAGRAM
8
9
10
11
12
13
14
15
16
17
18
19
20
4 × 14 mm
4 × 8 mm
1
2
3
4
5
6
7
4 × 10 mm
Step Procedure/Part name Q’ty Service points
11 Screw 1
12 Float pin 1
13 Float 1
14 Needle valve 1
15 Needle valve seat 1
16 O-ring 1
17 Main jet 1
18 Main nozzle 1
19 Pilot jet plug 1
20 Pilot jet 1
Reverse the disassembly steps for
installation.
