Yamaha F100A - Page 312

7-4
E
BRKT

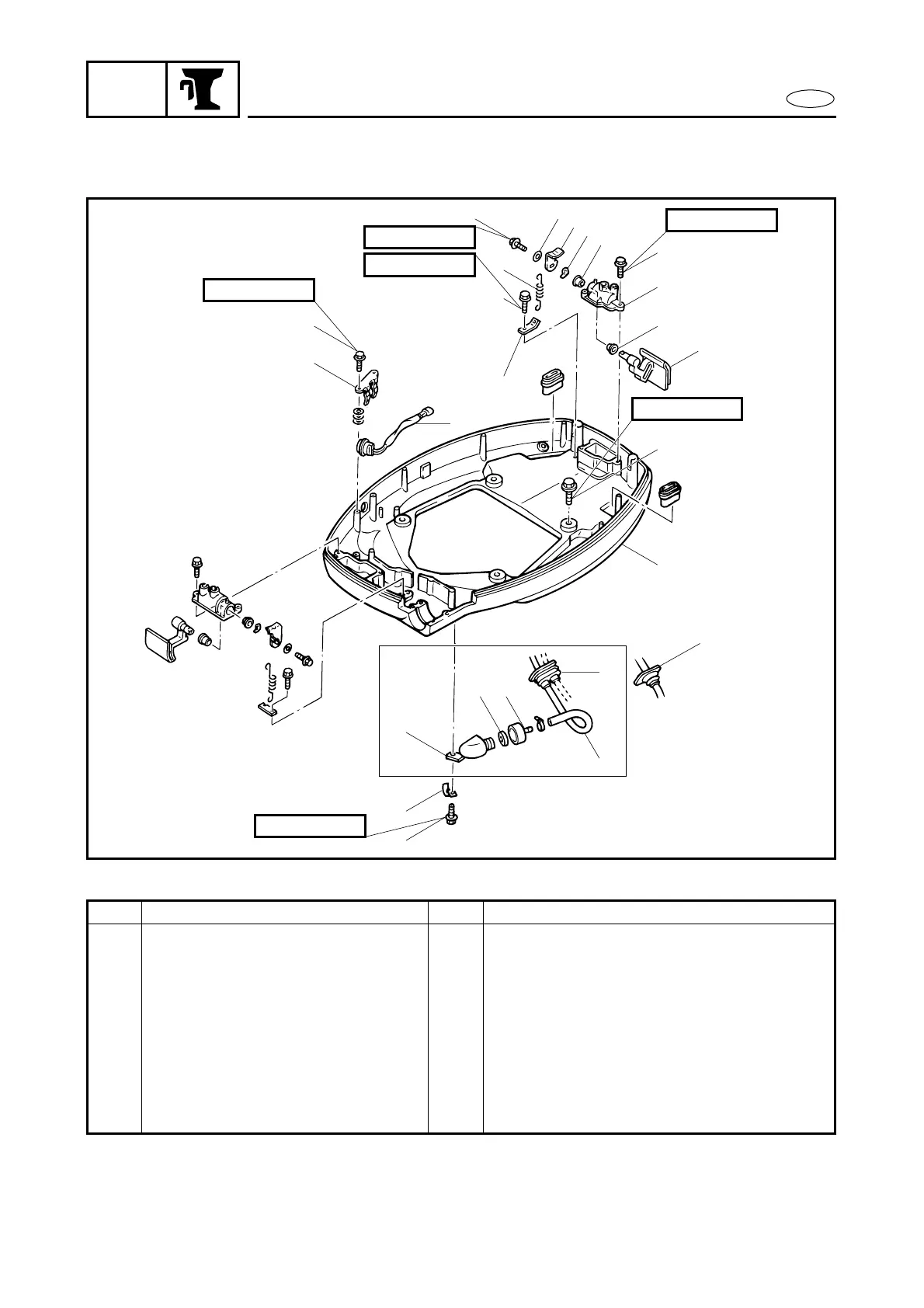

EXPLODED DIAGRAM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
22
15
16
17
18 19
20
21
23
20
6 × 30 mm
6 × 20 mm
6 × 12 mm
6 × 25 mm
8 × 35 mm
6 × 25 mm
Step Procedure/Part name Q’ty Service points
8 Wave washer 2
9 Bushing 4
10 Clamp lever 2
11 Clamp plate 2
12 Bolt 2
13 Bracket 1
14 Trailer switch 1
15 Bolt 1
16 Clamp 1 For water hose and PTT lead
BOTTOM COWLING
