Yamaha F100A - Page 314

7-5
E
BRKT
BOTTOM COWLING

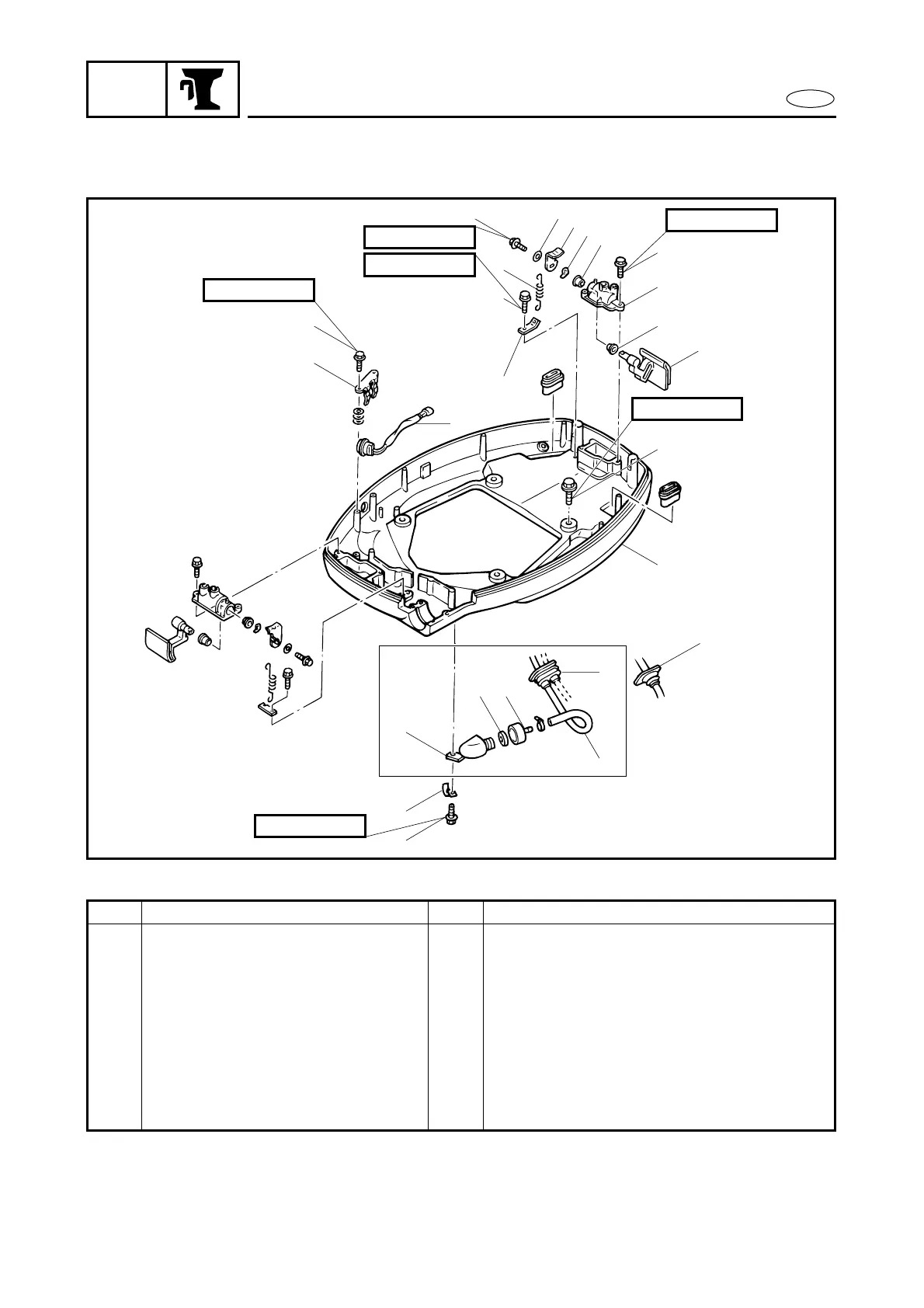

EXPLODED DIAGRAM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
22
15
16
17
18 19
20
21
23
20
6 × 30 mm
6 × 20 mm
6 × 12 mm
6 × 25 mm
8 × 35 mm
6 × 25 mm
Step Procedure/Part name Q’ty Service points
17 Adaptor 1 It differs on specifications 17 to 21.
18 Gasket 1
19 Hose joint 1
20 Grommet 1
21 Hose 1
22 Bolt 4
23 Bottom cowling 1
Reverse the disassembly steps for
installation.
