7-21
E
BRKT

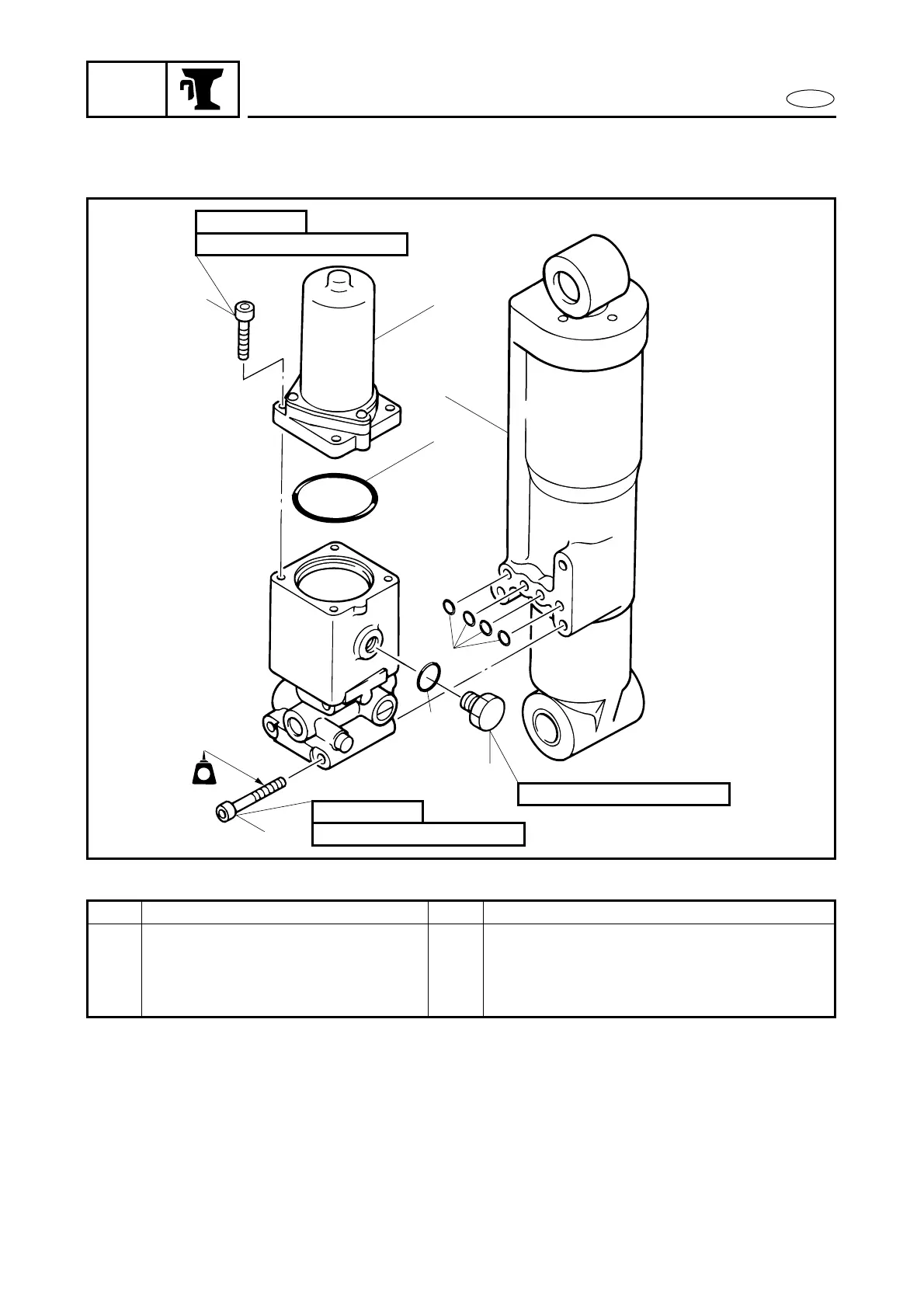

PTT MOTOR, PUMP HOUSING, AND TILT
CYLINDER
EXPLODED DIAGRAM
1
3
4
5
2
6
7
8
6 × 20 mm
6 × 75 mm
LT
LT
572
12 Nm (1.2 m
•
kg, 8.7 ft
•
Ib)
9 Nm (0.9 m
•
kg, 6.5 ft
•
Ib)
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
Step Procedure/Part name Q’ty Service points
6 Bolt 4
7 PTT motor 1
8 O-ring 1
Reverse the removal steps for installation.
