Yamaha F100A - Page 354

7-25
E
BRKT
TILT ROD ASSY.

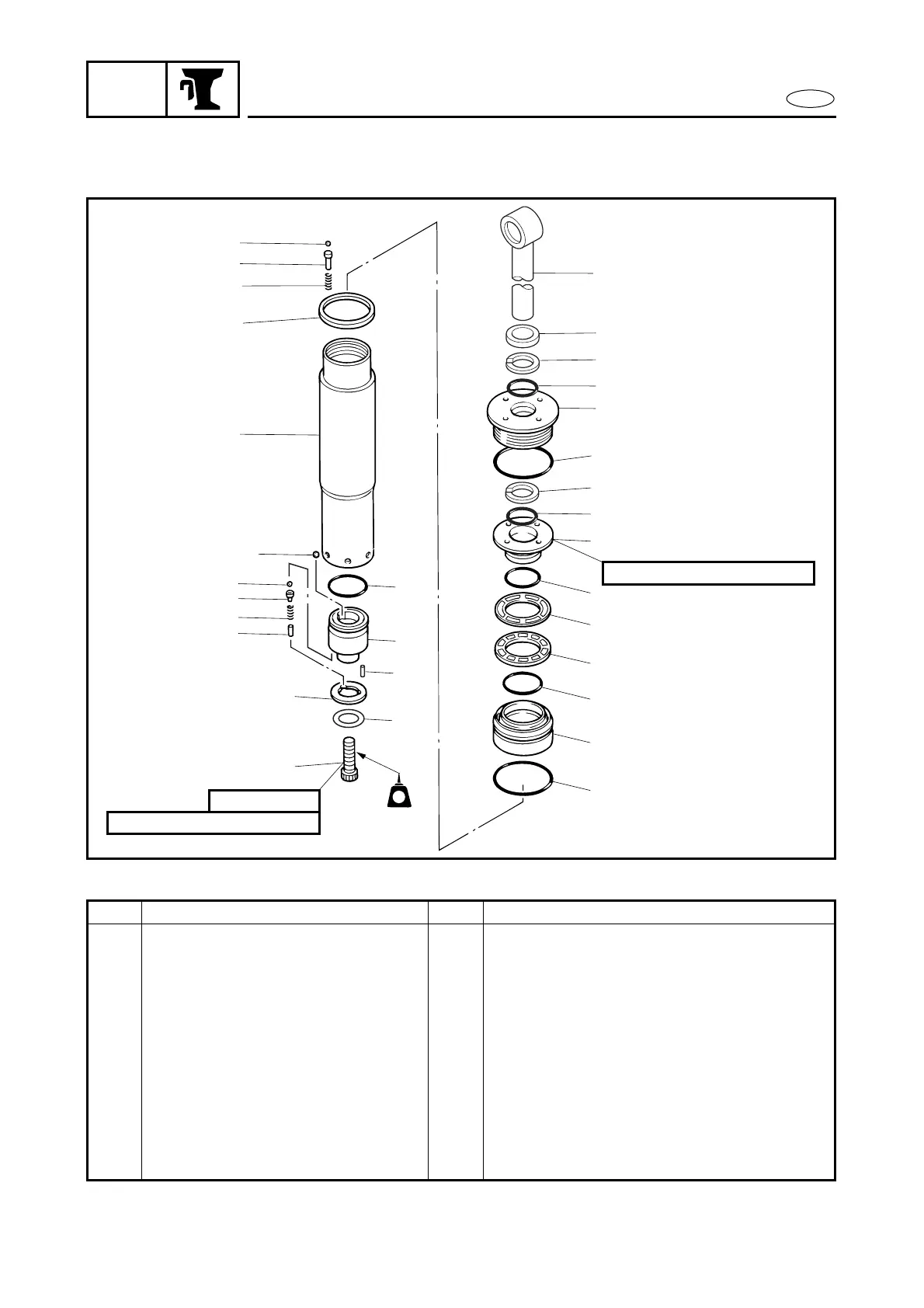

EXPLODED DIAGRAM
1
2
3
5
6
7
10
4
8
9
11
13
15
17
16
18
20
19
21
22
23
24
25
26
27
28
29
30
31
14
85 Nm (8.5 m
•
kg, 61 ft
•
Ib)
80 Nm (8.0 m
•
kg, 58 ft
•
Ib)
12 × 45 mm
12
LT
LT
572
Step Procedure/Part name Q’ty Service points
11 Bolt 1 Face it upward when removing.
12 Shim 1
13 Plate 1
14 Pin 2
15 Pin 4
16 Spring 4
17 Plunger 4
18 Ball 4
19 Tilt piston 1
20 Ball 1
21 O-ring 1
