7-35
E
BRKT
PTT MOTOR

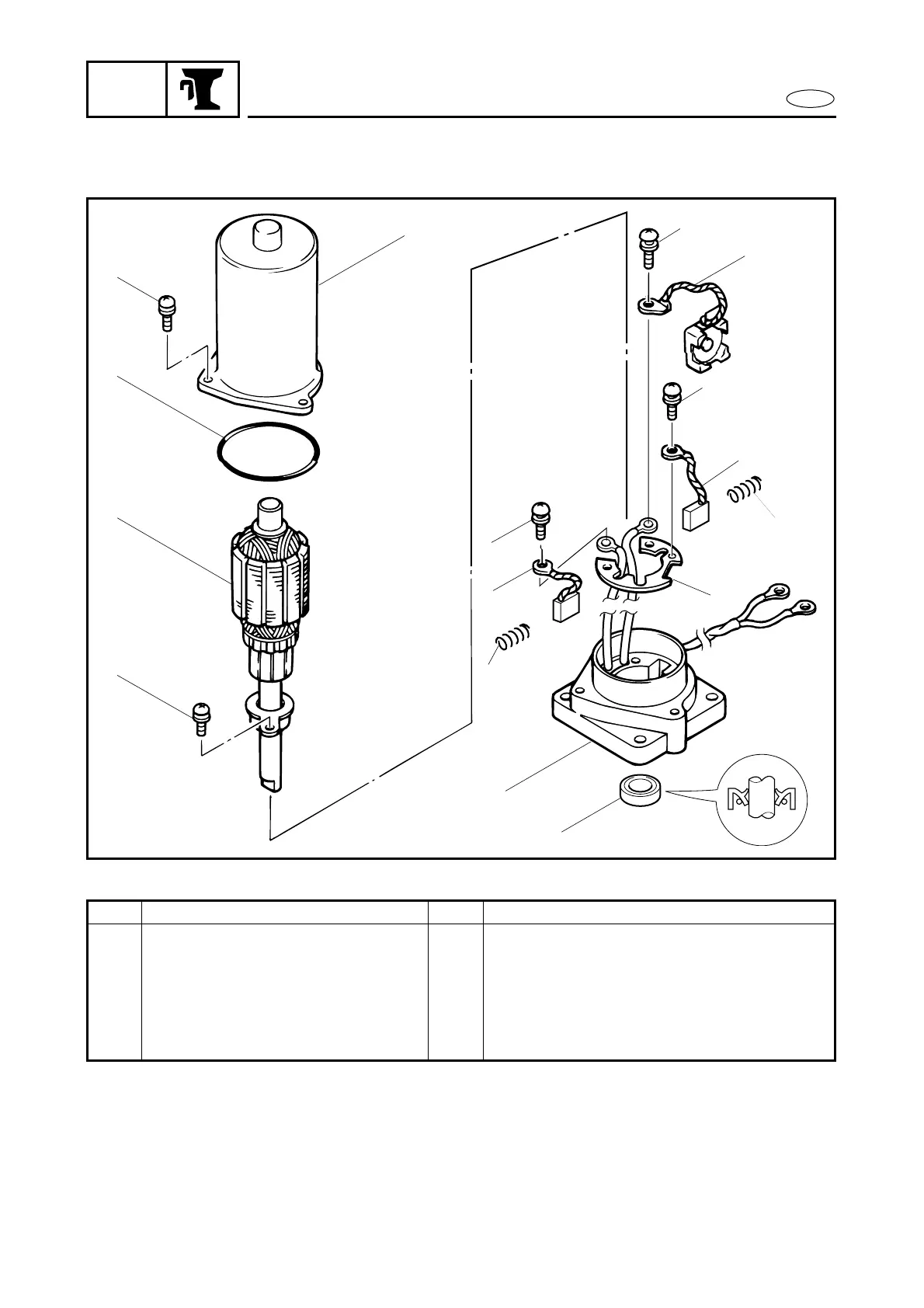

EXPLODED DIAGRAM
1
2
3
5
4
6
6
7
7
8
8
9
10
12
6
11
Step Procedure/Part name Q’ty Service points
9 Circuit breaker assy. 1
10 Brush holder plate 1
11 Oil seal 1
12 PTT motor base 1
Reverse the disassembly steps for
installation.
