5 - 7

CARB

CARBURETOR

EAS00487

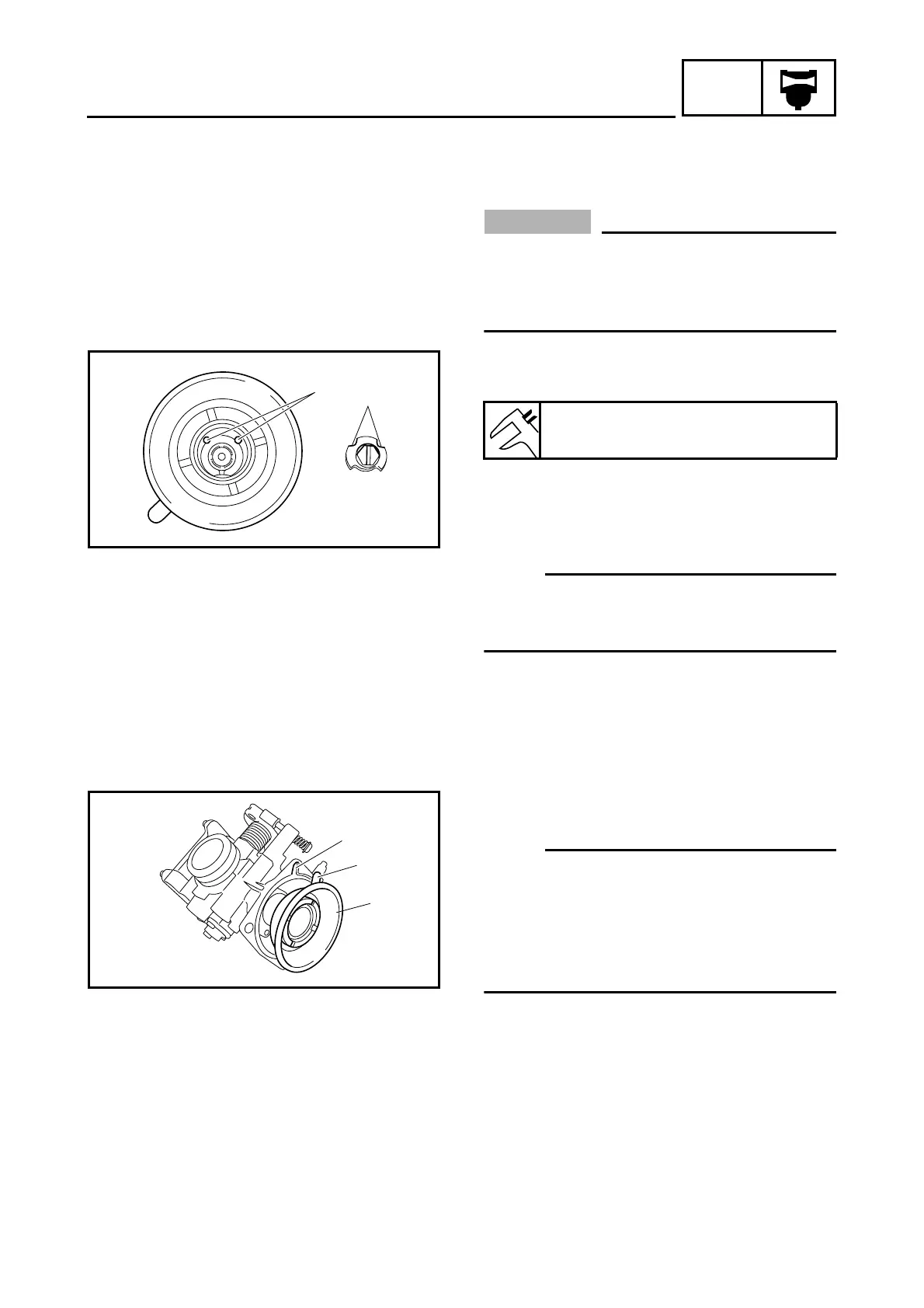

ASSEMBLING THE CARBURETOR

For assembly, reverse the disassembly proce-

dure.

CAUTION:

• Before assembling the carburetor, wash

all of the parts in a petroleum-based sol-

vent.

• Always use a new gasket and O-ring.

1. Install:

• pilot screw

2. Install:

• jet needle

• jet needle spring

• jet needle holder

NOTE:

When installing the jet needle holder, align the

notches

in the jet needle holder with the

projections

on the piston valve.

Pilot screw setting

2-3/8 turns out

3. Install:

• piston valve

NOTE:

• Match the tab

on the piston diaphragm to

the matching recess

in the carburetor

body.

• Make sure that the rim of the piston dia-

phragm is installed in the groove in the car-

buretor body.
