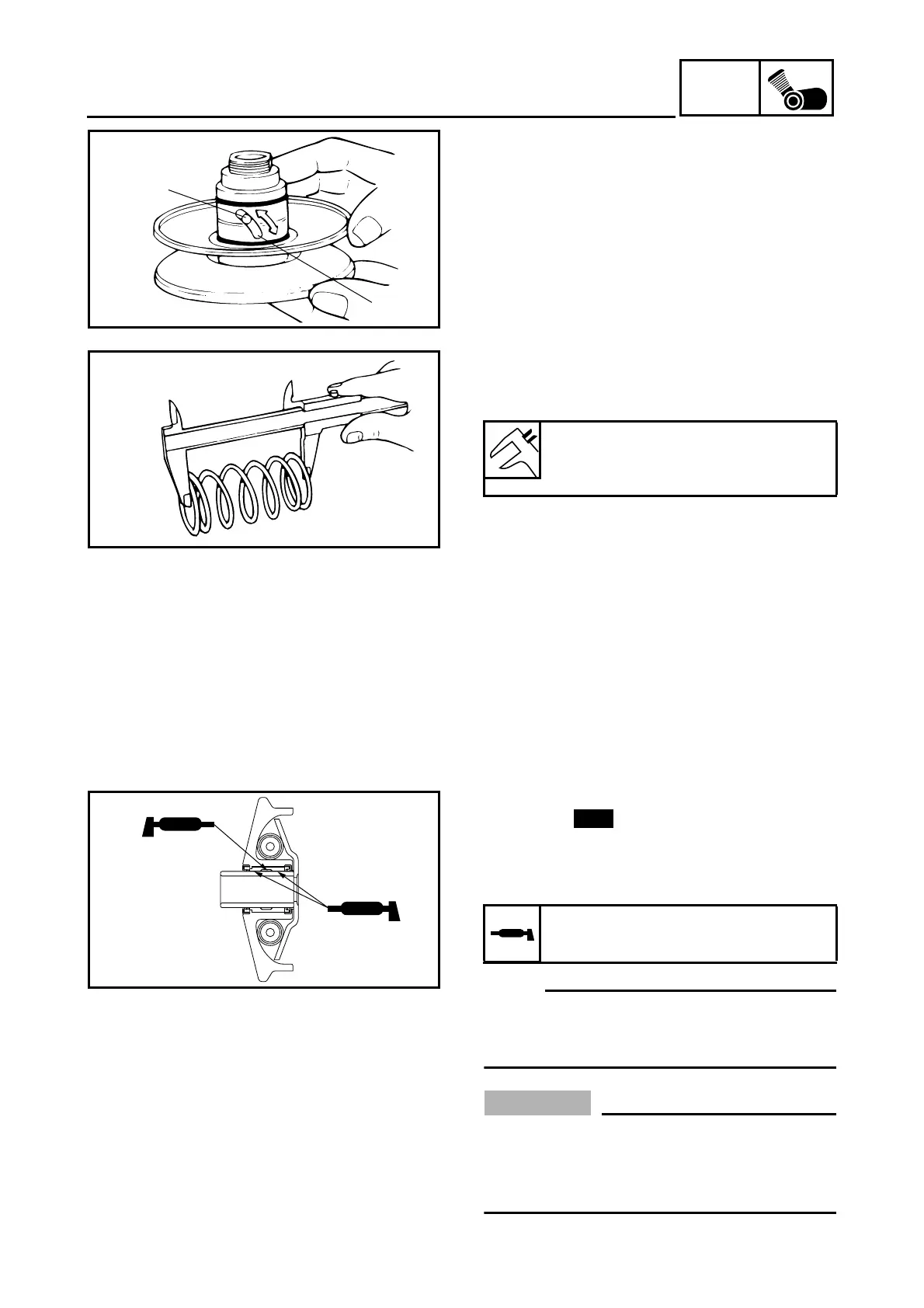

2. Check:
• torque cam groove 1
Damage/wear → Replace the secondary
fixed and sliding sheaves as a set.
3. Check:
• guide pin 2
Damage/wear → Replace the secondary
fixed and sliding sheaves as a set.
2
1
4. Check:
• spring free length
Out of specification → Replace the spring.
Spring free length
74.3 mm (2.93 in)
<Limit>: 70.6 mm (2.78 in)
EAS00323
ASSEMBLING THE PRIMARY SHEAVE
1. Clean:
• primary fixed sheave
• primary sliding sheave
• spacer
• primary sheave weights
2. Install:
• oil seal
3. Lubricate:
• primary sliding sheave
• spacer
NOTE:
Fill the notch of the primary sliding sheave with
grease. Apply grease to the inner surface of
the primary sliding sheave as shown.
CAUTION:
Do not get any grease on the surfaces of
the sheaves. If any grease gets on the
sheaves, be sure to wipe it off with alcohol,
etc.
Recommended lubricant
Shell Dolium Grease R
®
New
