Yamaha Mio - Installing the Fuel Tank

5 - 12
CARB
FUEL TANK
INSTALLING THE FUEL TANK
For installation, reverse the removal proce-
dure.
1. Install:
• fuel tank
• grab bar
2. Connect:
• vacuum hose
• fuel hose
• fuel sender coupler
Refer to “CABLE ROUTING” in chapter 2.
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)

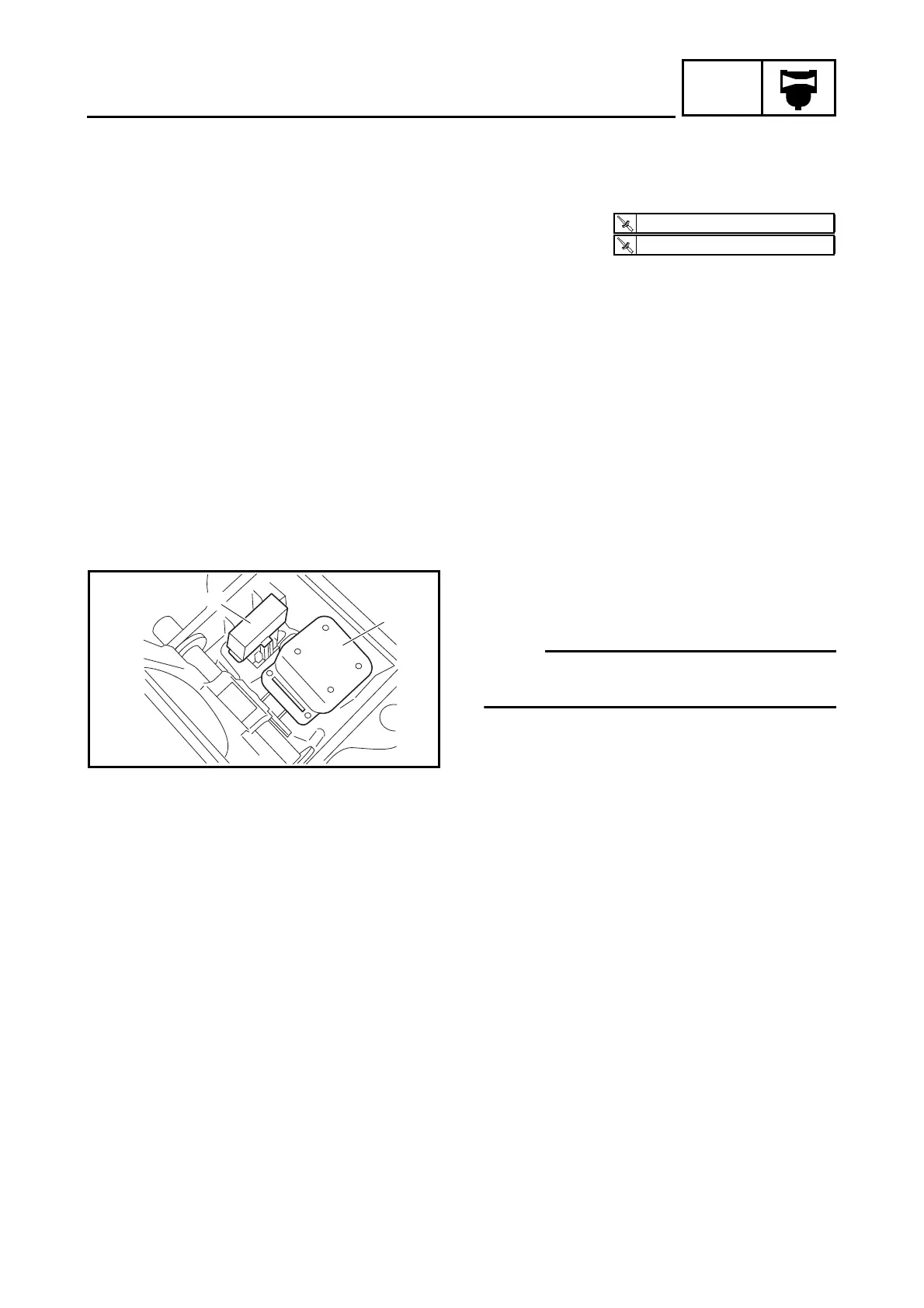

3. Install:
• fuse holder 1
• starter relay 2
NOTE:
Install the fuse holder and the starter relay in
the storage box as shown.
4. Connect:
• starter motor lead coupler
• starter relay lead coupler
• fuse connector
• battery breather hose 2
Refer to “CABLE ROUTING” in chapter 2.
1
2
