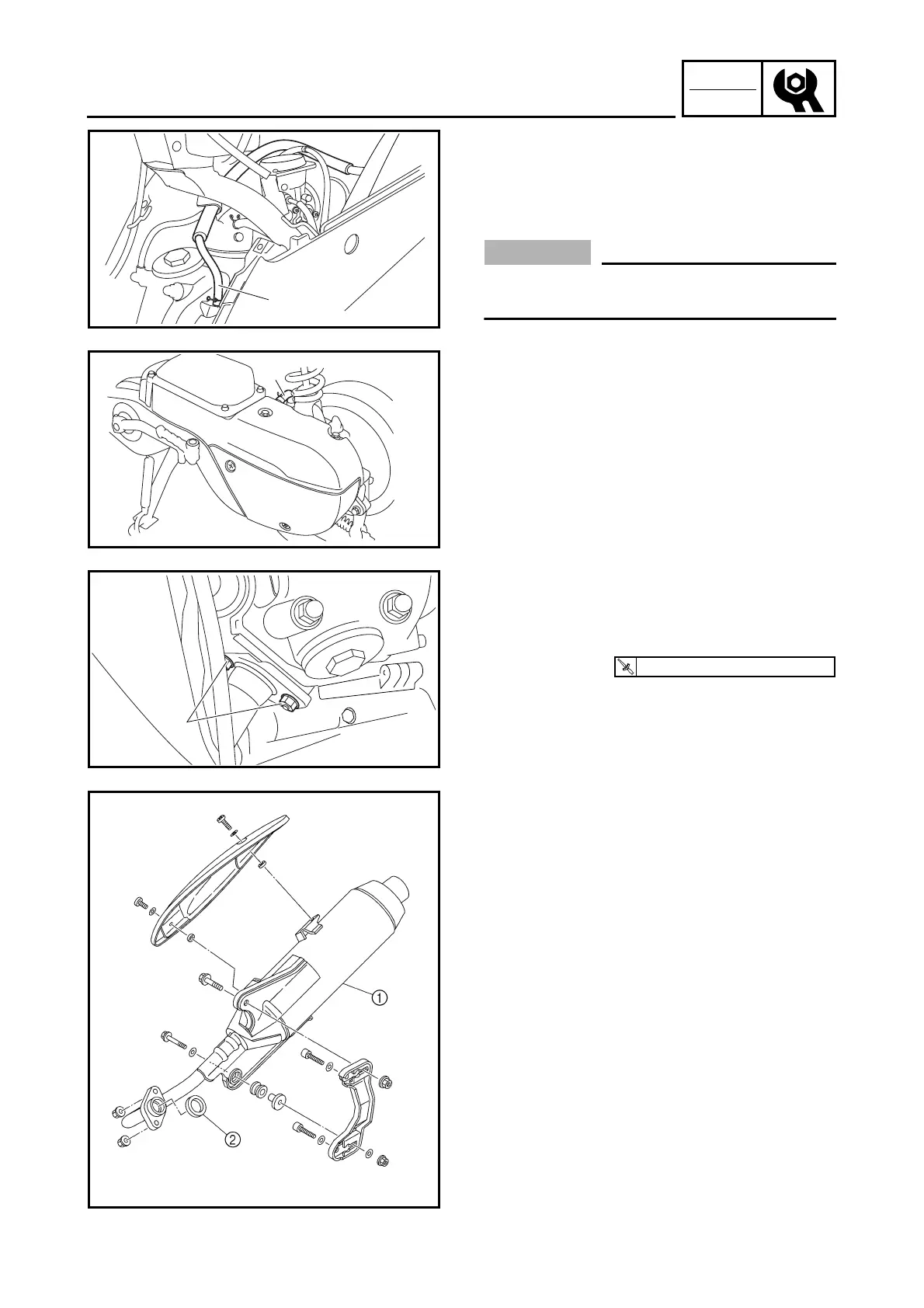

CHECKING THE BREATHER HOSES/
CHECKING THE EXHAUST SYSTEM
2. Check:
• cylinder head breather hose 1
• crankcase breather hose 2
Cracks/damage → Replace.
Loose connection → Connect properly.
CAUTION:
_
Make sure the cylinder head breather hose
is routed correctly.
3. Install:
• left side cover
• rear panel
• center cover
• seat
Refer to “INSTALLING THE SEAT AND
SIDE COVERS”.
1
2
CHECKING THE EXHAUST SYSTEM
1. Check:
• exhaust pipe nuts 1
Loose/damage → Tighten/replace.
1
T
R
.
.
20 Nm (2.0 m · kg, 14 ft · lb)
2. Check:
• muffler 1
Cracks/damage → Replace.
• exhaust pipe gasket 2
Exhaust gas leaks → Tighten/replace.
To Next Page
