4 - 40

ENG

KICKSTARTER

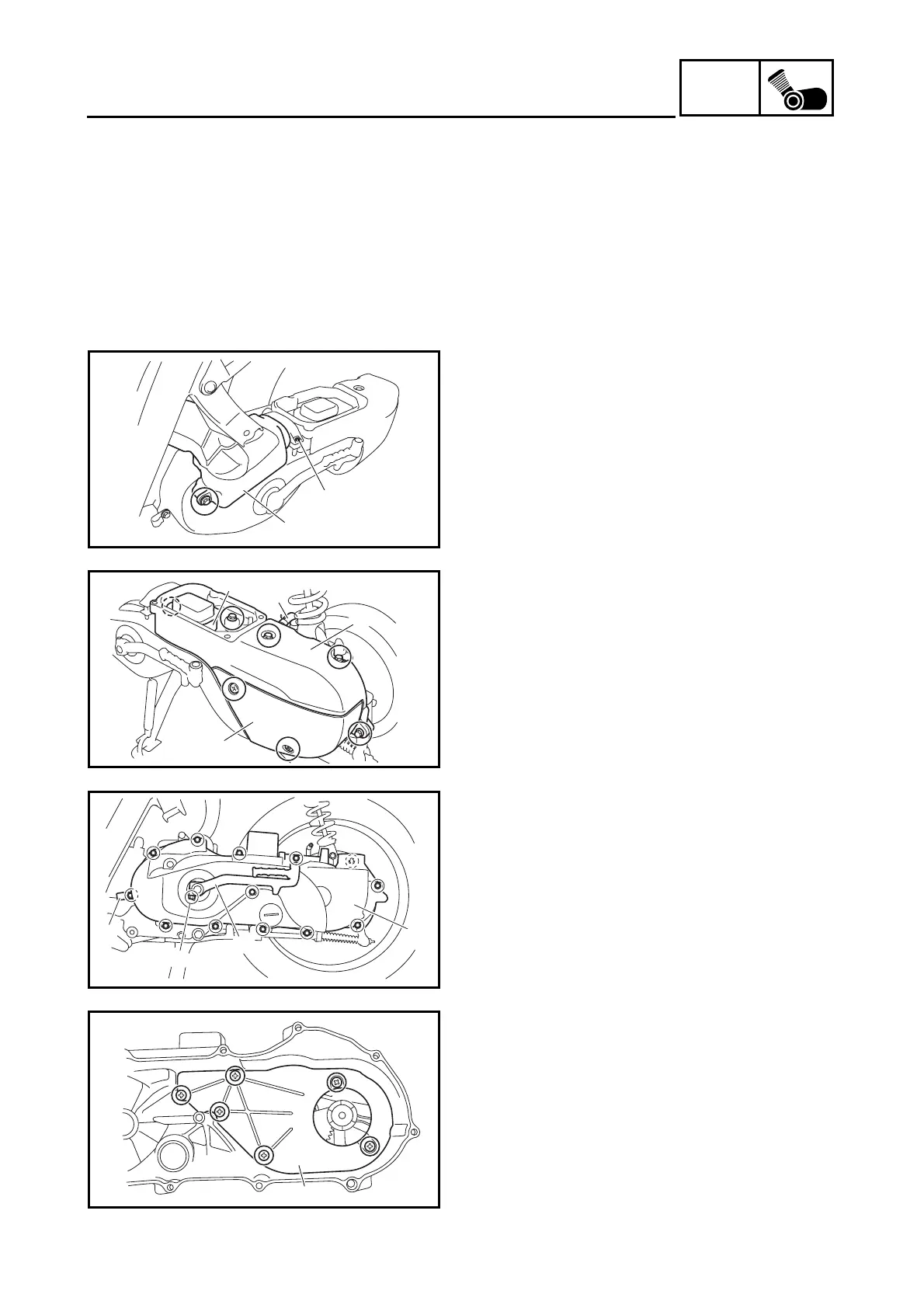

REMOVING THE KICKSTARTER

1. Remove:

• footboard

Refer to “REMOVING THE FRONT COWL-

ING AND LEG SHIELD” in chapter 3.

• V-belt case air filter element

Refer to “CLEANING THE V-BELT CASE

AIR FILTER ELEMENT” in chapter 3.

2. Loosen:

• V-belt case air filter joint screw 1

3. Remove:

• V-belt case air duct 2

4. Disconnect:

• crankcase breather hose 1

5. Remove:

• V-belt case air filter element guide 2

• V-belt case cover protector 1 3

• V-belt case cover protector 2 4

6. Remove:

• kickstarter crank bolt 1

• kickstarter crank 2

• fuel overflow hose holder 3

• V-belt case cover 4

• dowel pins

DISASSEMBLING THE KICKSTARTER

SHAFT

1. Remove:

• kickstarter shaft plate 1
