CYLINDER HEAD
EAS00225
REMOVING THE CYLINDER HEAD
1. Remove:
• footboard
Refer to “REMOVING THE FRONT COWL-
ING AND LEG SHIELD” in chapter 3.
2. Remove:
• fuel tank
Refer to “FUEL TANK” in chapter 5.
• air filter case
Refer to “AIR FILTER CASE” in chapter 5.
• carburetor assembly
Refer to “CARBURETOR” in chapter 5.
3. Remove:
• muffler
Refer to “REMOVING THE ENGINE”.

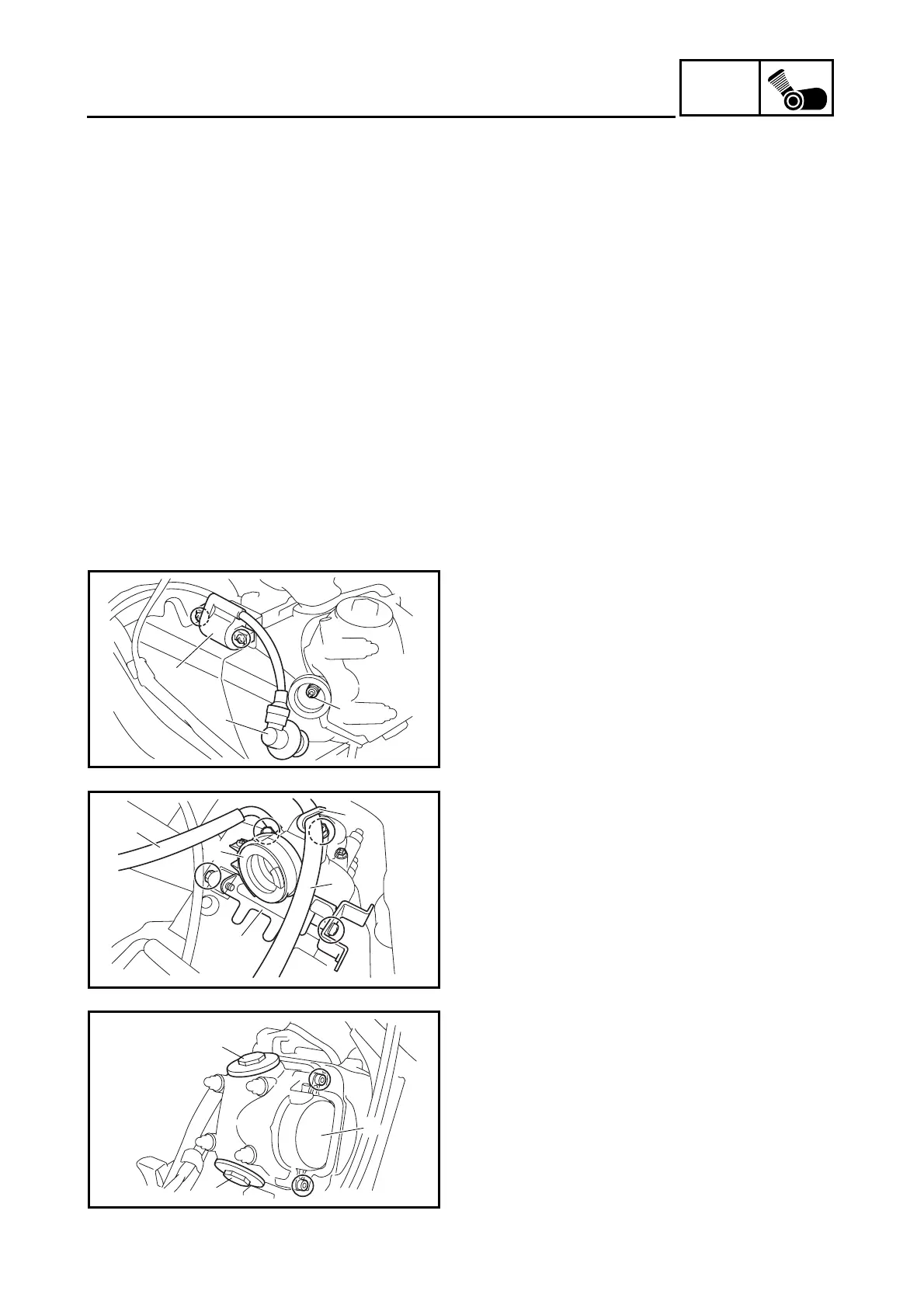

4. Remove:
• spark plug cap
1
• spark plug
2
• ignition coil assembly
3
1
2
3
5. Remove:
• vacuum hose
1
• cylinder head breather hose
2
• cylinder head breather hose holder
3
• intake manifold
4
• ignition coil assembly bracket 5
1
4
5
2
3
6. Remove:
• intake tappet cover 1
• exhaust tappet cover 2
• camshaft sprocket cover 3
(with the O-ring)
3
1
2
