SPECIAL TOOLS
EAS00027
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly. Use
only the appropriate special tools as this will help prevent damage caused by the use of inappropri-
ate tools or improvised techniques. Special tools, part numbers or both may differ depending on the
country.
When placing an order, refer to the list provided below to avoid any mistakes.

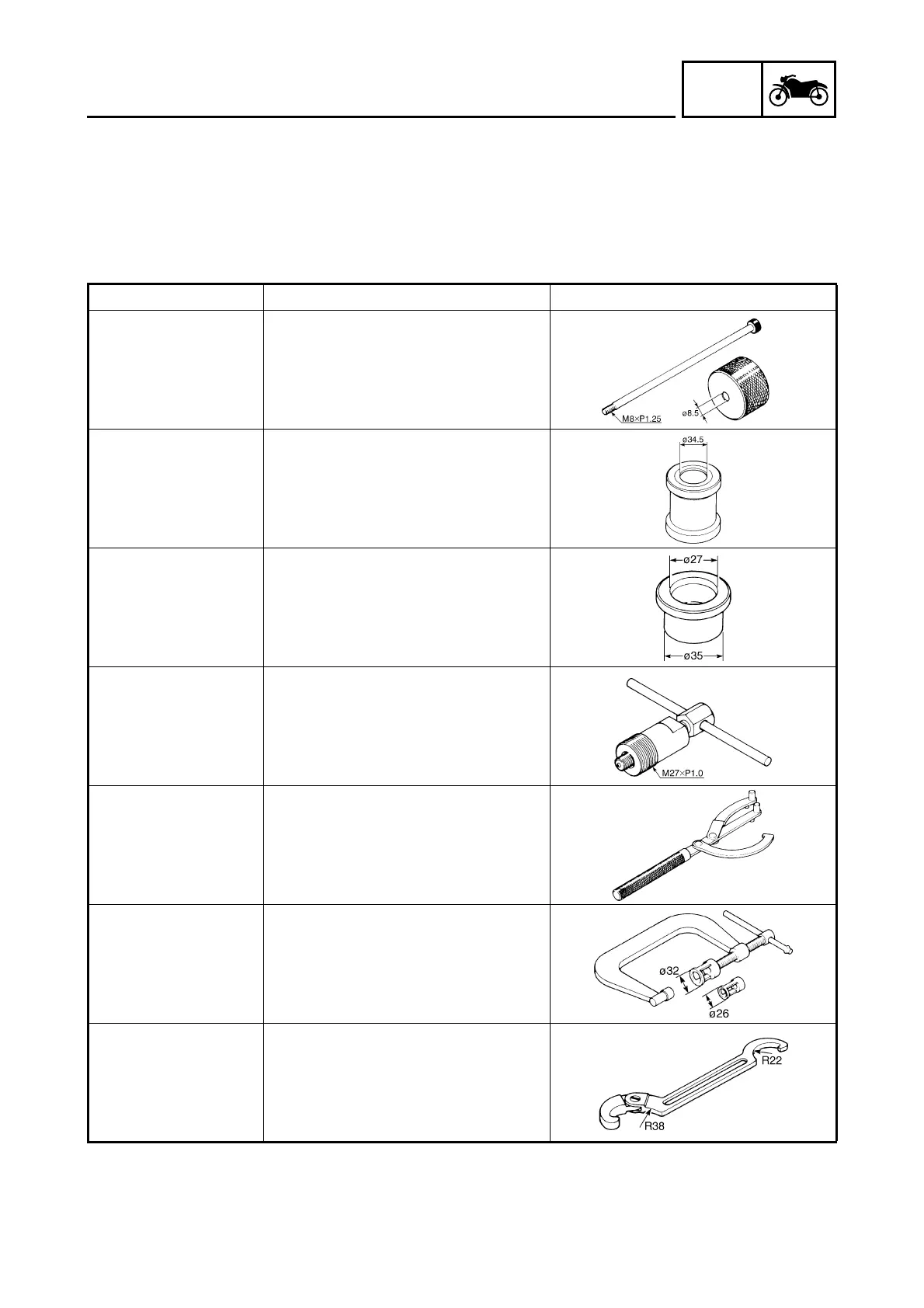

Tool No. Tool name/Usage Illustration
Weight
90890-01084
Slide hammer bolt
90890-01085
Weight
Slide hammer bolt
These tools are used when removing or
installing the rocker arm shafts.
90890-01184
Fork seal driver weight
This tool is used to installing the oil seal.
90890-01186
Fork seal driver attachment
This tool is used to installing the oil seal.
90890-01189
Flywheel puller
This tool is used for removing the A.C.
magneto rotor.
90890-01235
Rotor holding tool
This tool is used to hold the A.C. mag-
neto rotor when removing or installing
the A.C. magneto rotor nut.
Compressor
90890-01253
Attachment
90890-01243
Valve spring compressor
Valve spring compressor attachment
These tools are used when removing or
installing the valve and the valve spring.
90890-01268
Ring nut wrench
This tool is used to loosen and tighten
the steering ring nut.

Yamaha Mio Specifications

General

Fuel System	Fuel Injection
Front Suspension	Telescopic Fork
Rear Suspension	Unit Swing
Overall Width	685 mm
Front Brake	Disc
Rear Brake	Drum
Fuel Tank Capacity	4.2 liters
Tire Size (Front)	70/90-14
Tire Size (Rear)	80/90-14
Starting System	Electric and kick starter
Wheelbase	1, 260 mm
Engine Type	Air-cooled, 4-stroke, SOHC
