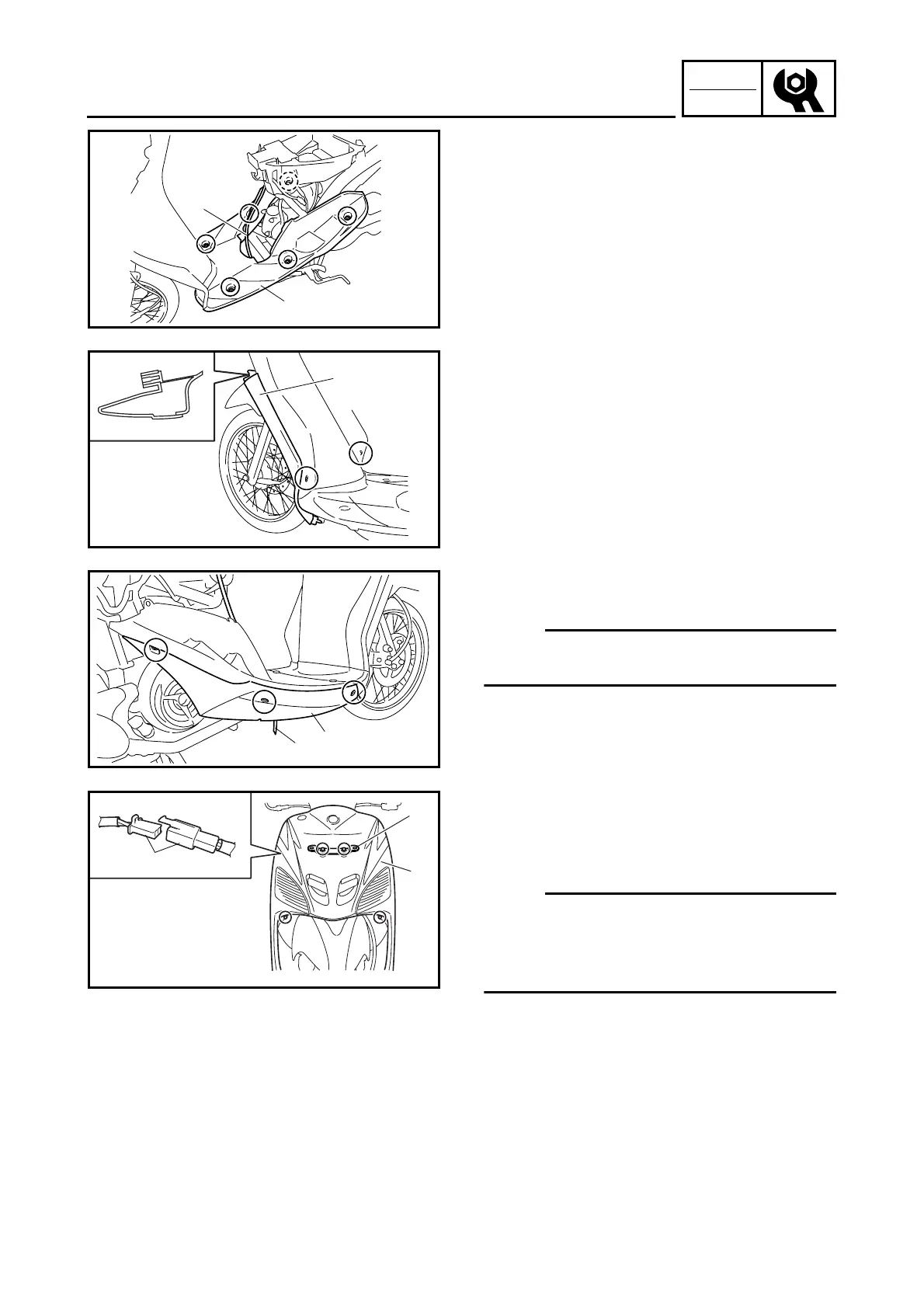

INSTALLING THE FRONT COWLING AND
LEG SHIELD
For installation, reverse the removal proce-
dure.
1. Install:
• footboard 1
• battery breather hose 2 2
Refer to “CABLE ROUTING” in chapter 2.
2
1
2. Install:
• front bottom cowling 1
1
3. Install:
• bottom cowling 1
NOTE:
Be sure to pass the battery breather hose 2 2
through the hole in the bottom cowling.
1
2
4. Install:
• front cowling 1
• spacer
• license plate bracket 2
NOTE:
Connect the front turn signal light couplers (left
and right) 3, and then install the couplers in
the holders on the front cowling. Refer to
“CABLE ROUTING” in chapter 2.
3
1
2
