6 - 1
CHAS
EASF0044
CHASSIS

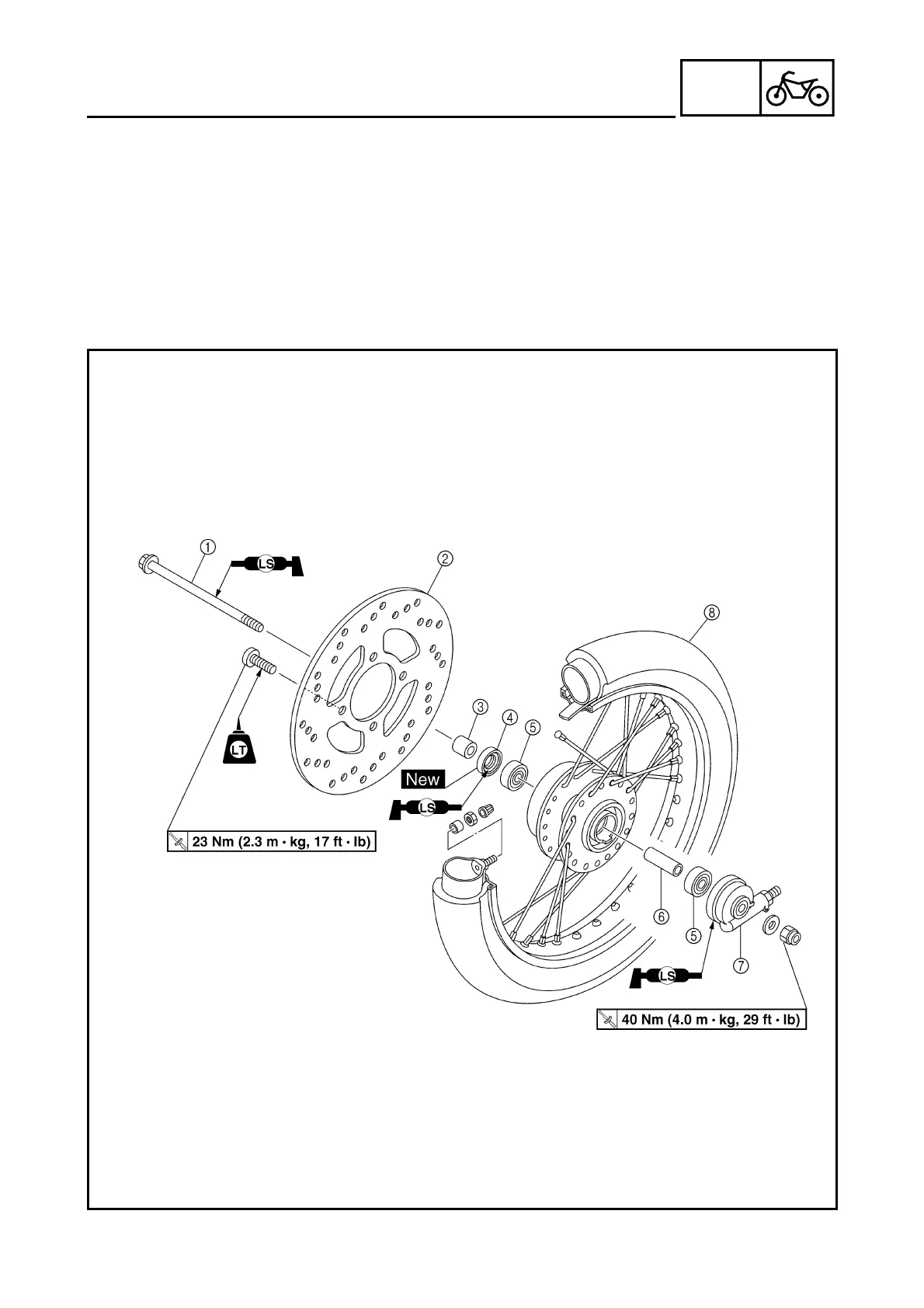

FRONT WHEEL AND BRAKE DISC
1
Front wheel axle
2
Brake disc
3
Spacer
4
Oil seal
5
Bearing
6
Spacer
7
Speedometer gear unit
8
Front wheel
FRONT WHEEL AND BRAKE DISC
