COVERS
EASF0004
COVERS

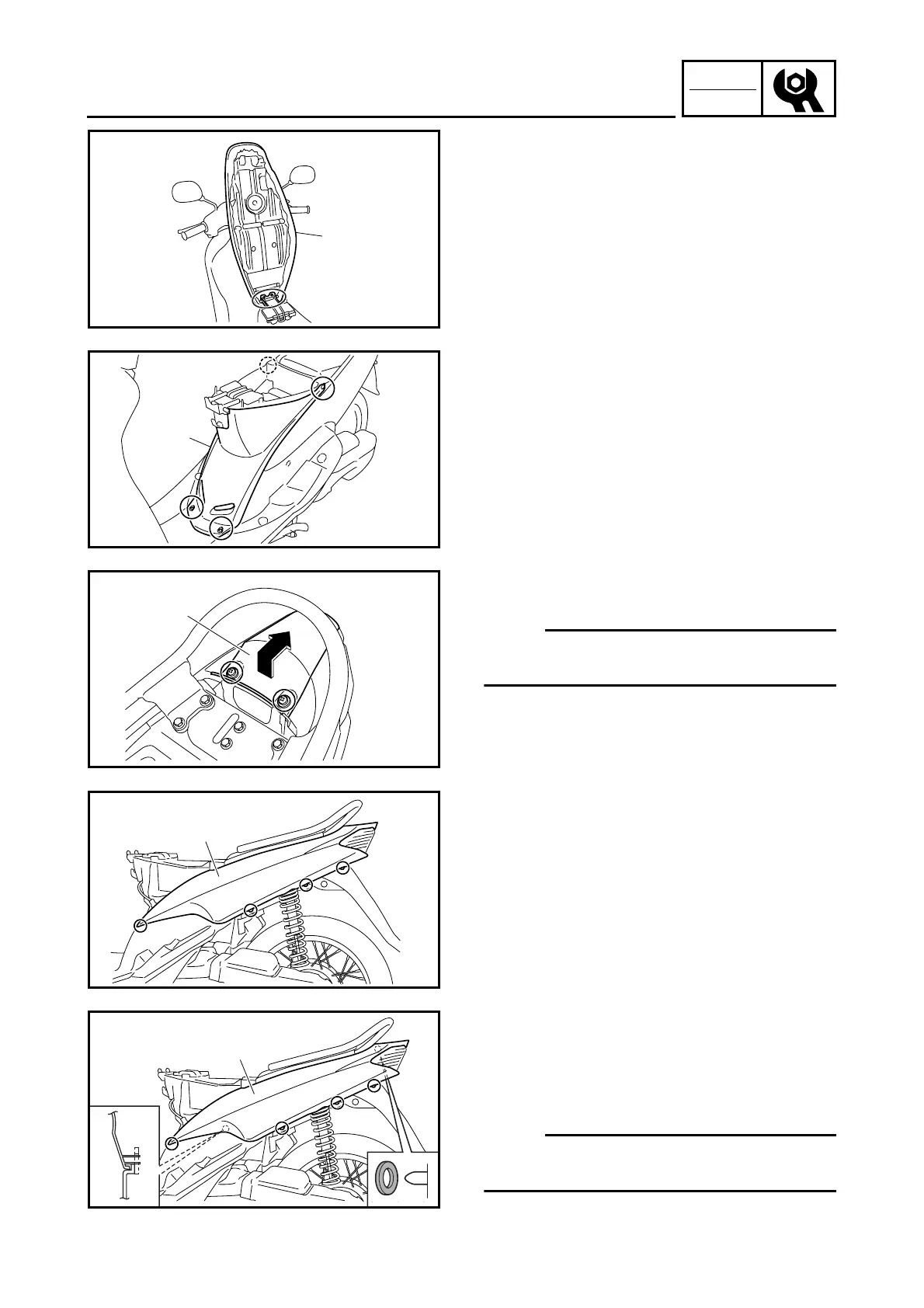

REMOVING THE SEAT AND SIDE COVERS
1. Remove:
• seat
1
1
2. Remove:
• center cover
1
1
3. Remove:
• rear panel
1
NOTE:
Remove the rear panel by sliding it up in the
direction of the arrow shown.
1
4. Remove:
• side cover (left and right)
1
1
INSTALLING THE SEAT AND SIDE COVERS
For installation, reverse the removal proce-
dure.
1. Install:
• side cover (left and right)
1
NOTE:
Before tightening the side cover screws, make
sure that all projections are securely fitted.
1
