Yamaha Mio - Kickstarter

4 - 39
ENG

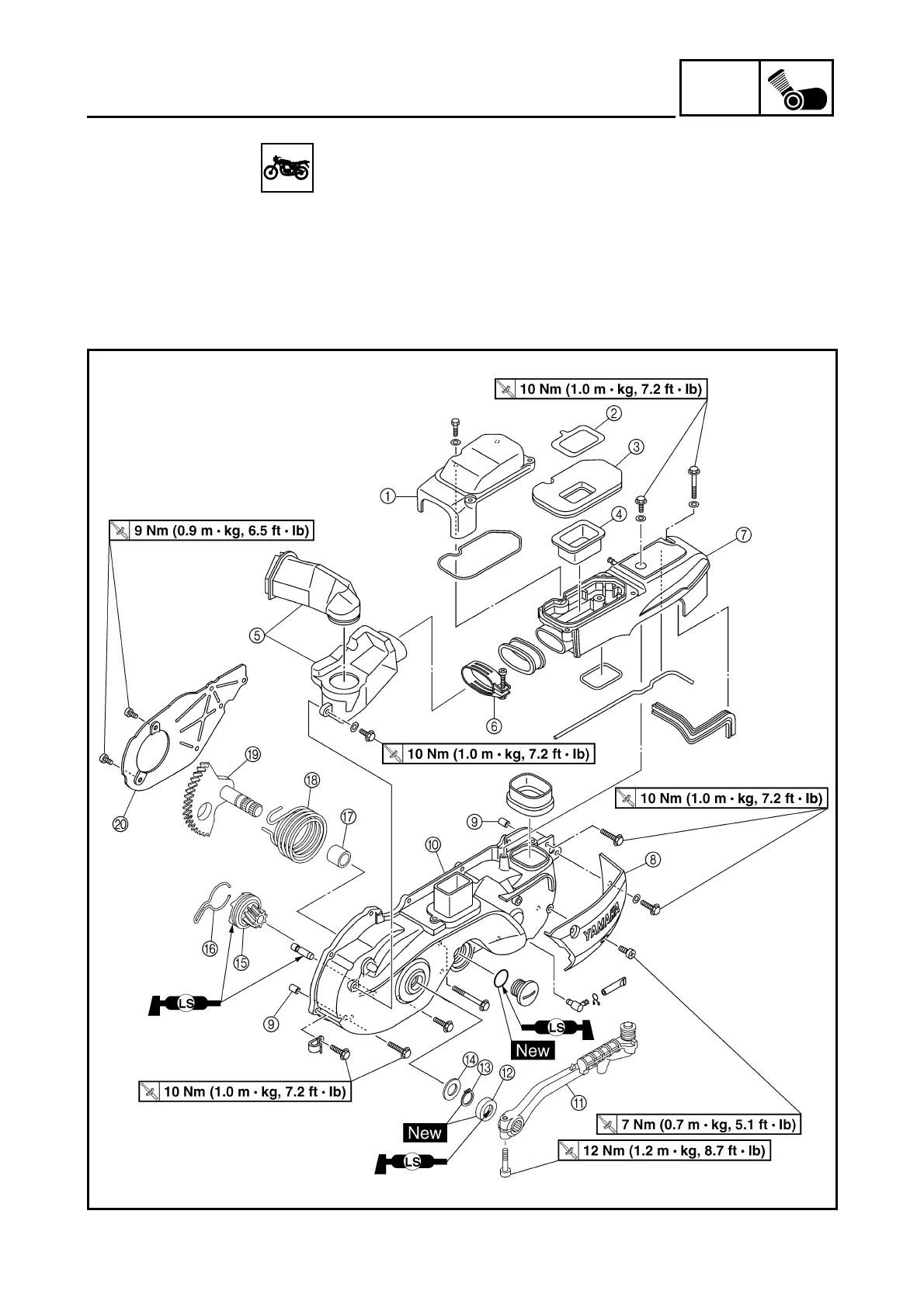

KICKSTARTER
EASF0033
KICKSTARTER
1
V-belt case air filter cover
2
V-belt case air filter dust seal
3
V-belt case air filter element
4
V-belt case air filter element
guide
5
V-belt case air duct
6
V-belt case air filter joint
7
V-belt case cover protector 2
8
V-belt case cover protector 1
9
Dowel pin
0
V-belt case cover
A
Kickstarter crank
B
Oil seal
C
Circlip
D
Washer
E
Kickstarter pinion gear
F
Kickstarter pinion gear clip
G
Spacer
H
Kickstarter spring
I
Kickstarter shaft
J
Kickstarter shaft plate
