Yamaha Mio - Assembling the Secondary Sheave

4 - 53
ENG
BELT DRIVE
EAS00324

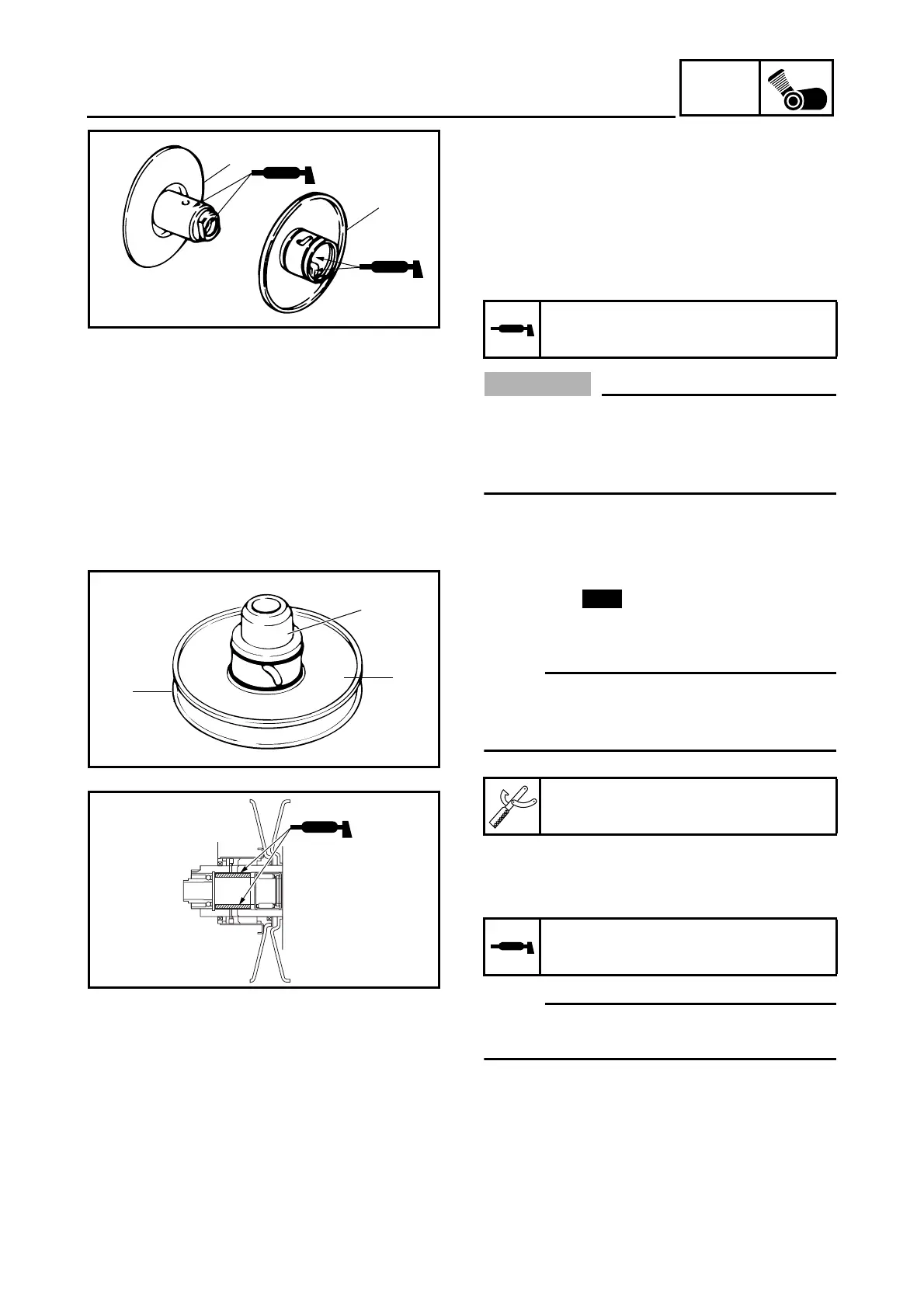

ASSEMBLING THE SECONDARY SHEAVE
1. Lubricate:
• secondary fixed sheave’s inner surface
1
• secondary sliding sheave’s inner surface
2
• oil seals
• bearings
(with the recommended lubricant)
CAUTION:
Do not get any grease on the surfaces of
the sheaves. If any grease gets on the
sheaves, be sure to wipe it off with alcohol,
etc.
Recommended lubricant
Shell Dolium Grease R
®
1
2
2. Install:
• oil seals
• secondary sliding sheave
1
• secondary fixed sheave
2
NOTE:
_
Install the secondary sliding sheave onto the
secondary fixed sheave
2
with the oil seal
guide
3.
3. Lubricate:
• secondary sliding sheave’s inner surface
(with the recommended lubricant)
NOTE:
Apply 3 cc of Shell Dolium Grease R
®
to the
inner surface of the secondary fixed sheave.
Oil seal guide
90890-01384
Recommended lubricant
Shell Dolium Grease R
®
2
1
3
New
