Yamaha Mio - Removing the Rear Wheel and Rear Brake

6 - 10
CHAS
REAR WHEEL AND BRAKE
EAS00563

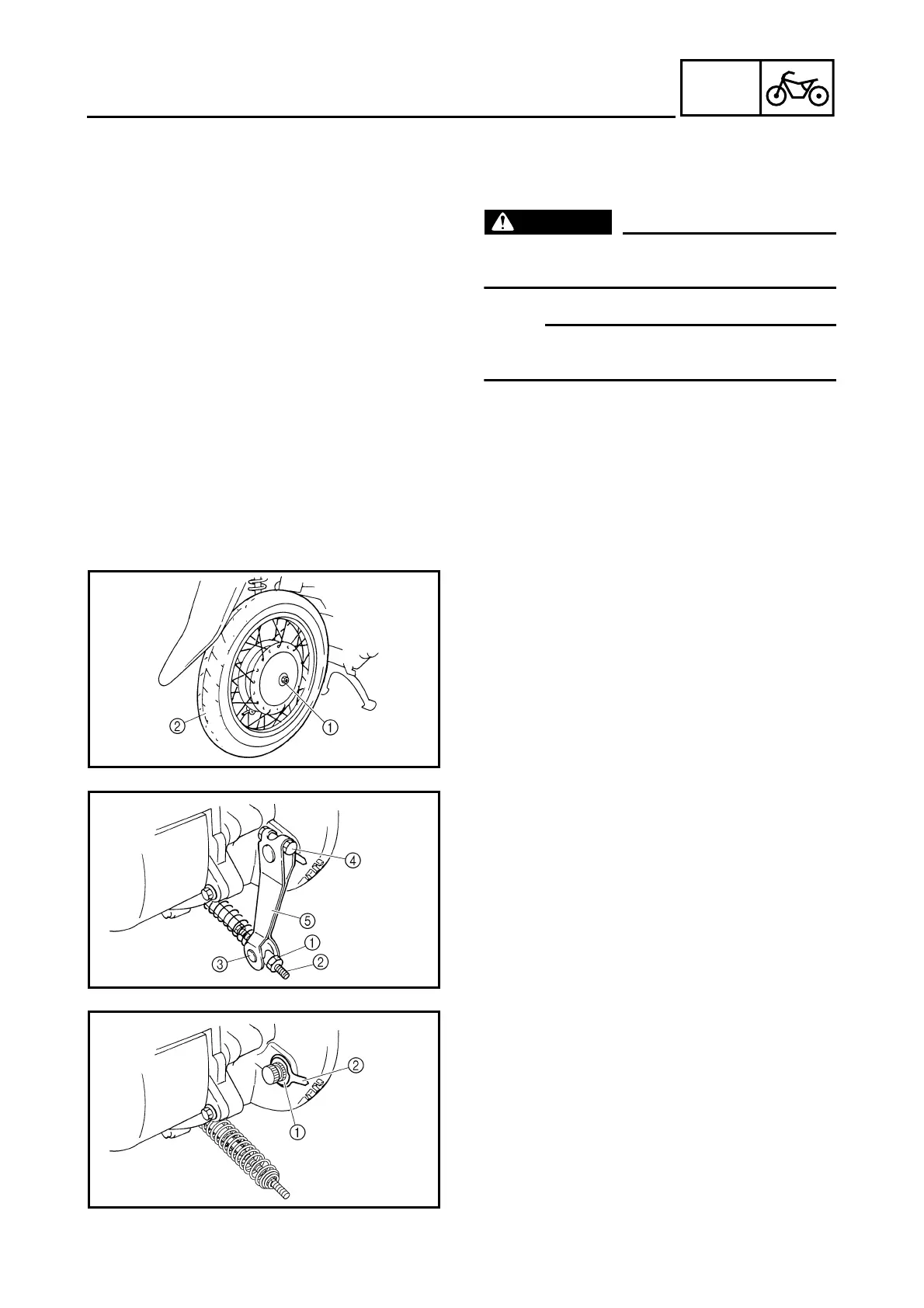

REMOVING THE REAR WHEEL AND REAR
BRAKE
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
NOTE:
_
Place the motorcycle on a suitable stand so
that the rear wheel is elevated.
2. Remove:
• muffler
Refer to “REMOVING THE ENGINE” in
chapter 4.
3. Remove:
• wheel axle nut
1
• washer
• rear wheel
2
4. Remove:
• adjusting nut
1
• rear brake cable
2
• pin
3
• brake camshaft lever bolt
4
• brake camshaft lever
5
5. Remove:
• wave washer
1
• brake shoe wear indicator
2
