Yamaha Mio - Removing the Secondary Sheave and V-Belt

4 - 46
ENG
BELT DRIVE
EAS00318

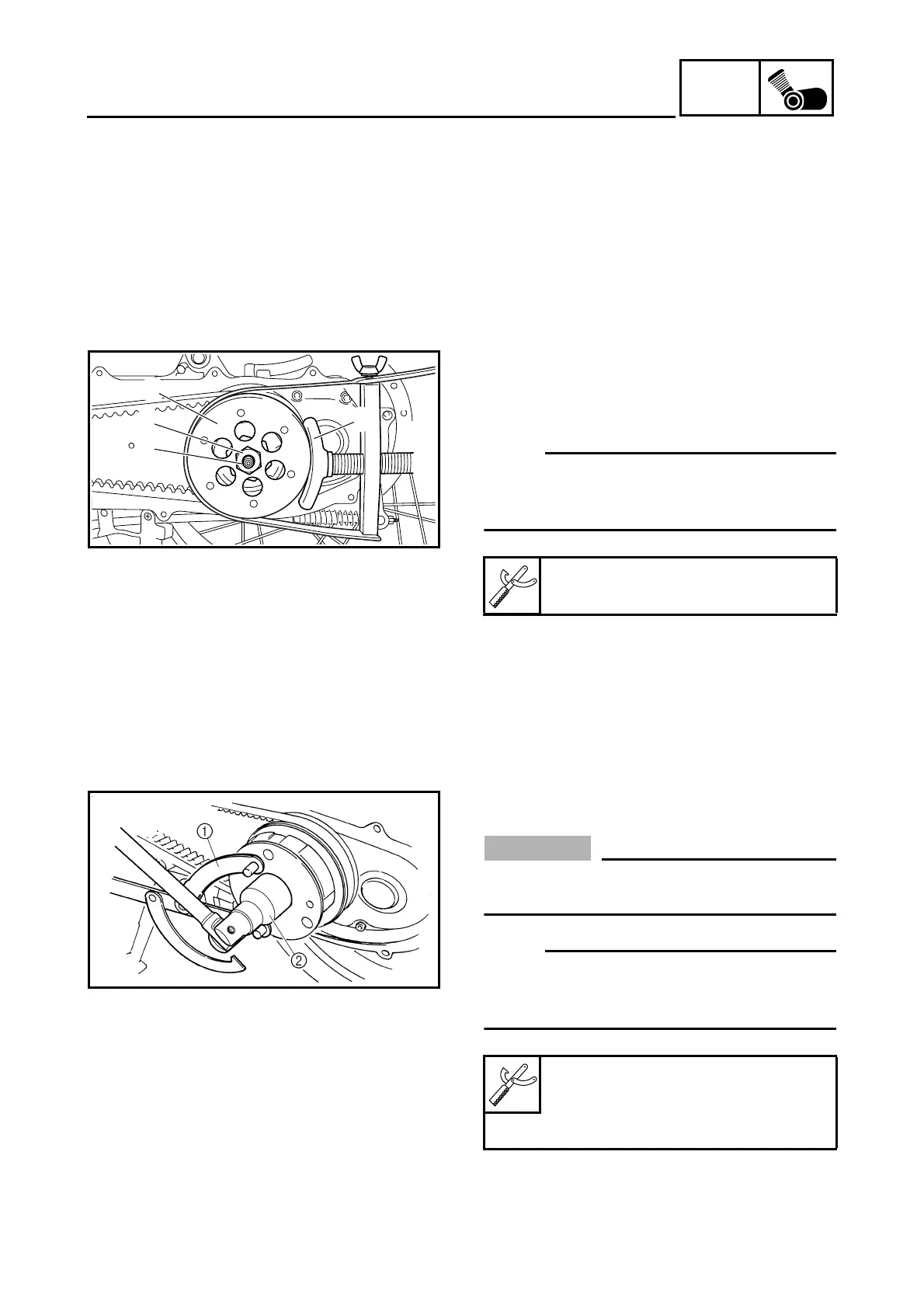

REMOVING THE SECONDARY SHEAVE
AND V-BELT
1. Remove:
• footboard
Refer to “REMOVING THE FRONT COWL-
ING AND LEG SHIELD” in chapter 3.
2. Remove:
• V-belt case cover
Refer to “KICKSTARTER”.
3. Remove:
• O-ring
1
• secondary sheave nut
2
• clutch housing
3
NOTE:
_
While holding the clutch housing with the
sheave holder
4
, loosen the secondary
sheave nut.
Sheave holder
90890-01701
3
2
1
4
4. Loosen:
• clutch carrier nut
CAUTION:
_
Do not remove the clutch carrier nut at this
stage.
NOTE:
_
While holding the clutch carrier with the rotor
holding tool
1
, loosen the clutch carrier nut
one full turn with the socket wrench
2
.
Rotor holding tool
90890-01235
Socket wrench
90890-01493
