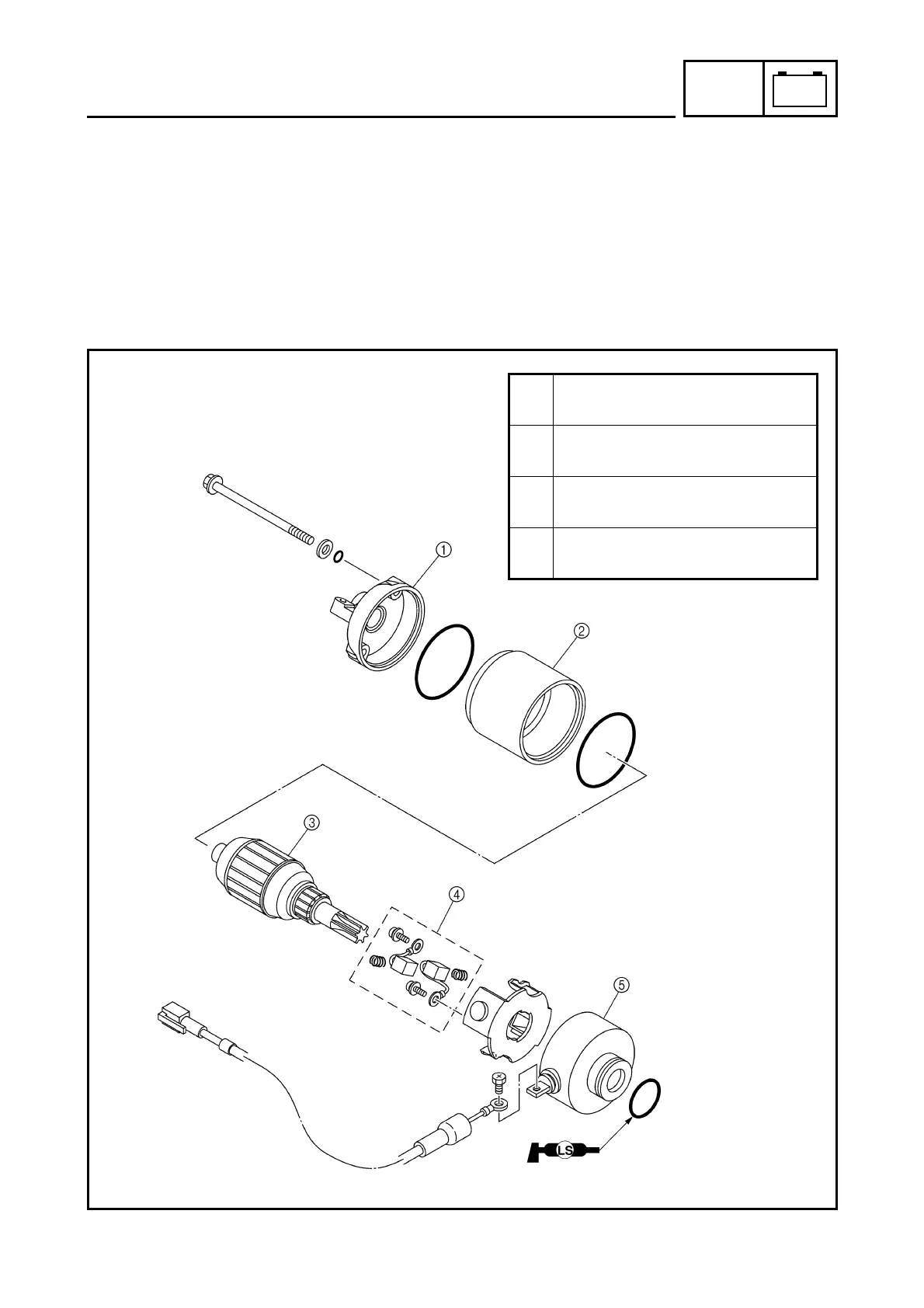

STARTER MOTOR
EASF0767
STARTER MOTOR
1
Starter motor rear cover
2
Starter motor yoke
3
Armature
4
Bush set
5
Starter motor front cover assembly
A
BRUSH LENGTH LIMIT:
3.5 mm (0.14 in)
B
COMMUTATOR WEAR LIMIT:
21 mm (0.83 in)
C
MICA UNDER CUT:
1.5 mm (0.06 in)
D
ARMATURE COIL RESISTANCE:
0.032 ~ 0.039
Ω
at 20 °C (68 °F)
