4 - 49
ENG
BELT DRIVE
EAS00290

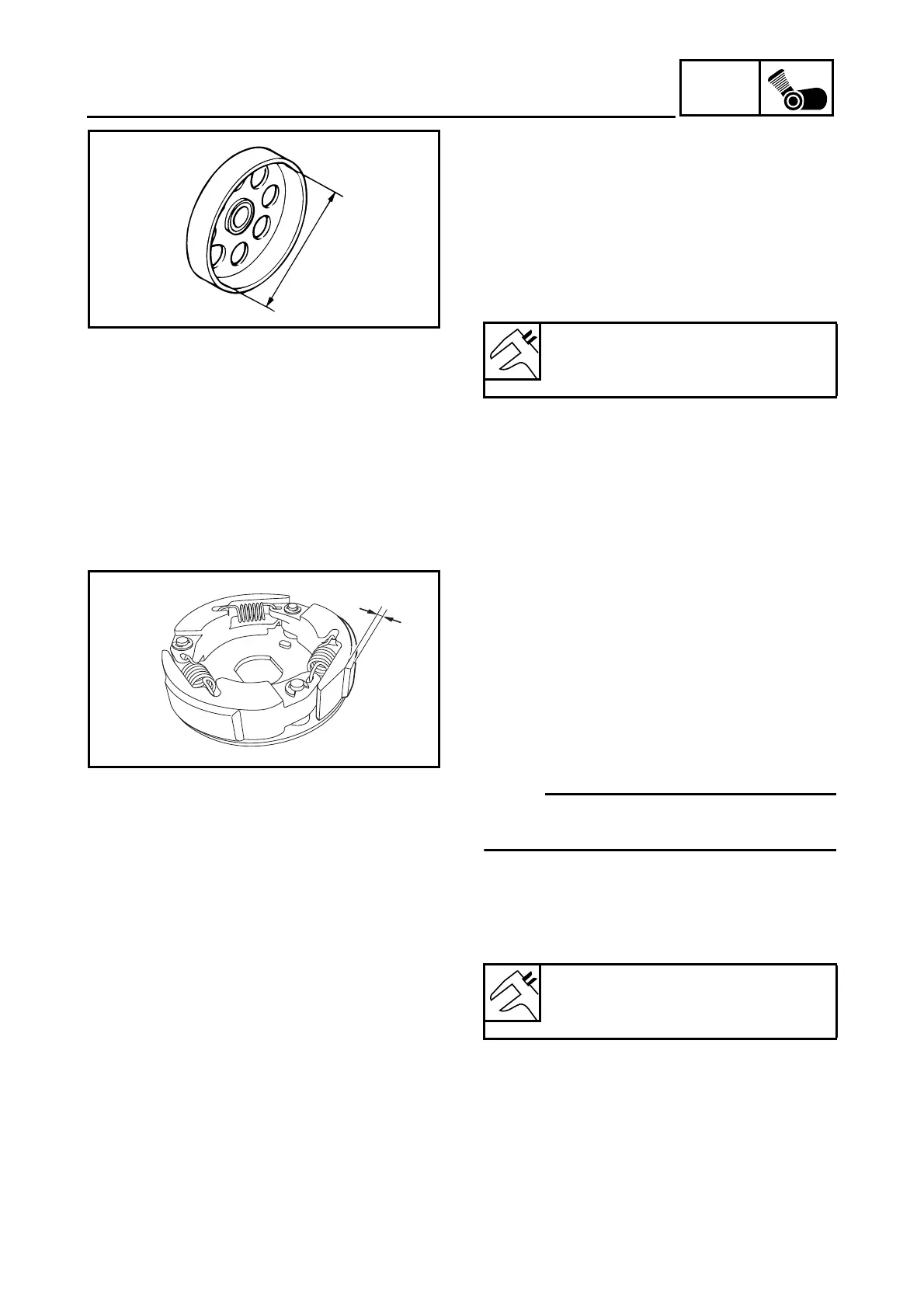

CHECKING THE CLUTCH HOUSING
1. Check:
• clutch housing
Damage/wear
→
Replace.
2. Measure:
• clutch housing inside diameter
a
Out of specification
→
Replace the clutch
housing.
Clutch housing inside diameter
112 mm (4.41 in)
<Limit>: 112.5 mm (4.43 in)
a
EAS00291
CHECKING THE CLUTCH SHOES
The following procedure applies to all of the
clutch shoes.
1. Check:
• clutch shoe
Damage/wear
→
Replace the clutch shoes
and springs as a set.
Glazed areas
→
Sand with course sandpa-
per.
NOTE:
_
After sanding the glazed areas, clean the
clutch with a cloth.
2. Measure:
• clutch shoe thickness
a
Out of specification
→
Replace the clutch
shoes and springs as a set.
Clutch shoe thickness
3.0 mm (0.12 in)
<Limit>: 1.0 mm (0.04 in)
a
