Yamaha Mio - Checking the Crankshaft and Connecting Rod; Checking the Timing Chain and Timing Chain Guide

4 - 76
ENG
CRANKSHAFT
EAS00207

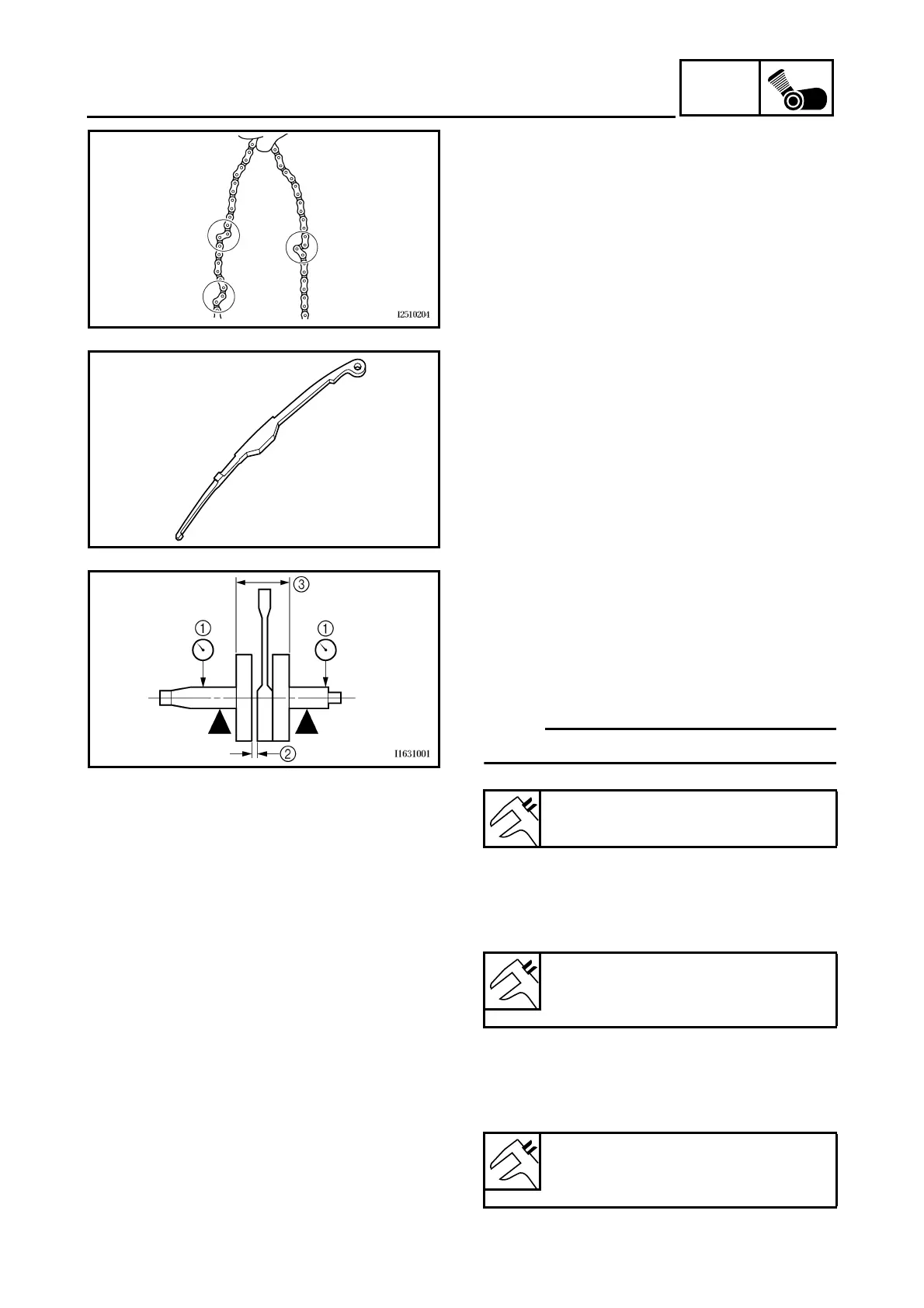

CHECKING THE TIMING CHAIN AND
TIMING CHAIN GUIDE
1. Check:
• timing chain
Damage/stiffness
→
Replace the timing
chain and camshaft sprocket as a set.
2. Check:
• timing chain guide (intake side)
Damage/wear
→
Replace.
EAS00394
CHECKING THE CRANKSHAFT AND
CONNECTING ROD
1. Measure:
• crankshaft runout
1
Out of specification
→
Replace the crank-
shaft, bearing or both.
NOTE:
_
Turn the crankshaft slowly.
2. Measure:
• big end side clearance
2
Out of specification
→
Replace the crank-
shaft.
3. Measure:
• crankshaft width
3
Out of specification
→
Replace the crank-
shaft.
Maximum crankshaft runout
0.03 mm (0.0012 in)
Big end side clearance
0.15 ~ 0.45 mm
(0.0059 ~ 0.0177 in)
Crankshaft width
45.45 ~ 45.50 mm
(1.789 ~ 1.791 in)
