Yamaha Mio - Crankshaft

4 - 73
ENG

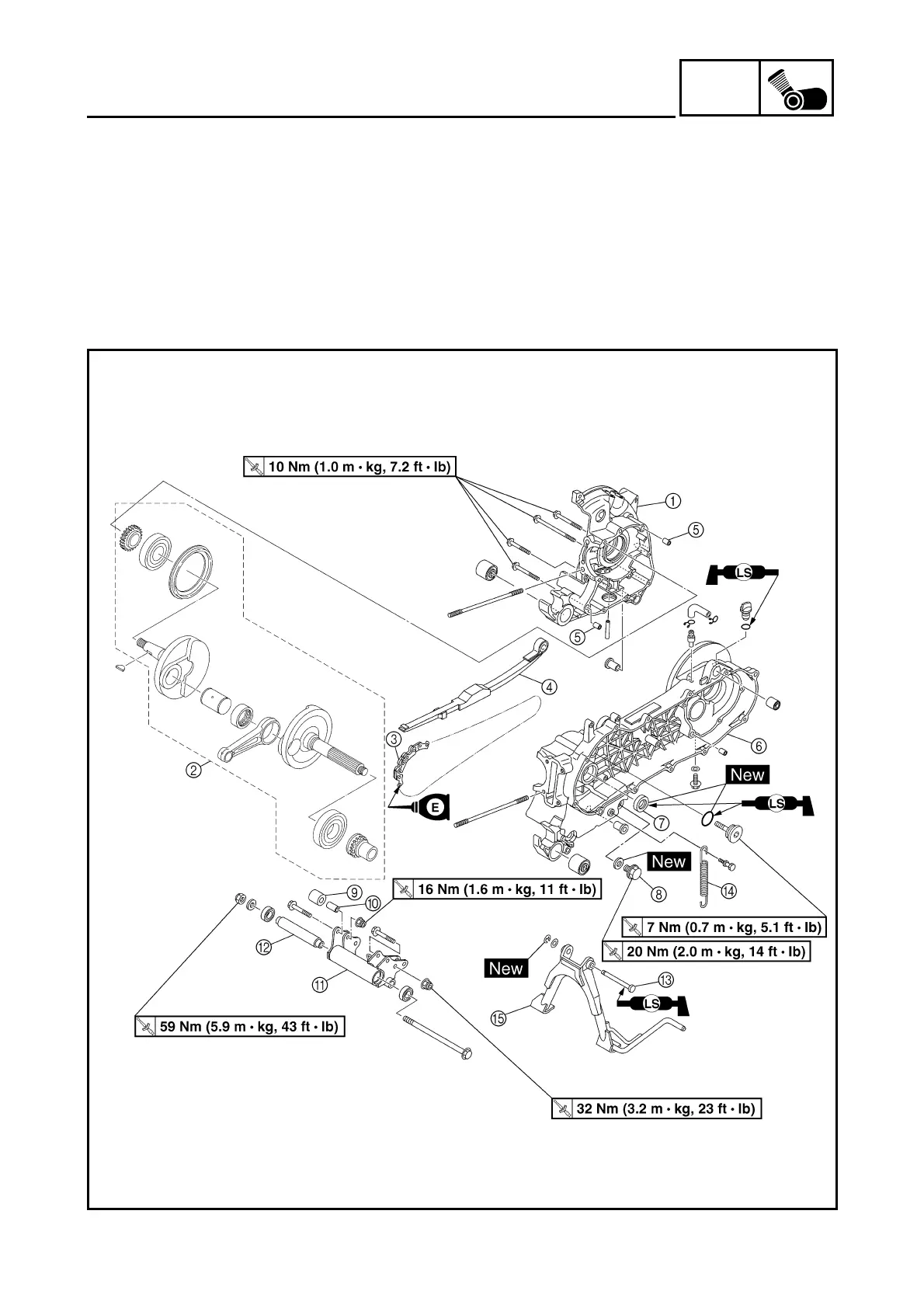

CRANKSHAFT
EASF0037
CRANKSHAFT
1
Crankcase (right)
2
Crankshaft assembly
3
Timing chain
4
Timing chain guide (intake side)
5
Dowel pin
6
Crankcase (left)
7
Oil seal
8
Engine drain bolt
9
Rubber damper
0
Collar
A
Engine bracket
B
Spacer
C
Centerstand shaft
D
Centerstand spring
E
Centerstand
