Yamaha Mio - Cleaning the V-Belt Case Air Filter Element

3 - 21
CHK
ADJ

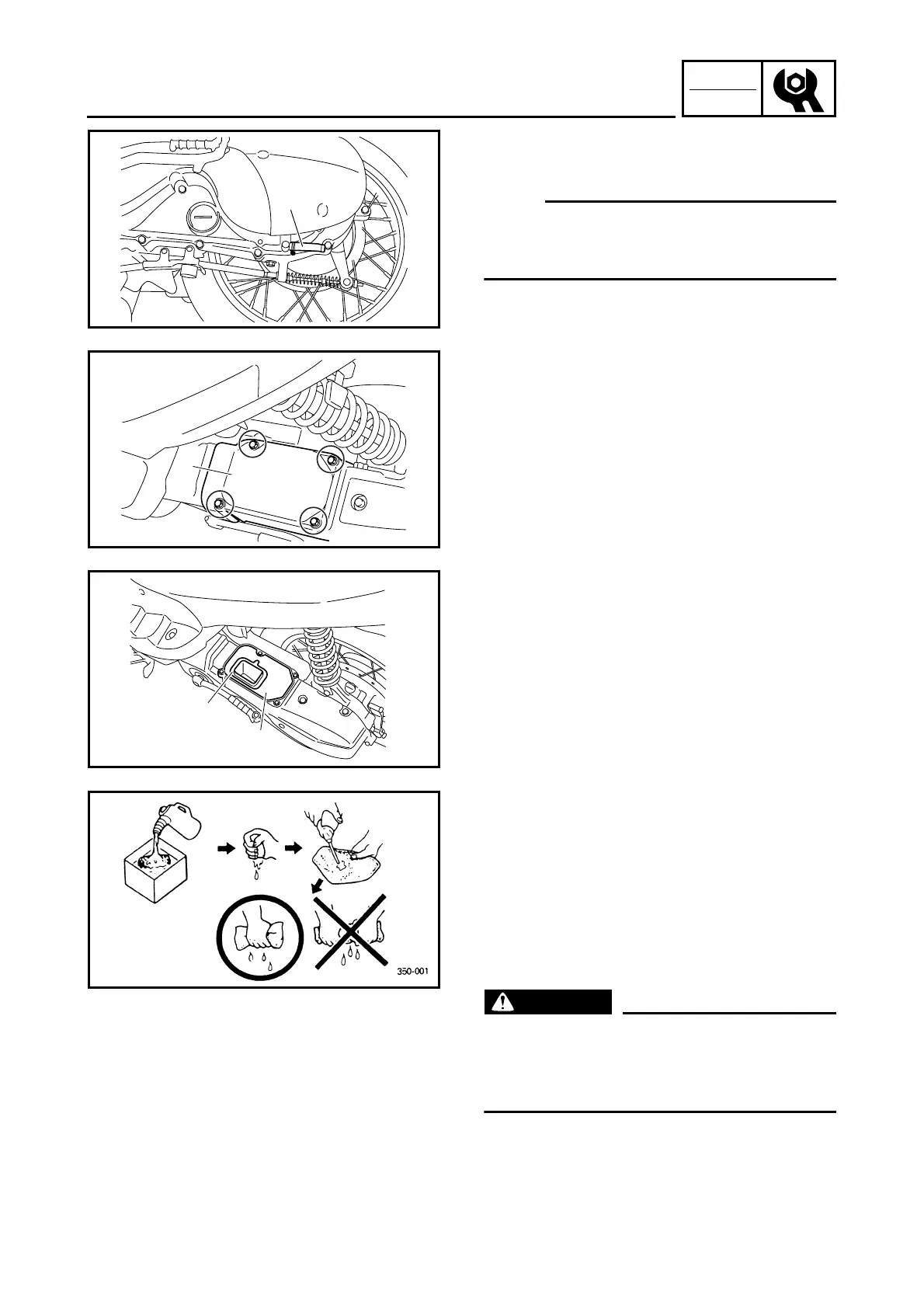

CLEANING THE V-BELT CASE AIR FILTER ELEMENT
EAS00091
CLEANING THE V-BELT CASE AIR FILTER
ELEMENT
NOTE:
_
On the bottom of the V-belt case cover is a
check hose
1
. If dust or water or both collects
in this hose, clean the V-belt air filter elements.
1
1. Remove:
• V-belt case air filter cover
2
• V-belt case air filter dust seal 3
• V-belt case air filter element 4
2
3
4
2. Clean:
• V-belt case air filter dust seal
Wipe the V-belt case air filter dust seal
clean with a dry cloth.
3. Clean:
• V-belt case air filter element
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Wash the element gently, but thoroughly in
solvent.
WARNING
_
Use a cleaning solvent which is designed
to clean parts only. Never use gasoline or
low flash point solvents as they may cause
a fire or explosion.
b. Squeeze the excess solvent out of the ele-
ment and let it dry.
