Yamaha Scorpio - Generator Rotor Removal

4 - 38
ENG
GENERATOR

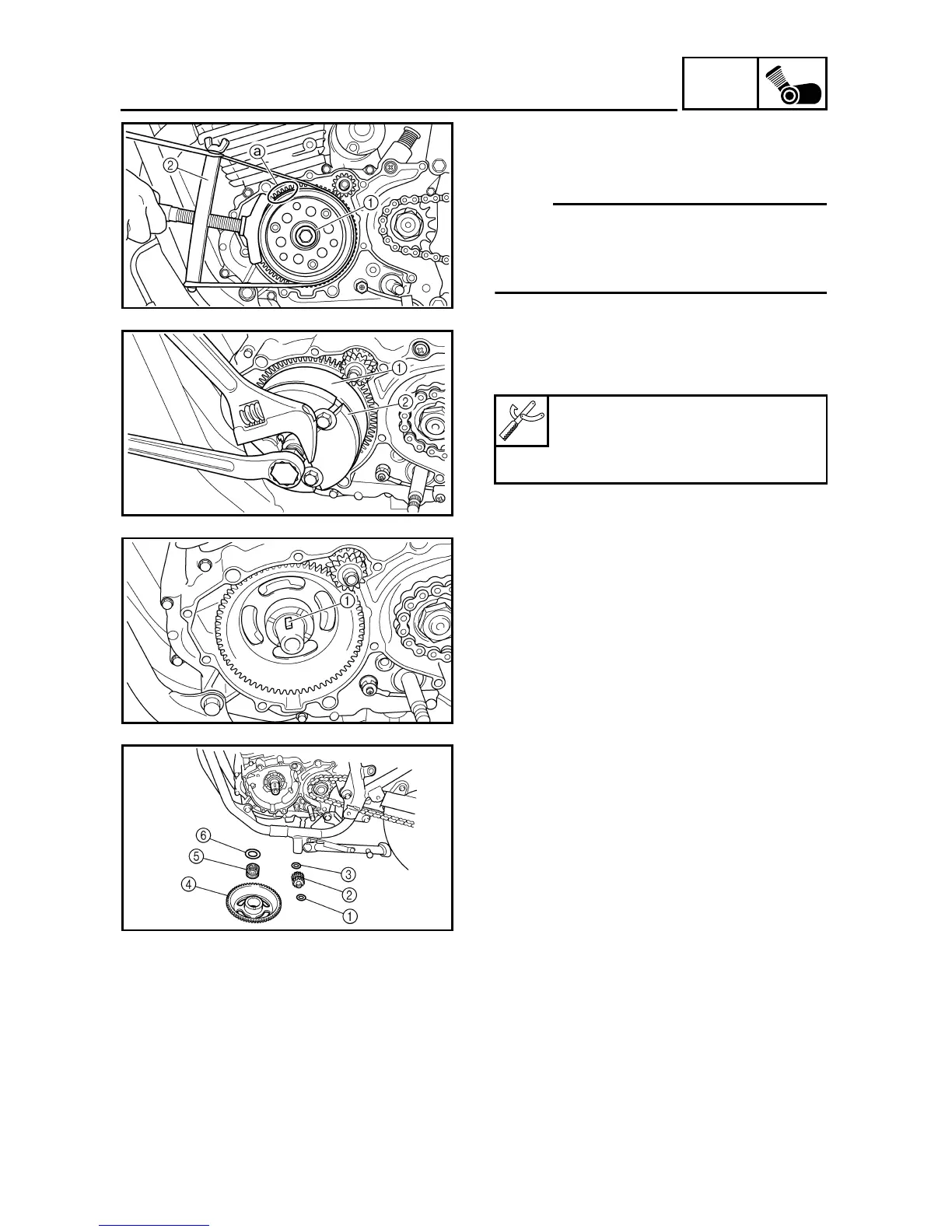

GENERATOR ROTOR REMOVAL
1.Remove:
●
Bolt
1
NOTE:
●
Do not touch the projection
a
when install-
ing the sheave holder.
●
Loosen the nut while holding the generator
rotor with sheave holder
2
.
2.Remove:
●
Generator rotor
1
Use a flywheel puller
2
Sheave holder:
90890-01701
Flywheel puller:
90890-01362
3.Remove
●
Woodruff key
1
4.Remove:
●
Washer
1
●
Starter clutch idle gear #2
2
●
Washer
3
●
Starter clutch gear
4
●
Bearing
5
●
Washer
6
