2 - 17
SPEC

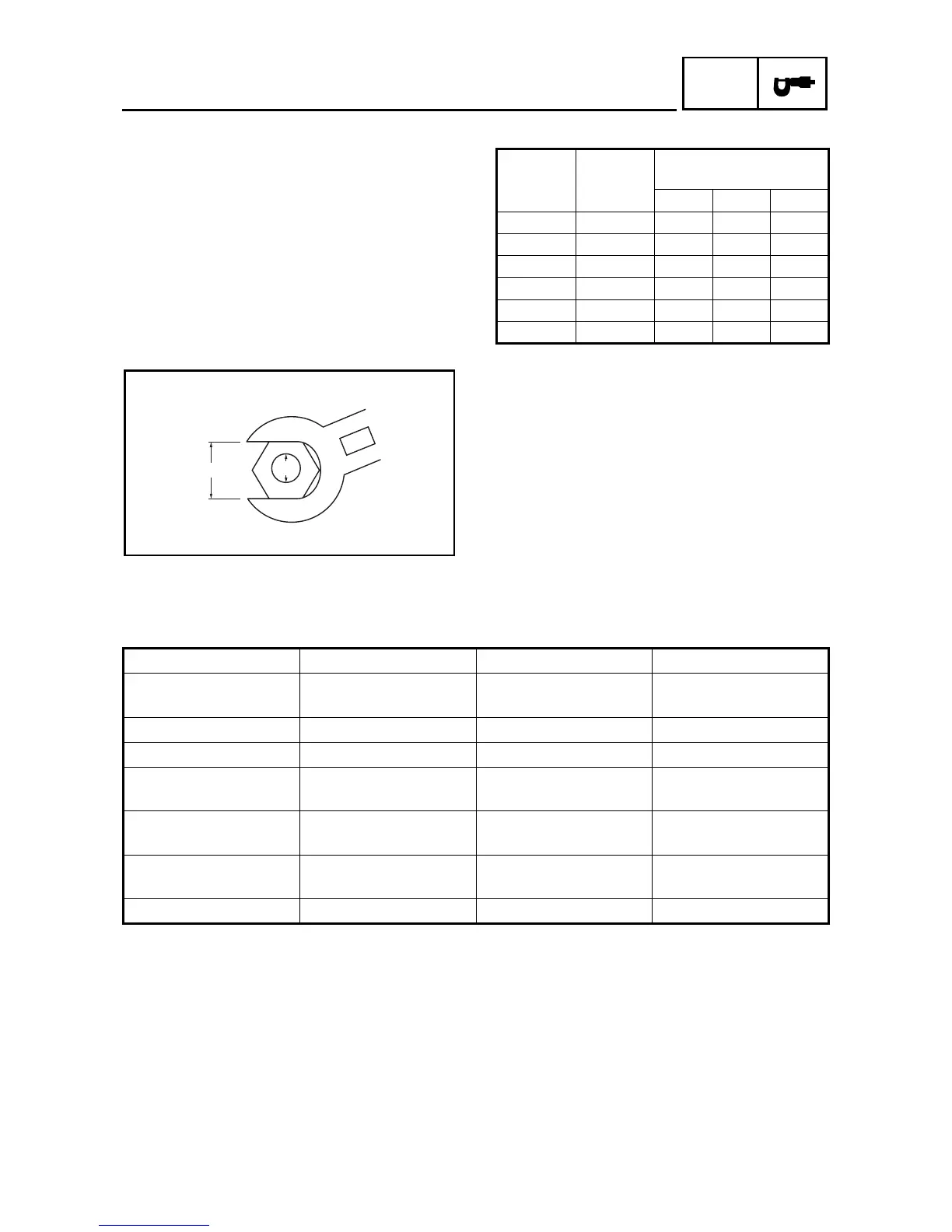

GENERAL TORQUE SPECIFICATIONS
This chart specifies torque for standard fasten-
ers with standard I.S.O. pitch threads.
Torque specifications for special components
or assemblies are included in the applicable
sections of this book. To avoid warpage, tighten
multifastener assemblies in a crisscross fash-
ion, in progressive stages, until full torque is
reached. Unless otherwise specified, torque
specifications call for clean, dry threads. Com-
ponents should be at room temperature.
A:
Distance across flats
B: Outside thread diameter
DEFINITION OF UNITS
A
B
A
(Nut)
B
(Bolt)
General torque
specifications
Nm m·kg ft·lb
10 mm 6 mm 6 0.6 4.3
12 mm 8 mm 15 1.5 11
14 mm 10 mm 30 3.0 22
17 mm 12 mm 55 5.5 40
19 mm 14 mm 85 8.5 61
22 mm 16 mm 130 13.0 94
Unit Read Definition Measure
mm
cm
millimeter
centimeter
10
-3
meter
10
-2
meter
Length
Length
kg kilogram 10
3
gram Weight
N Newton 1 kg
×
m/sec
2
Force
Nm
m • kg
Newton meter
Meter kilogram
N
×
m
m
×
kg
Torque
Torque
Pa
N/mn
Pascal
Newton per millimeter
N/m
2
N/mn
Pressure
Spring rate
L
cm
3
Liter
Cubic centimeter
– Volume or capacity
r/min Rotation per minute – Engine speed
GENERAL TORQUE SPECIFICATIONS/
DEFINITION OF UNITS
