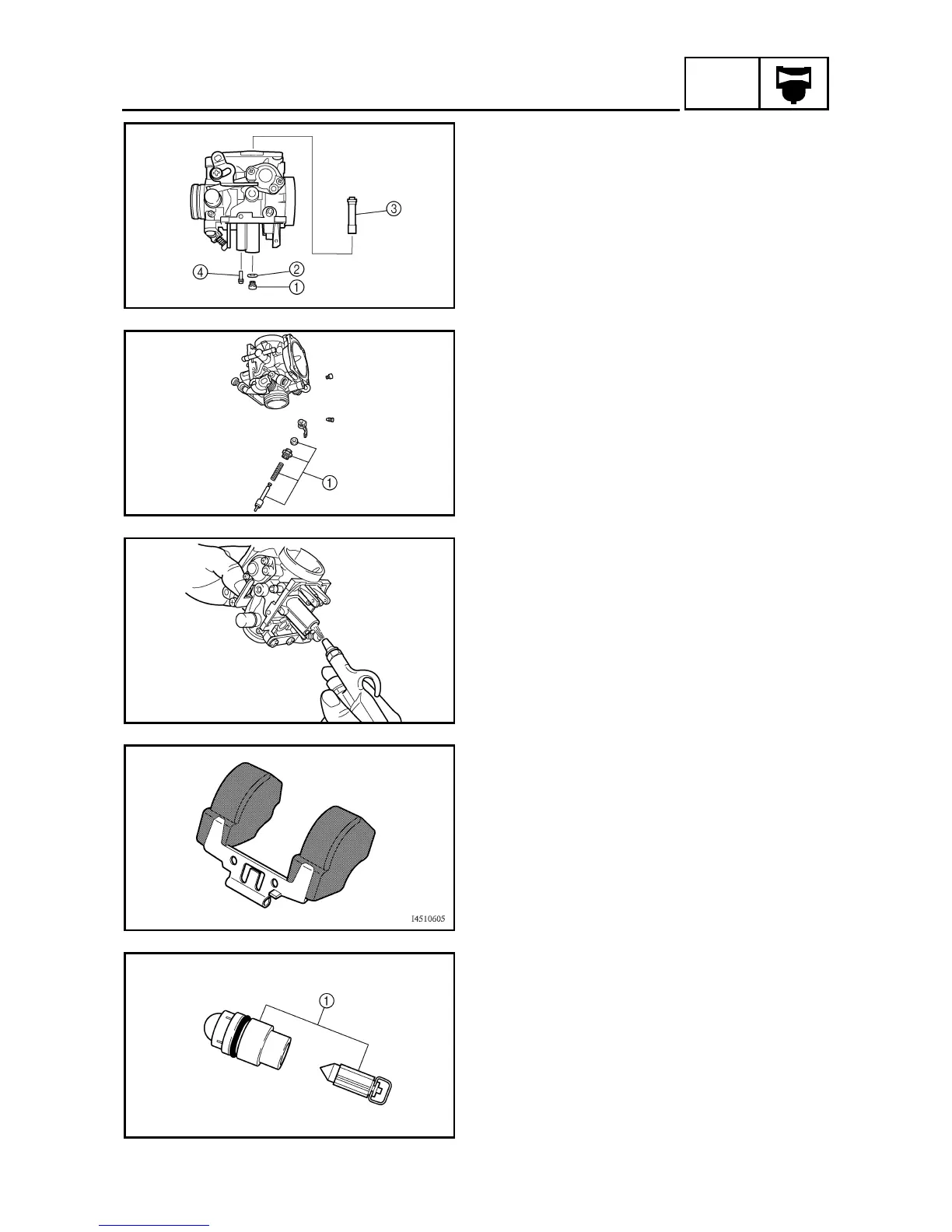

Yamaha Scorpio - CARBURETOR INSPECTION

CARB
5 - 5
CARBURETOR
8.Remove:
●
Main jet
1
●
Washer
2
●
Needle jet
3
●
Pilot jet
4
9.Remove:
●
Starter plunger assembly
1
INSPECTION
1.Inspect:
●
Carburetor body
●
Fuel passage
Contamination
→
Clean as indicated.
*****************************************************
Carburetor cleaning steps:
●
Wash carburetor in petroleum based solvent.
(Do not use any caustic carburetor cleaning
solution.)
●
Blow out all passages and jets with a com-
pressed air.
*****************************************************
2.Inspect:
●
Float
Damage
→
Replace.
3.Inspect:
●
Needle valve assembly
1
Damage/wear/contamination
→
Replace as
a set.
