Yamaha Scorpio - Headlight Beam Adjustment; Headlight Bulb Replacement

3 - 32
INSP
ADJ

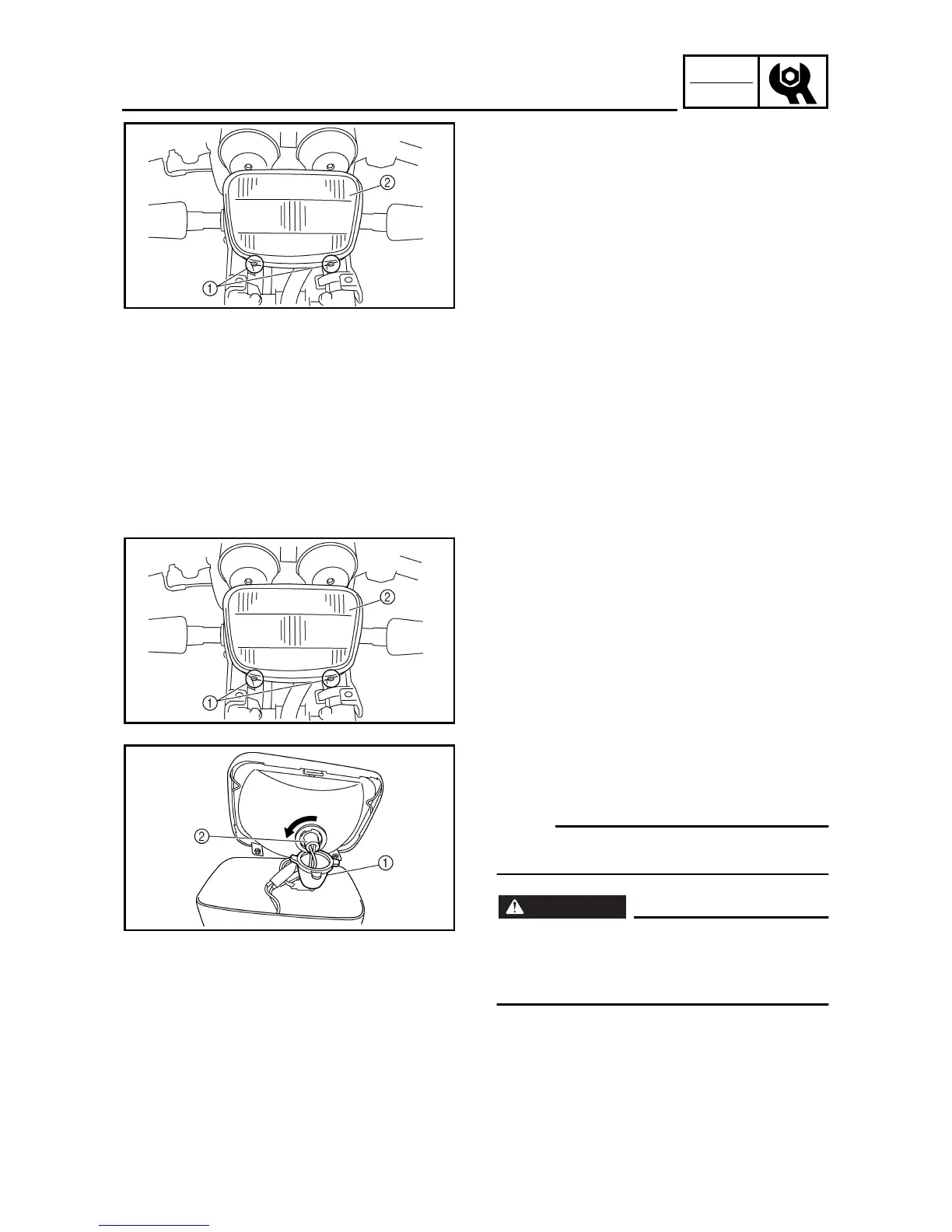

HEADLIGHT BEAM ADJUSTMENT/
HEADLIGHT BULB REPLACEMENT
HEADLIGHT BEAM ADJUSTMENT
1.Remove:
●
Holding screw
1
●
Headlight unit
2
2.Adjust:
●
Headlight beam (vertical)
*****************************************************
Headlight beam adjustment steps:
●
Loosen the bolt (headlight body).
●
Position the headlight body up or down to
adjust the headlight beam.
*****************************************************
3.Install:
●
Headlight unit
HEADLIGHT BULB REPLACEMENT
1.Remove:
●
Holding screw
1
●
Headlight unit
2
2.Remove:
●
Cover
1
●
Bulb (defective)
N
OTE:
Turn the bulb holder
2
counterclockwise to
remove the bulb.
WARNING
Keep flammable products and your hands
away from the bulb while it is on, it will be
hot. Do not touch the bulb until it cools
down.
