Yamaha Scorpio - Transmission Inspection

4 - 65
ENG

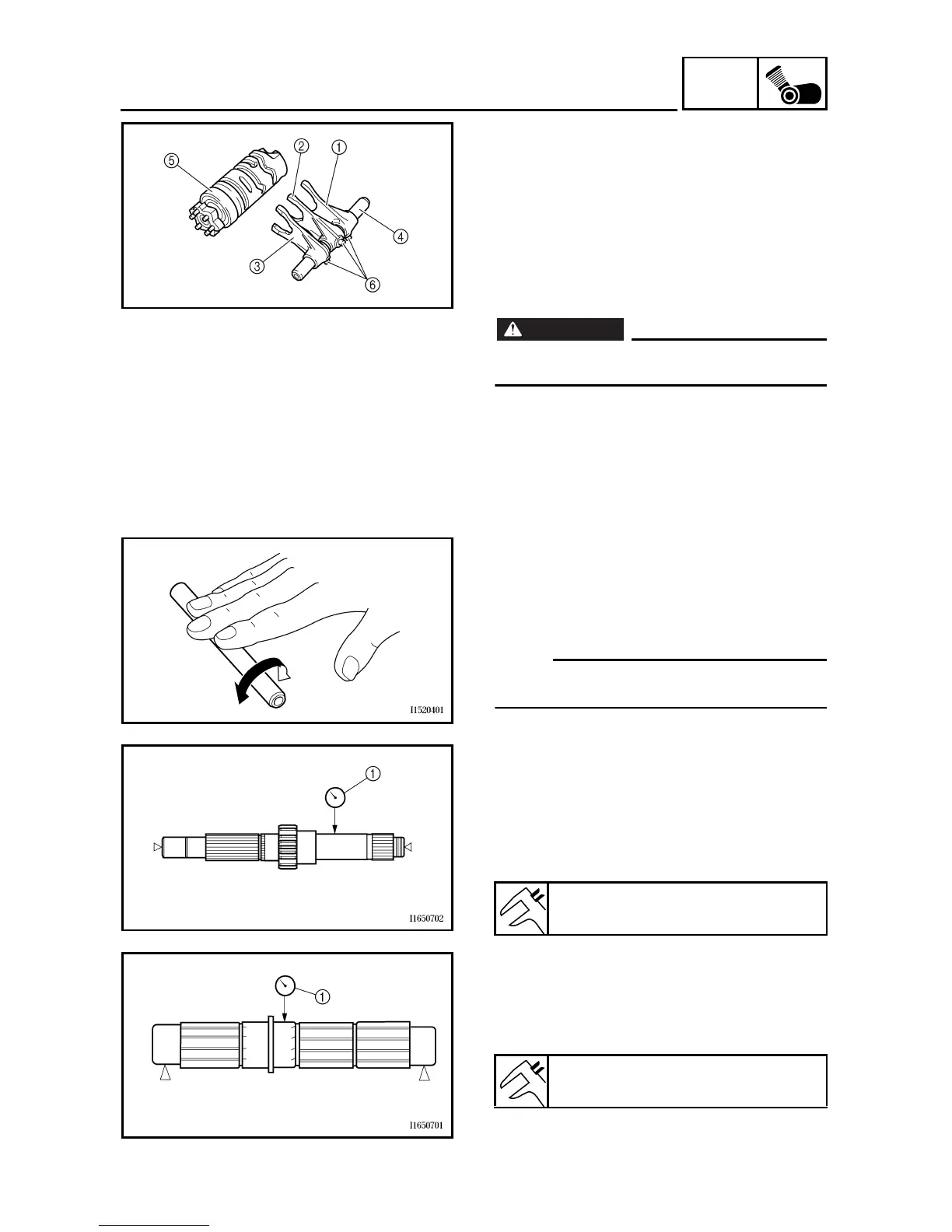

TRANSMISSION
3.Inspect:
●
Shift fork “L”
1
●
Shift fork “C”
2
●
Shift fork “R”
3
●
Shift fork guide bar
4
●
Shift drum assembly
5
●
Pin
6
Roll the shift fork guide bar on a flat surface.
Bends
→
Replace.
WARNING
Do not attempt to straighten a bent shift
fork guide bar.
4.Check:
●
Shift fork movement
(along the shift fork guide bar)
Unsmooth operation
→
Replace the shift fork
and the shift fork guide bar.
NOTE:
When damaged the shift fork and mission
gear, replace the facing each gear as set.
EAS00424
TRANSMISSION INSPECTION
1.Measure:
●
Main axle runout
(with a centering device and dial gauge
1
)
Out of specification
→
Replace the main
axle.
2.Measure:
●
Drive axle runout
(with a centering device and dial gauge
1
)
Out of specification
→
Replace the drive
axle.
Main axle runout limit
0.08 mm
Drive axle runout limit
0.08 mm
