Yamaha Scorpio - CARBURETOR ASSEMBLY

5 - 7
CARB
CARBURETOR
ASSEMBLY
To assemble the carburetor reverse the disas-
sembly procedures. Note the following points.
N
OTE:
●
Before reassembling wash all parts in clean
gasoline.
●
Always use a new gasket.

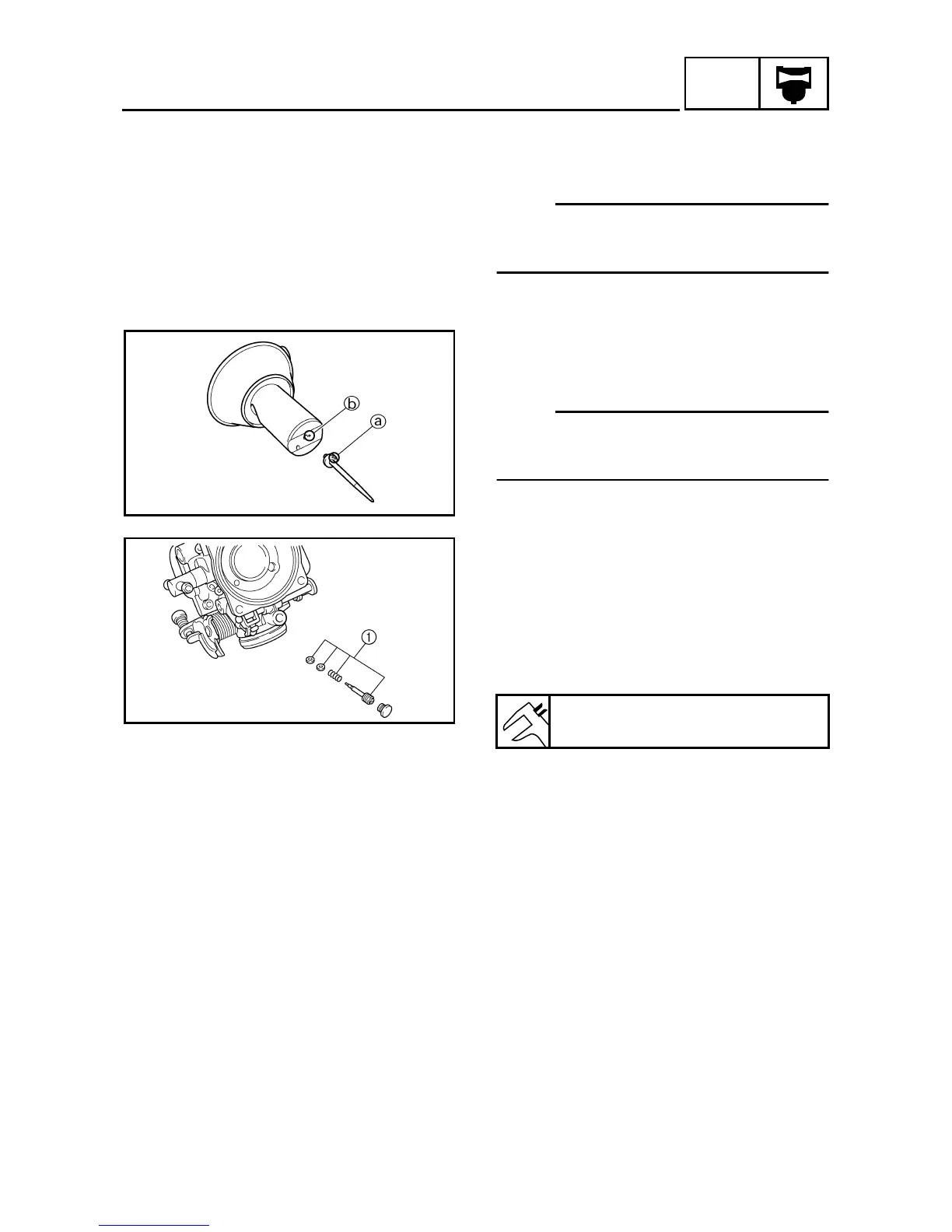

1.Install:
●
Jet needle set
To piston valve assembly
N
OTE:
Be sure to install the jet needle plate so that
the projection
a
is located toward the hole
b
in the piston valve.
2.Install:
●
Pilot screw set
1
*****************************************************
Note the following installation points:
●
Screw in the pilot screw
4
until it is lightly
seated.
●
Back out by the specified number of turns.
*****************************************************
Pilot screw (turn out):
2-1/2
