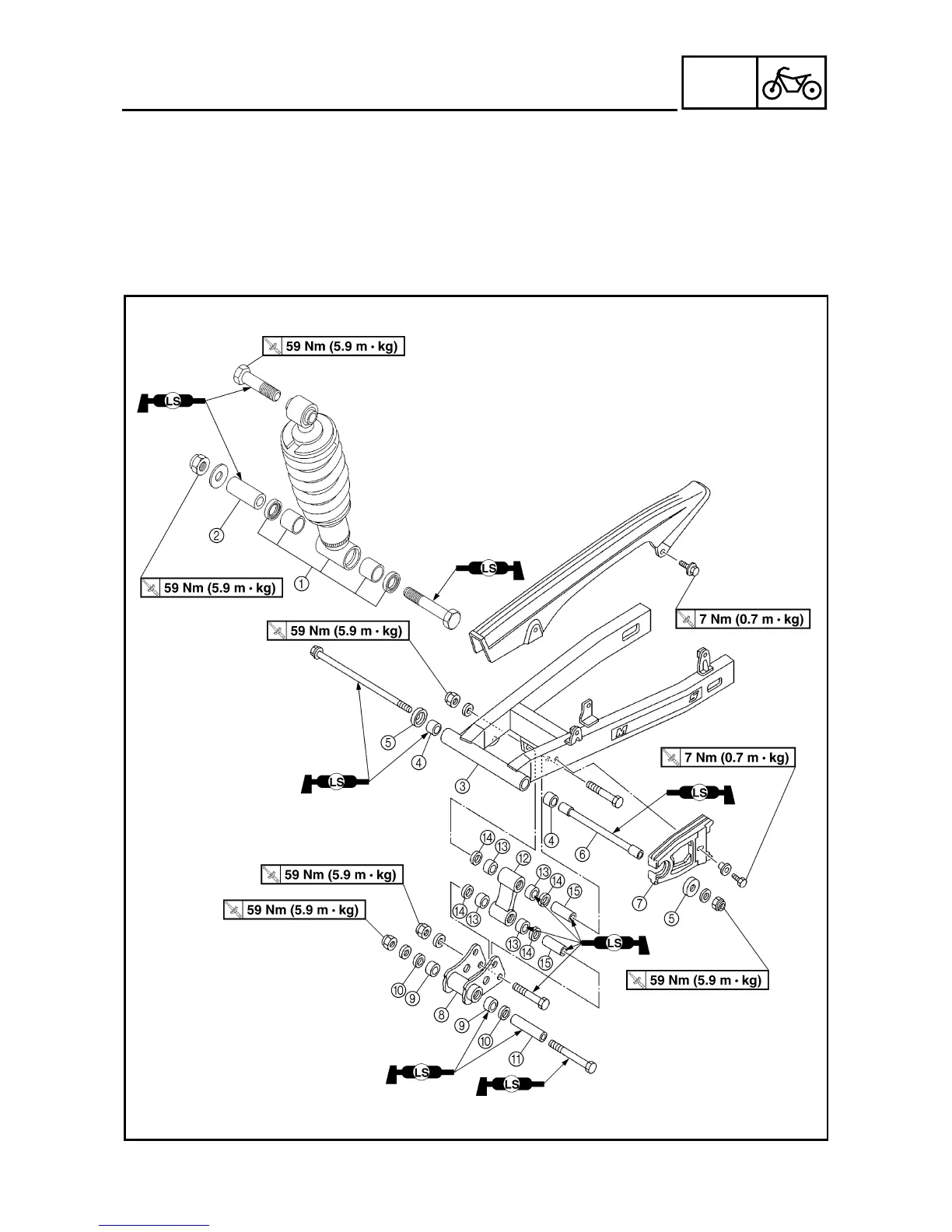

REAR SHOCK ABSORBER AND SWINGARM
REAR SHOCK ABSORBER AND SWINGARM
1
Rear shock absorber
2
Bush
3
Swingarm
4
Bearing
5
Dust cover
6
Bush
7
Drive chain guide
8
Relay arm
9
Bush
0
Oil seal
A
Collar
B
Connecting arm
C
Bush
D
Oil seal
E
Collar
