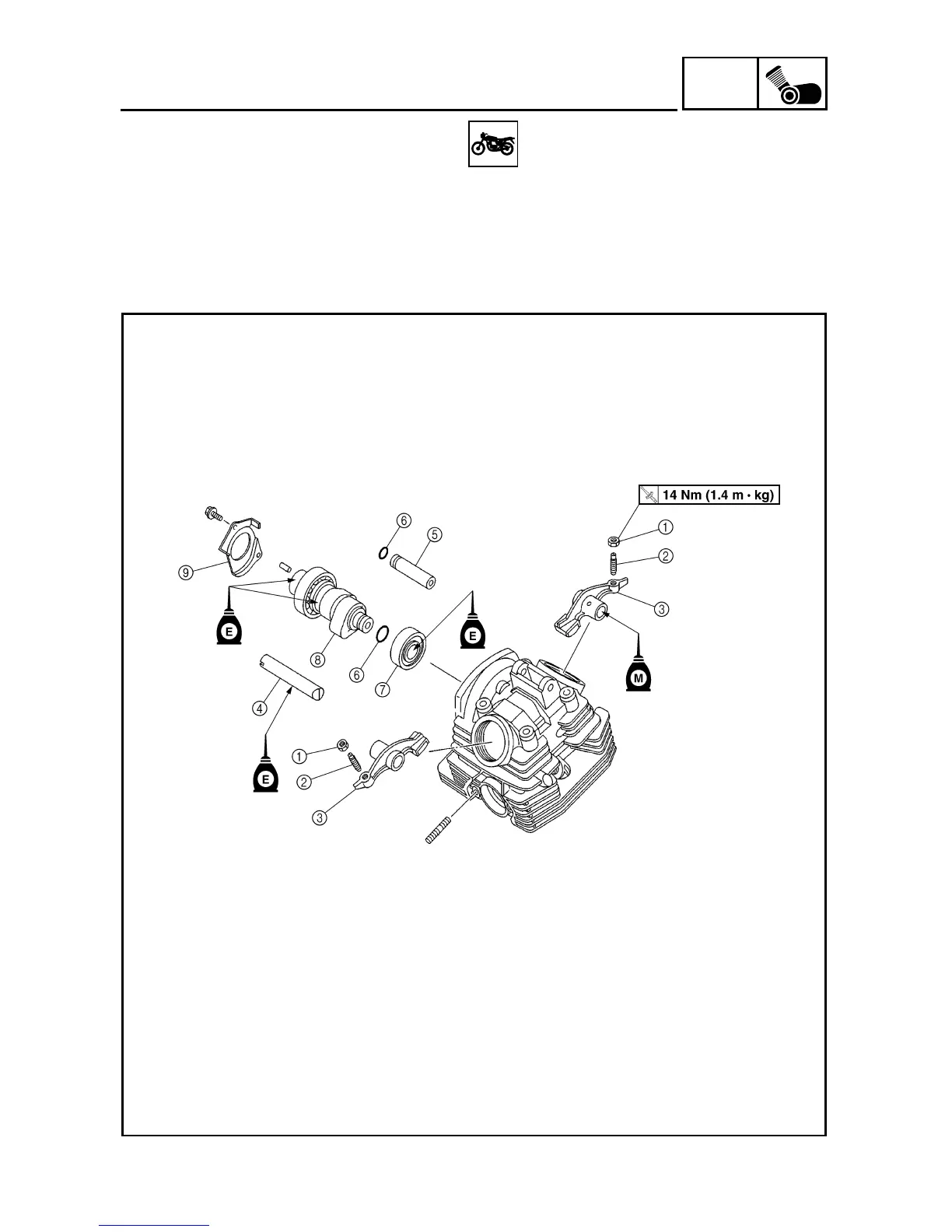

CAMSHAFT AND ROCKER ARMS
CAMSHAFT AND ROCKER ARMS
1
Locknut
2
Valve adjuster
3
Rocker arm
4
Rocker arm shaft (exhaust)
5
Rocker arm shaft (intake)
6
O-ring
7
Bearing
8
Camshaft
9
Plate
