Yamaha Scorpio - Page 92

4 - 15
ENG
CYLINDER HEAD
***********************************************

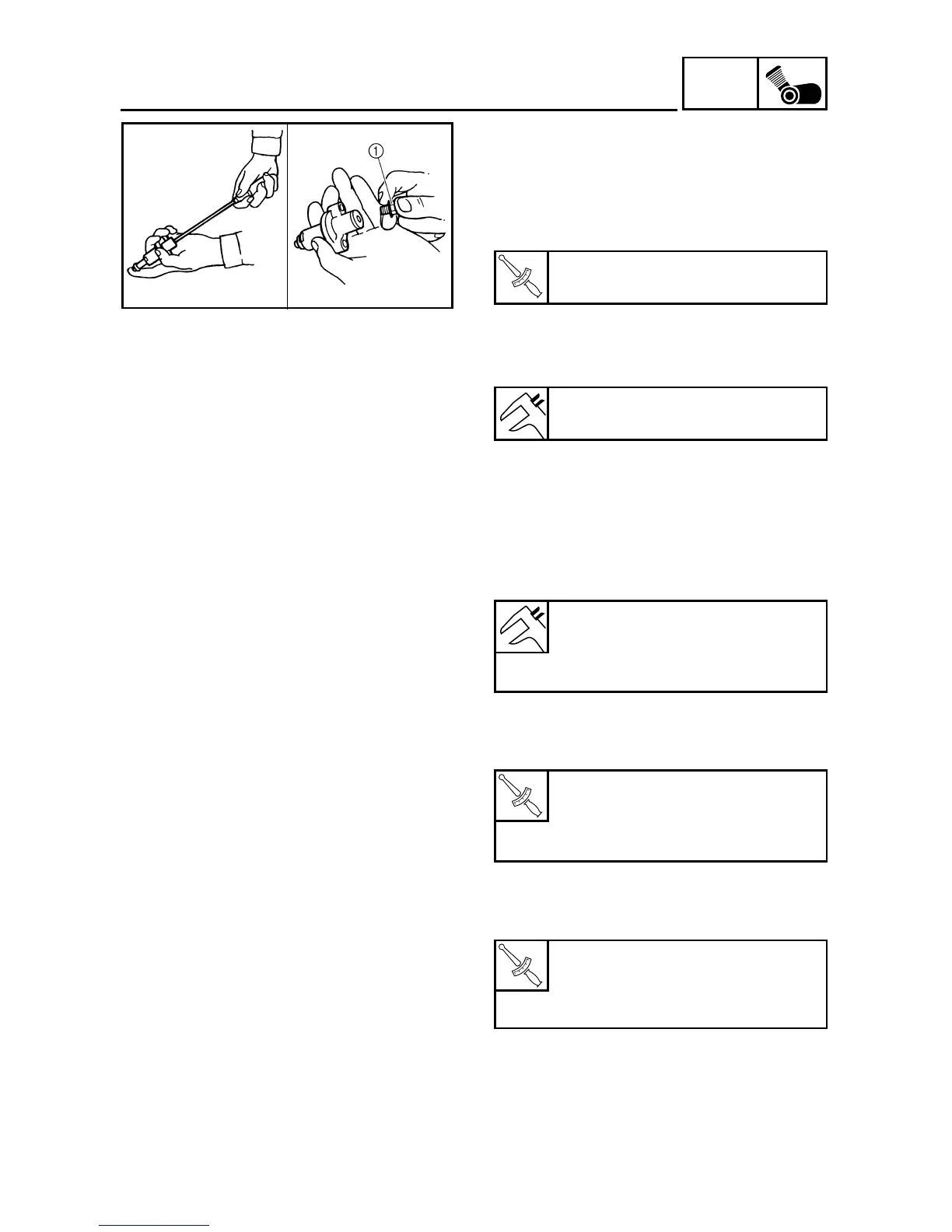

Timing chain tension installation steps:
●
Turn the stopper clockwise.
●
Hold the stopper with the bolt
1
.
●
Install the tensioner with a new gasket into
the cylinder.
***********************************************
4.Tighten:
●
Bolt (camshaft sprocket)
5.Check:
●
Alignment marks
If the marks do not align
→
Adjust.
6.Adjust:
●
Valve clearance
Refer to the “VALVE CLEARANCE ADJUST-
MENT” section in CHAPTER 3.
7.Install:
●
Tappet cover
●
Camshaft sprocket cover
8.Install:
●
Spark plug
●
Carburetor joint
T
R
.
.
Bolt (tensioner-cylinder):
10 Nm (1.0 m
•
kg)
Bolt (camshaft sprocket):
60 Nm (6.0 m
•
kg)
Intake valve (cold):
0.05 ~ 0.10 mm
Exhaust valve (cold):
0.10 ~ 0.15 mm
T
R
.
.
Tappet cover:
18 Nm (1.8 m
•
kg)
Camshaft sprocket cover:
10 Nm (1.0 m
•
kg)
T
R
.
.
Spark plug:
18 Nm (1.8 m
•
kg)
Carburetor joint:
10 Nm (1.0 m
•
kg)
